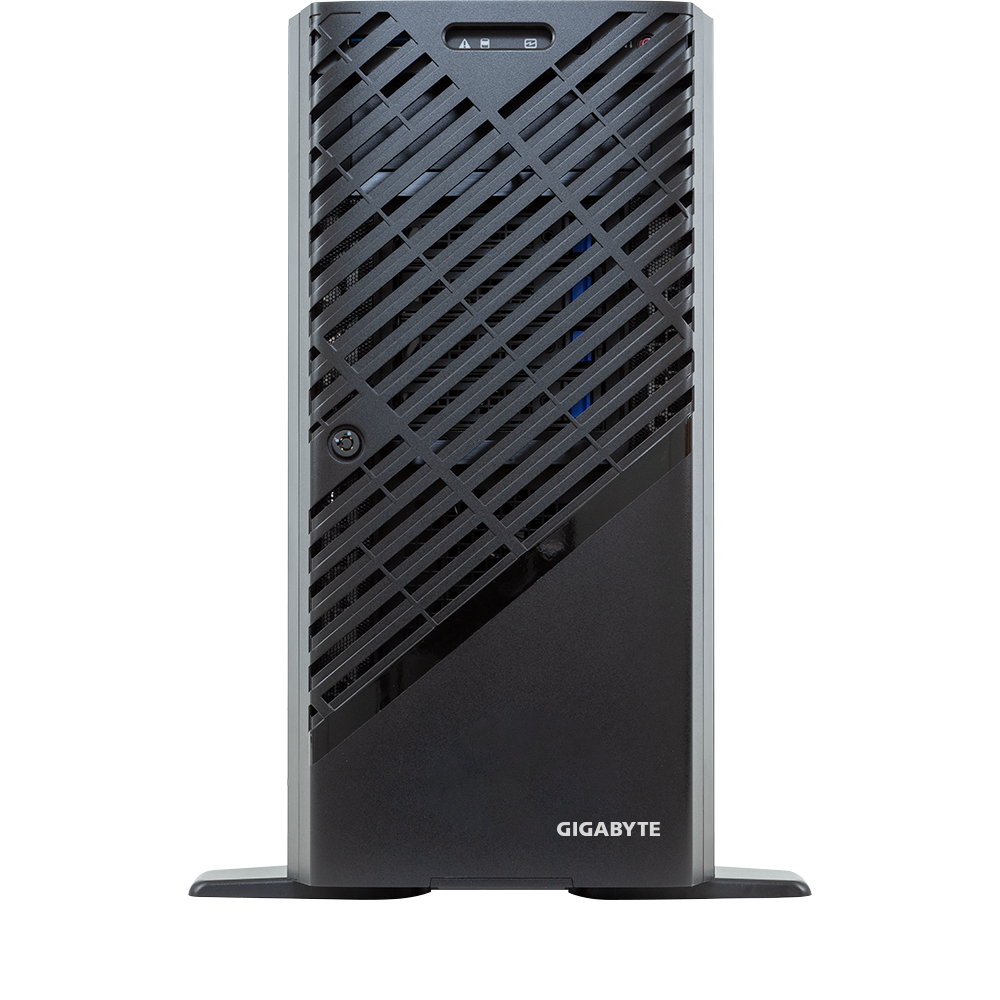

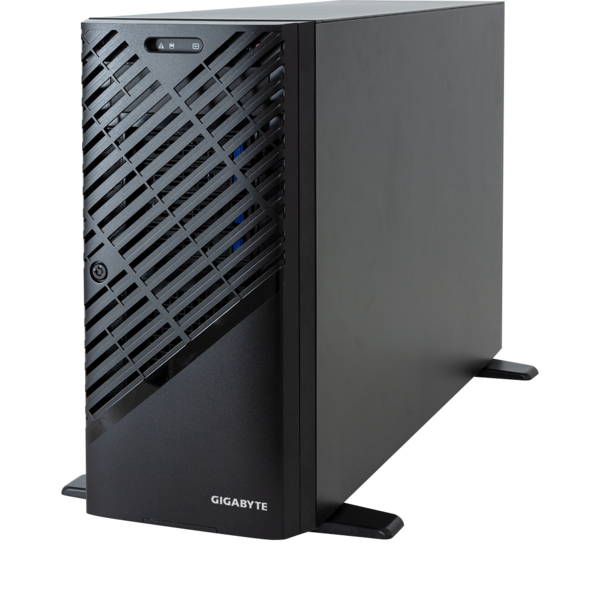

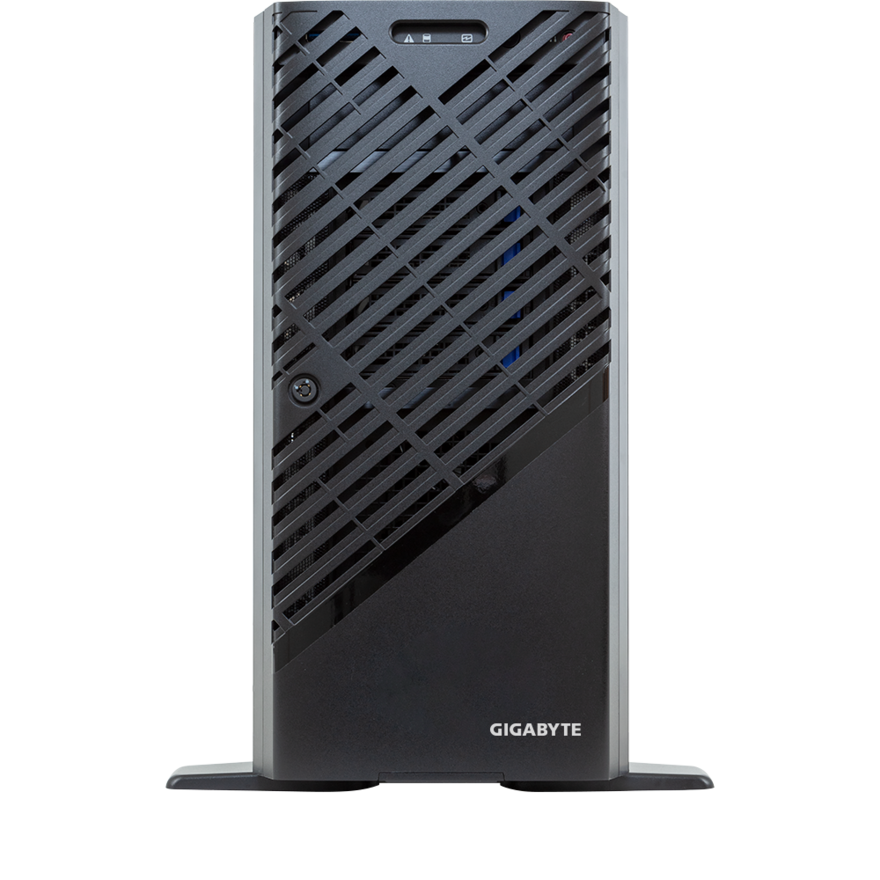

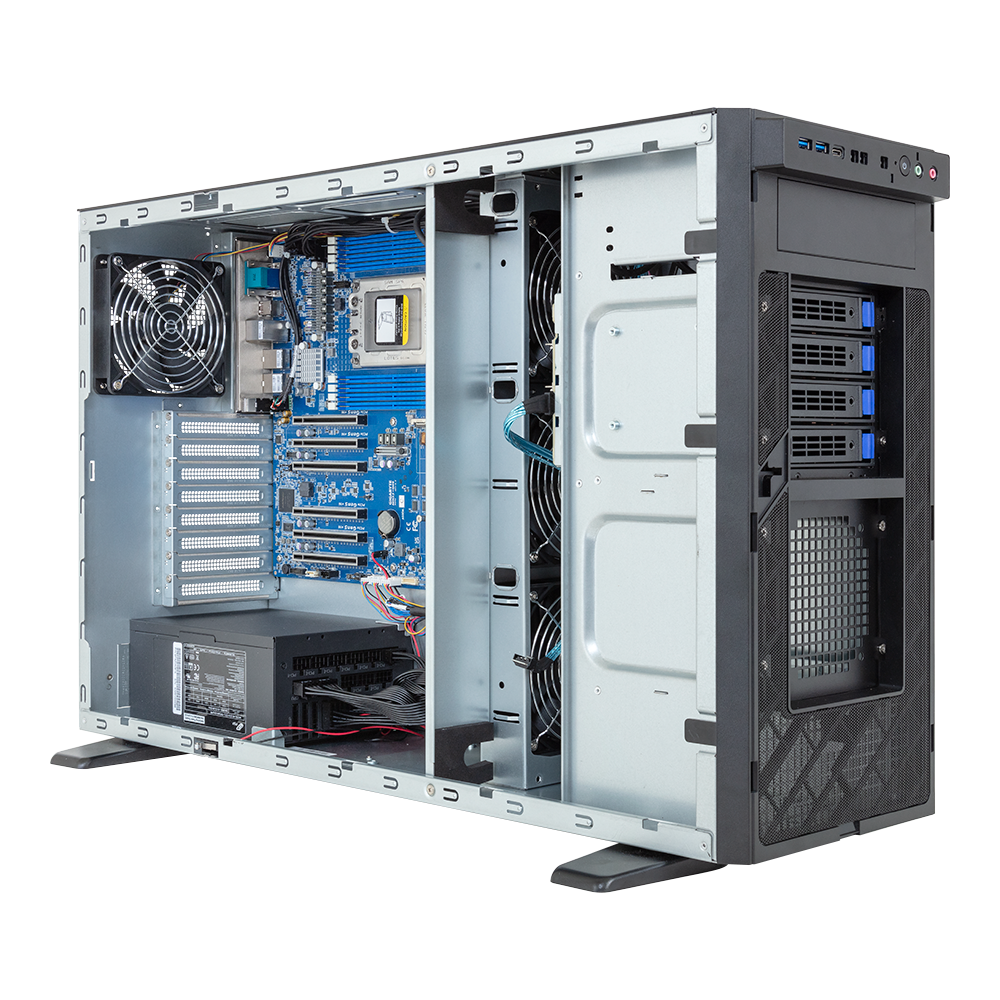

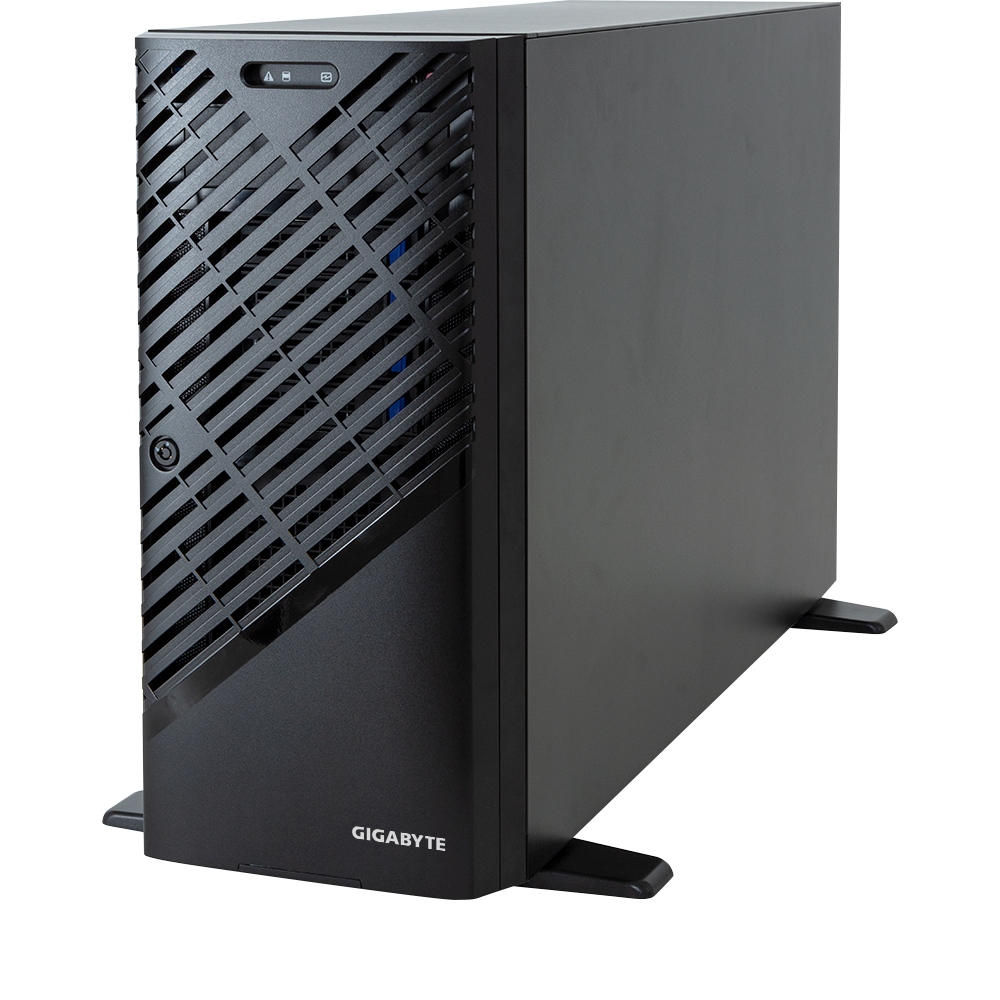

W773-H5D-AA01
GPU Workstation - AMD Ryzen™ Threadripper™ PRO 7000 WX
- Supports up to 4 x Dual slot Gen5 GPUs
- Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- 8-Channel DDR5 ECC RDIMM, 8 x DIMMs
- AMD WRX90 Chipset
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 4 x M.2 slots with PCIe Gen5 x4 interface
- Up to 8 x 3.5"/2.5" SATA bays
- 6 x PCIe Gen5 x16 slots
- Single 2000W ATX 80 PLUS Gold power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
Pedestal
218 x 455 x 726.3
218 x 455 x 726.3

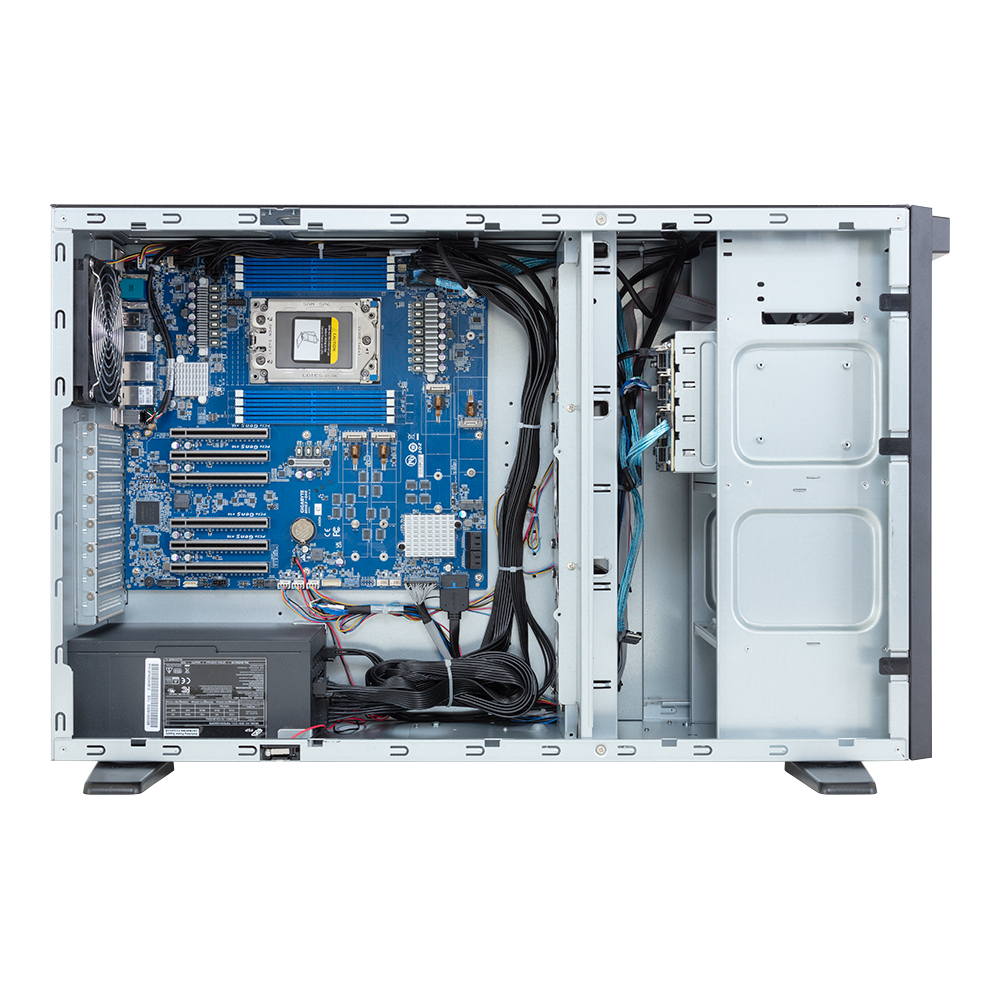

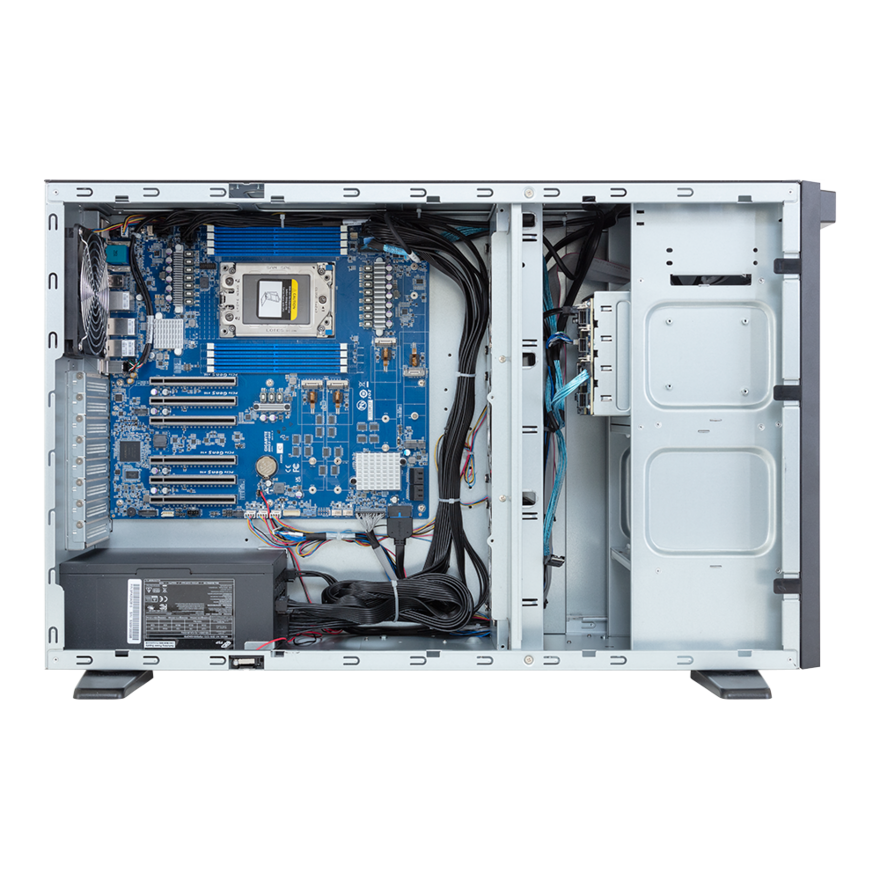

Motherboard
MH53-G40
CPU
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
Up to 96 cores, 192 threads
Single processor, TDP up to 350W
Up to 96 cores, 192 threads
Single processor, TDP up to 350W
Socket
1 x sTR5
Chipset
AMD WRX90
Memory
8 x DIMM slots
DDR5 memory supported only
8-channel memory architecture
ECC RDIMM/3DS RDIMM supported
Memory speed: Up to 5200 MT/s
DDR5 memory supported only
8-channel memory architecture
ECC RDIMM/3DS RDIMM supported
Memory speed: Up to 5200 MT/s
LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio jacks (Audio in/Audio out/Mic)
Front 2 x Audio jacks (Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio jacks (Audio in/Audio out/Mic)
Front 2 x Audio jacks (Audio out/Mic)
Storage
4 x 3.5"/2.5" SATA hot-swappable bays
Additional 4 x 3.5"/2.5" SATA hot-swappable bays (optional)
Note: Storage card is required to support NVMe and SAS drives.
Additional 4 x 3.5"/2.5" SATA hot-swappable bays (optional)
Note: Storage card is required to support NVMe and SAS drives.
RAID
RAID 0/1/10/5
Peripheral Drives
5.25" space reserved for ODD device
Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot
Slot_6: PCIe x16 (Gen5 x16) slot
Slot_5: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen5 x16) slot
Slot_2: PCIe x16 (Gen5 x16) slot
Slot_1: PCIe x16 (Gen5 x16) slot
4 x M.2 slots for storage:
- M-key
- PCIe Gen5 x4, from CPU
- Support 2280/22110 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from FCH
- Supports 2230 cards
Slot_6: PCIe x16 (Gen5 x16) slot
Slot_5: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen5 x16) slot
Slot_2: PCIe x16 (Gen5 x16) slot
Slot_1: PCIe x16 (Gen5 x16) slot
4 x M.2 slots for storage:
- M-key
- PCIe Gen5 x4, from CPU
- Support 2280/22110 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from FCH
- Supports 2230 cards
Internal I/O
1 x TPM header

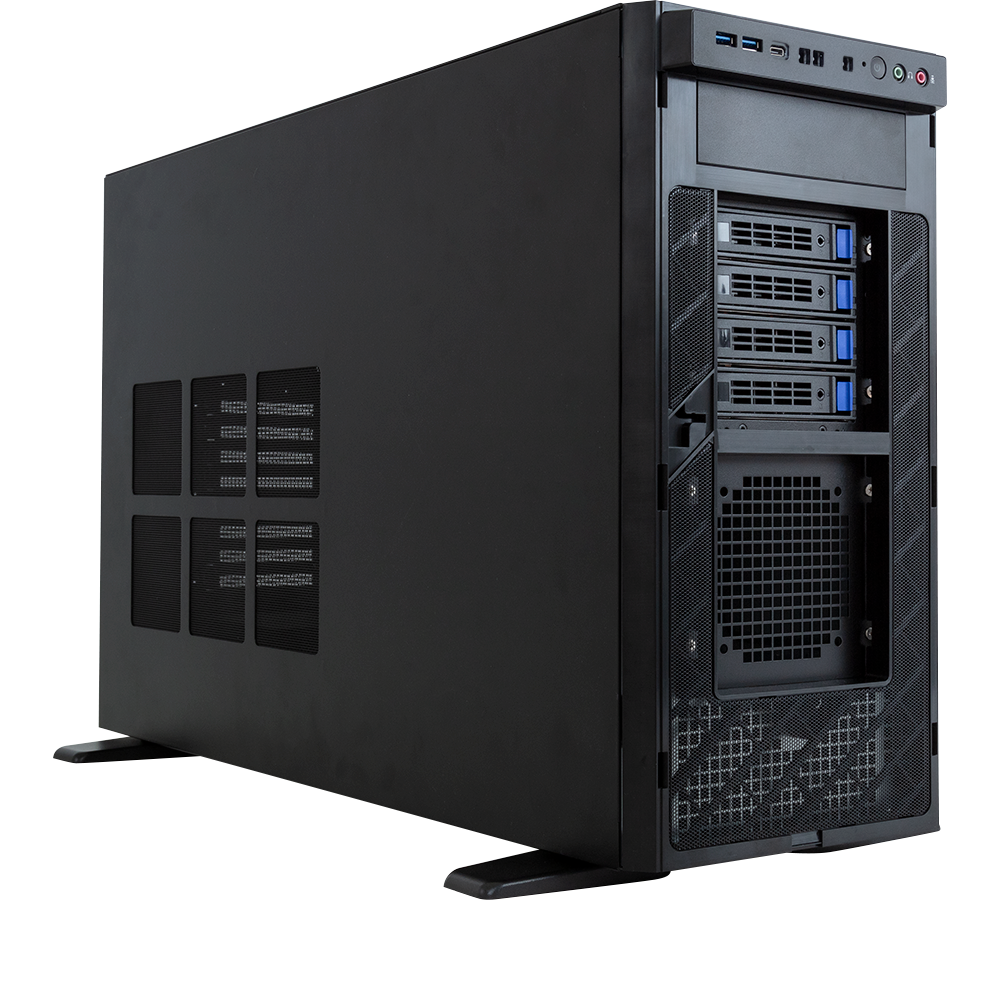

Front I/O
1 x USB 3.2 Gen1 (Type-C)
2 x USB 3.2 Gen1 (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
2 x USB 3.2 Gen1 (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED

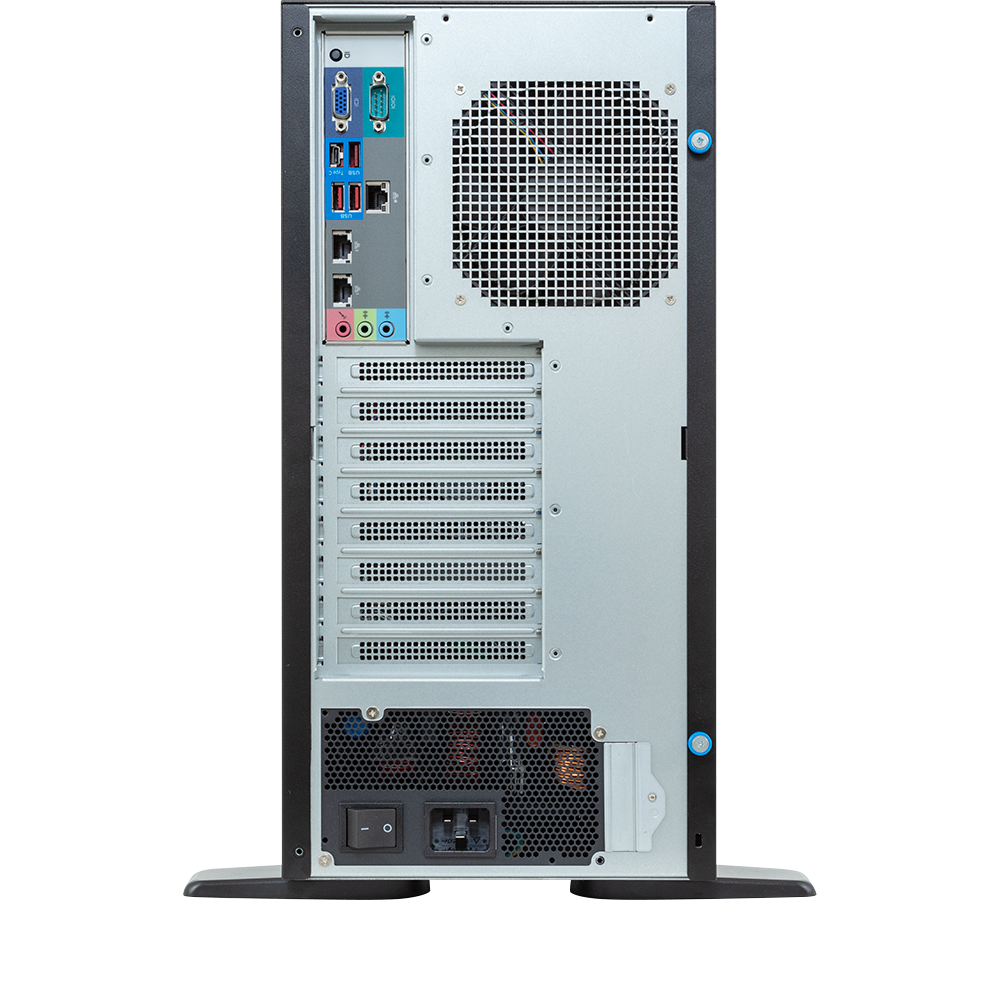

Rear I/O
1 x USB 3.2 Gen2x2 (Type-C) (from FCH)
3 x USB 3.2 Gen2 (Type-A) (from CPU)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
3 x USB 3.2 Gen2 (Type-A) (from CPU)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Single 2000W ATX 80 PLUS Gold power supply
AC Input:
- 100-115V/ 13A, 50-60Hz, 1200W
- 115-200V/ 15A, 50-60Hz, 1500W
- 200-240V/ 12A, 50-60Hz, 2000W
DC Output:
- Max 1200W/ 100-115V~
+12V/ 100A
+5Vsb/ 4A
- Max 1500W/ 115-200V~
+12V/ 125A
+5Vsb/ 4A
- Max 2000W/ 200-240V~
+12V/ 166.7A
+5Vsb/ 4A
Note: The system power supply requires C19 power cord.
Note: 220-240V AC input is recommended for optimized user experience.
AC Input:
- 100-115V/ 13A, 50-60Hz, 1200W
- 115-200V/ 15A, 50-60Hz, 1500W
- 200-240V/ 12A, 50-60Hz, 2000W
DC Output:
- Max 1200W/ 100-115V~
+12V/ 100A
+5Vsb/ 4A
- Max 1500W/ 115-200V~
+12V/ 125A
+5Vsb/ 4A
- Max 2000W/ 200-240V~
+12V/ 166.7A
+5Vsb/ 4A
Note: The system power supply requires C19 power cord.
Note: 220-240V AC input is recommended for optimized user experience.
System Management
ASPEED® AST2600 Management Controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux (x86_64)
Ubuntu (x86_64)
Windows 11 (x64)
Ubuntu (x86_64)
Windows 11 (x64)
System Fans
Middle fan: 3 x 120x120x38mm (6,400rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1045 x 588 x 403 mm
Packaging Content
1 x W773-H5D-AA01
1 x CPU fansink
1 x CPU fansink
Part Numbers
- Barebone package: 6NW773H5DMR000AA01*
- Motherboard: 9MH53G40NR-000
- I/O shield: 12AIO-MW83RP-00R
- CPU fansink: 25ST0-0Z7020-A3R
- M.2 heatsink: 12SP2-11000E-00R
- Middle fan: 25ST2-123823-S0R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-22000I-F3S
Optional parts:
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
- I/O shield: 12AIO-MW83RP-00R
- CPU fansink: 25ST0-0Z7020-A3R
- M.2 heatsink: 12SP2-11000E-00R
- Middle fan: 25ST2-123823-S0R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-22000I-F3S
Optional parts:
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
