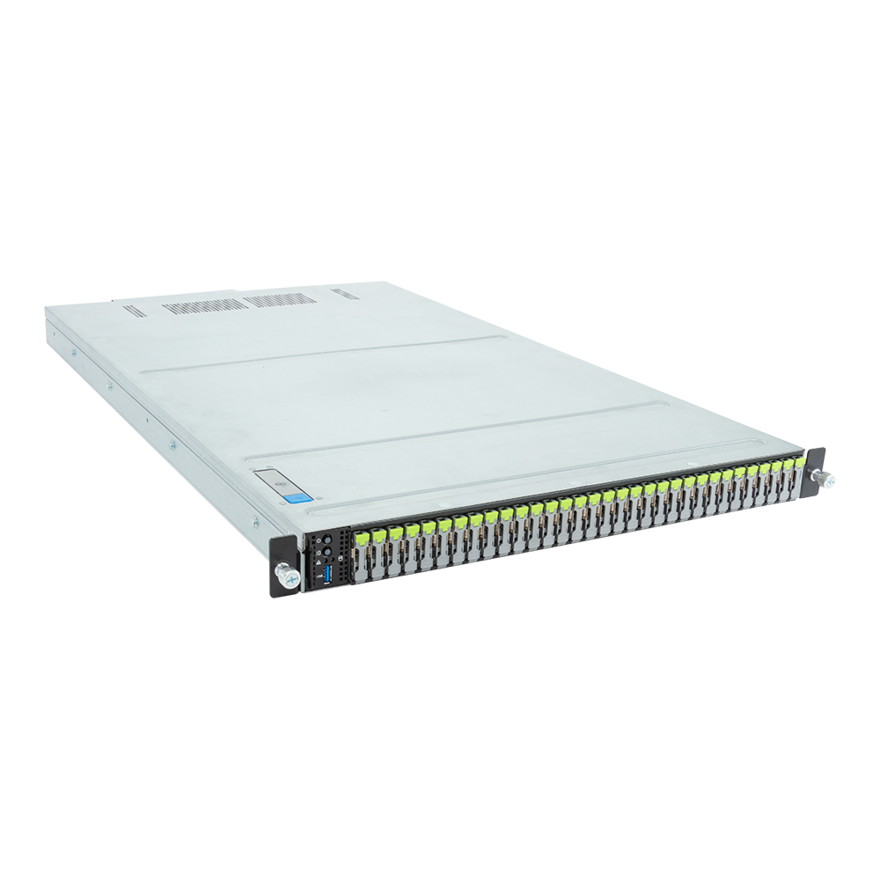

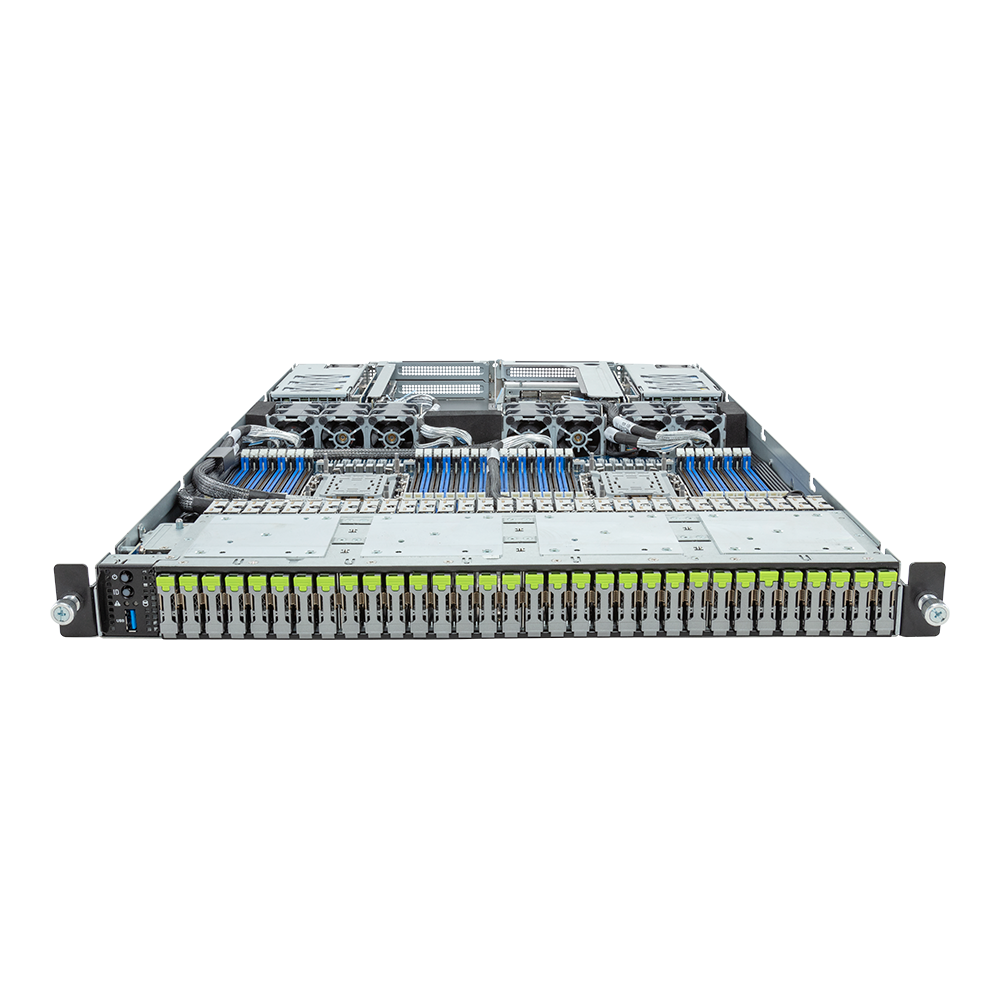

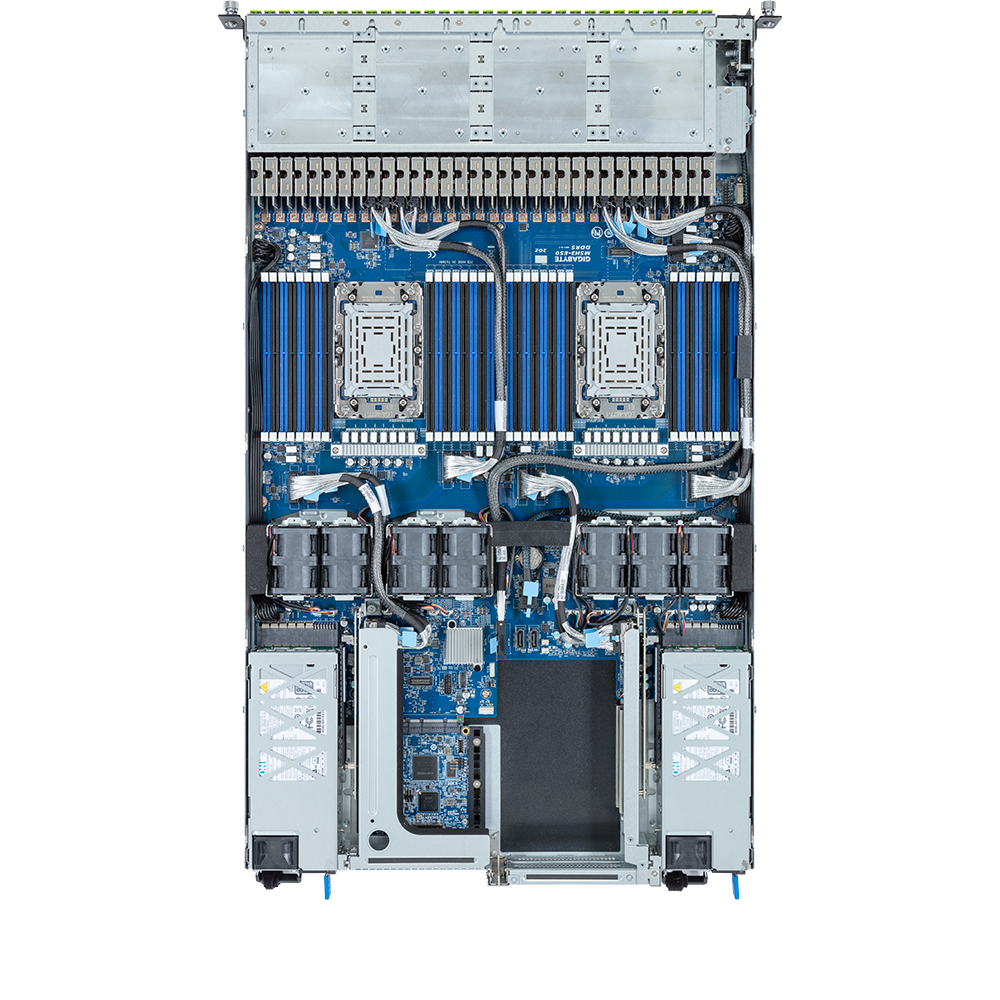

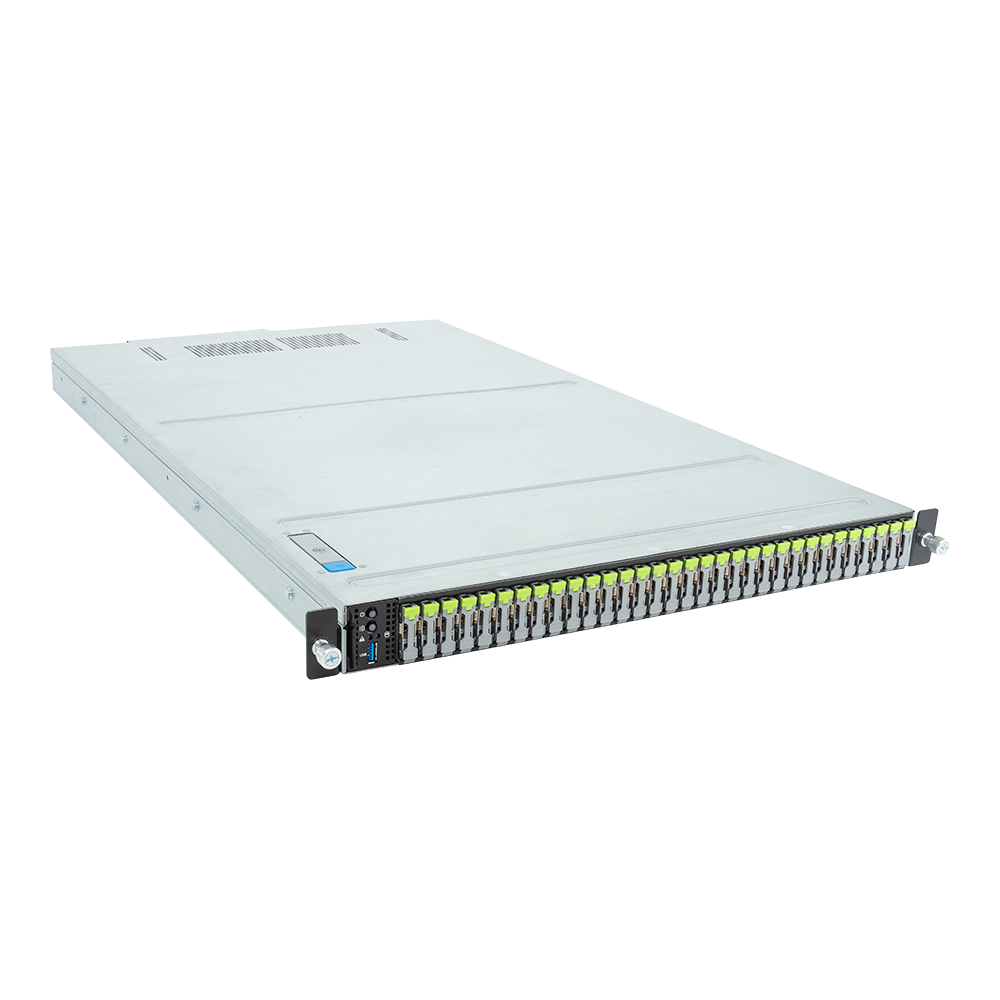

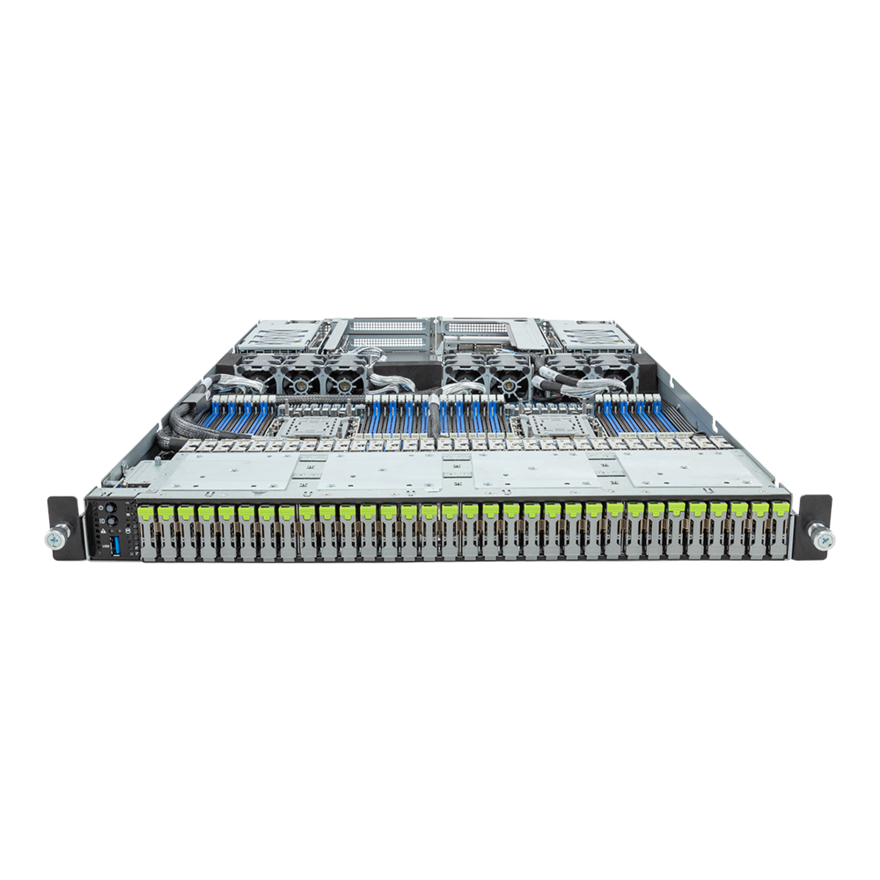

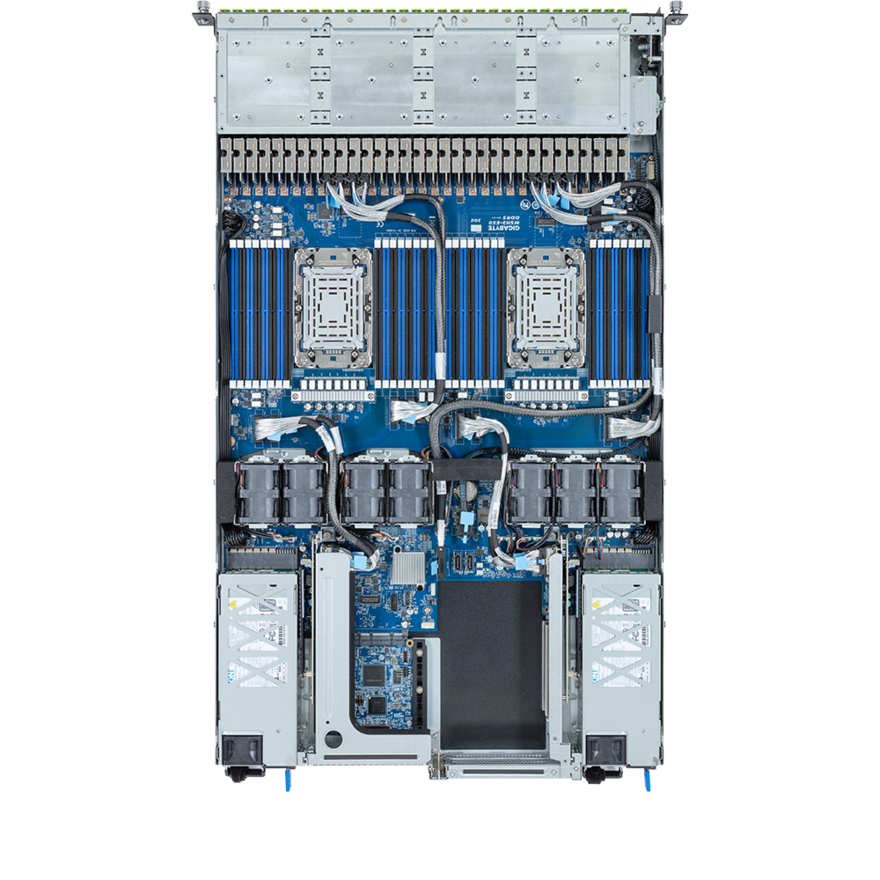

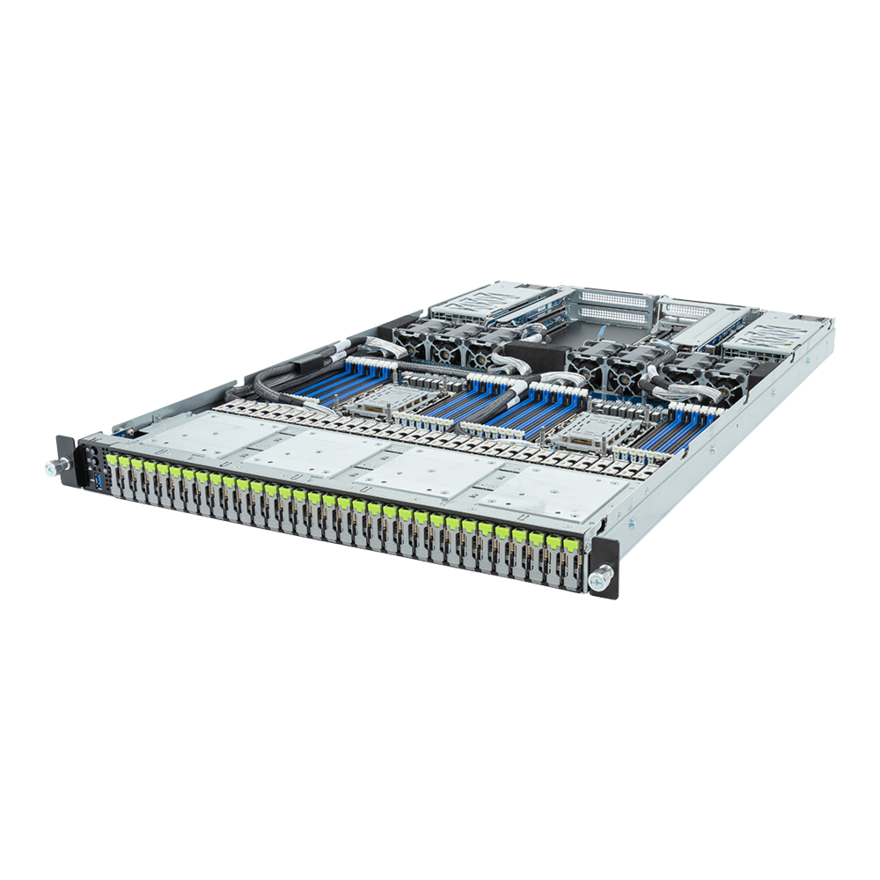

S183-SH0- AAV1
Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 1U DP 32-Bay E1.S NVMe 1600W
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 32 x E1.S NVMe hot-swappable bays
- 2 x M.2 slots with PCIe Gen3 x4 or SATA interface
- 3 x FHHL PCIe Gen5 x16 and x8 slots
- Compatible with SupremeRAID™ by Graid Technology
- Dual 1600W 80 PLUS Titanium redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730
Motherboard
MSH3-ES0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage

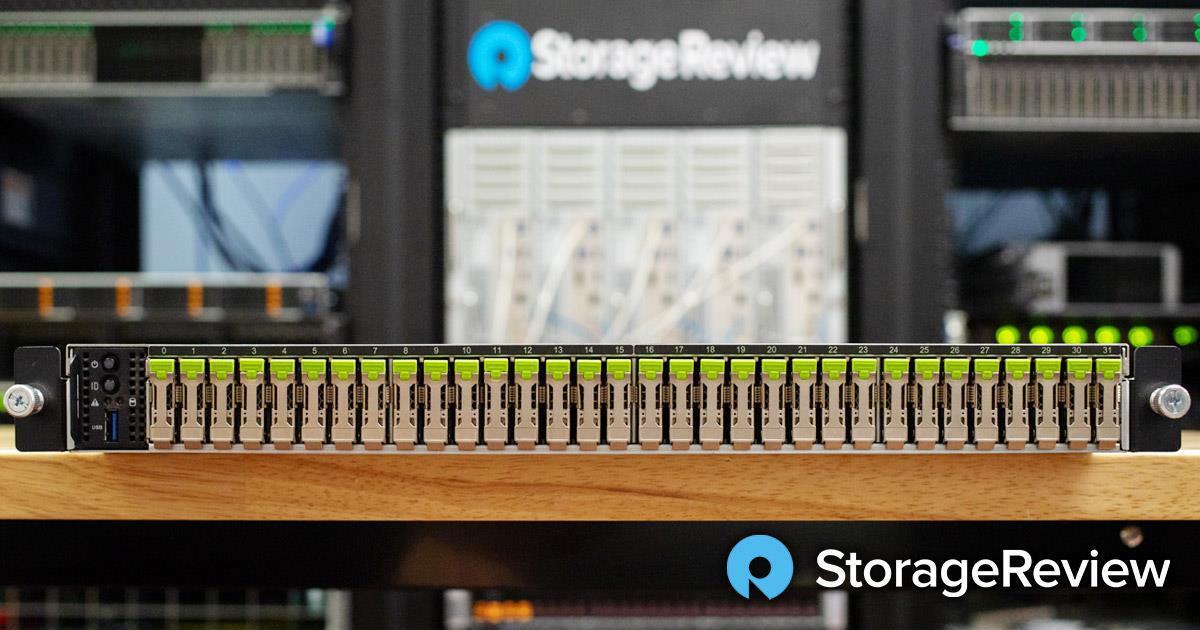

Front side:
32 x 9.5mm E1.S NVMe hot-swappable bays
- (16 x from CPU_0, 16 x from CPU_1)
32 x 9.5mm E1.S NVMe hot-swappable bays
- (16 x from CPU_0, 16 x from CPU_1)
SAS
N/A
RAID
Optional compatible RAID Cards:
NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-FD32, SR-1010-FD32
Support RAID 0/1/5/6/10
NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-FD32, SR-1010-FD32
Support RAID 0/1/5/6/10
Expansion Slots
Riser Card CRSD013:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
Riser Card CRSD022:
- 1 x PCIe x16 (Gen5 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x0 or x8) FHHL slot, from CPU_0
1 x M.2 slot (CMTP0C0):
- M-key
- PCIe Gen3 x4 or SATA, from PCH
- Supports 2280/22110 cards
1 x M.2 slot (CMTP0C1):
- M-key
- PCIe Gen3 x4 or SATA, from PCH
- Supports 2280/22110 cards
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
Riser Card CRSD022:
- 1 x PCIe x16 (Gen5 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x0 or x8) FHHL slot, from CPU_0
1 x M.2 slot (CMTP0C0):
- M-key
- PCIe Gen3 x4 or SATA, from PCH
- Supports 2280/22110 cards
1 x M.2 slot (CMTP0C1):
- M-key
- PCIe Gen3 x4 or SATA, from PCH
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
1 x VROC connector
2 x SATA connectors (for SATA DOM)
1 x VROC connector
2 x SATA connectors (for SATA DOM)
Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Storage activity LED
1 x System status LED

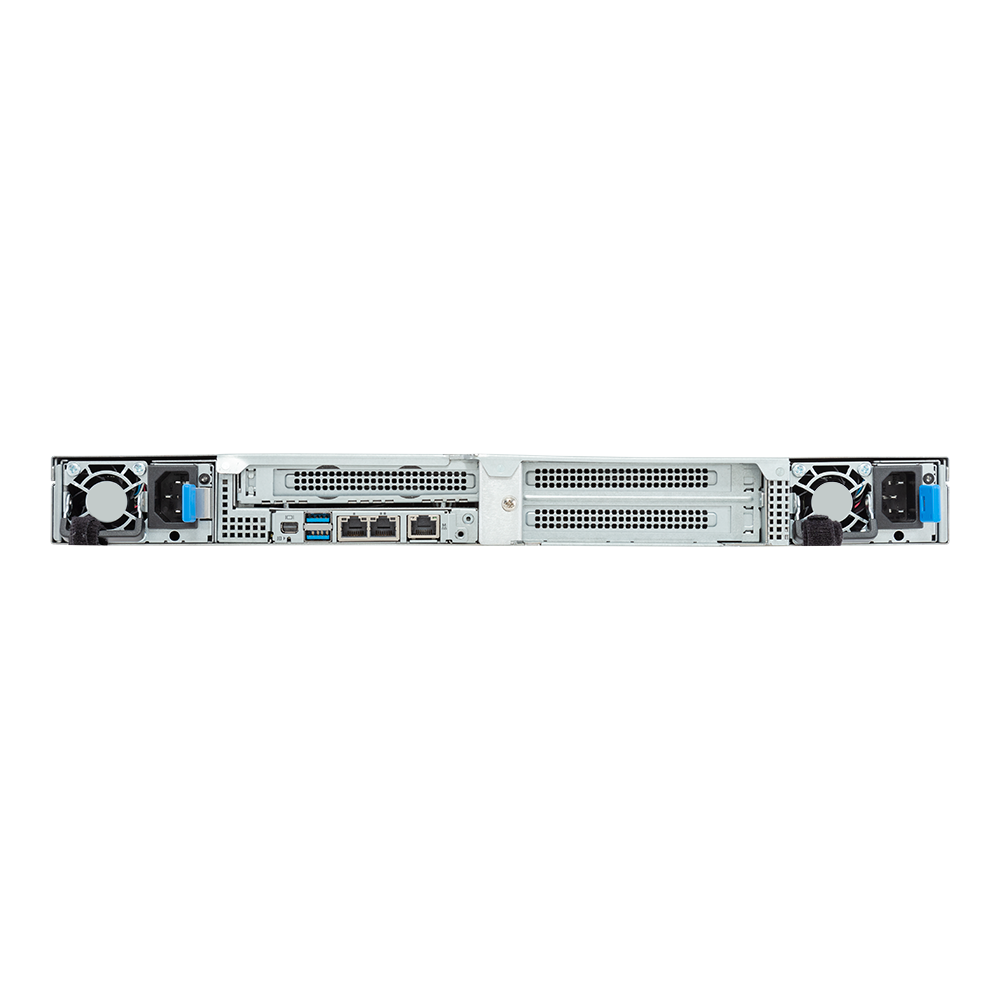

Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane Board
N/A
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Titanium redundant power supply
AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 9.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A
AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 9.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
System Fans
7 x 40x40x56mm (32,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x S183-SH0-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NS183SH0DR000ABV1*
- Barebone package (4th Gen): 6NS183SH0DR000AAV1*
- Motherboard: 9MSH3ES0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFPD040: 9CFPD040NR-00
- Fan module: 25ST2-40562H-A0R
- M.2 expansion card - CMTP0C0: 9CMTP0C0NR-00
- M.2 expansion card - CMTP0C1: 9CMTP0C1NR-00
- Riser card - CRSD013: 9CRSD013NR-00
- Riser card - CRSD022: 9CRSD022NR-00
- EDSFF bridge board - CBG060: 9CBG60NR-00
- EDSFF bridge board - CBG061: 9CBG61NR-00
- G-SCM board - CDCR112: 9CDCR112NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600E-L0S
Optional parts:
- RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS
- RAID card (SR-1010-FD32): 25FC1-SRBUN4-AFR
- 3-Section Rail kit (CMA supported): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NS183SH0SR-RMA-A100
- Barebone package (4th Gen): 6NS183SH0DR000AAV1*
- Motherboard: 9MSH3ES0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFPD040: 9CFPD040NR-00
- Fan module: 25ST2-40562H-A0R
- M.2 expansion card - CMTP0C0: 9CMTP0C0NR-00
- M.2 expansion card - CMTP0C1: 9CMTP0C1NR-00
- Riser card - CRSD013: 9CRSD013NR-00
- Riser card - CRSD022: 9CRSD022NR-00
- EDSFF bridge board - CBG060: 9CBG60NR-00
- EDSFF bridge board - CBG061: 9CBG61NR-00
- G-SCM board - CDCR112: 9CDCR112NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600E-L0S
Optional parts:
- RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS
- RAID card (SR-1010-FD32): 25FC1-SRBUN4-AFR
- 3-Section Rail kit (CMA supported): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NS183SH0SR-RMA-A100
