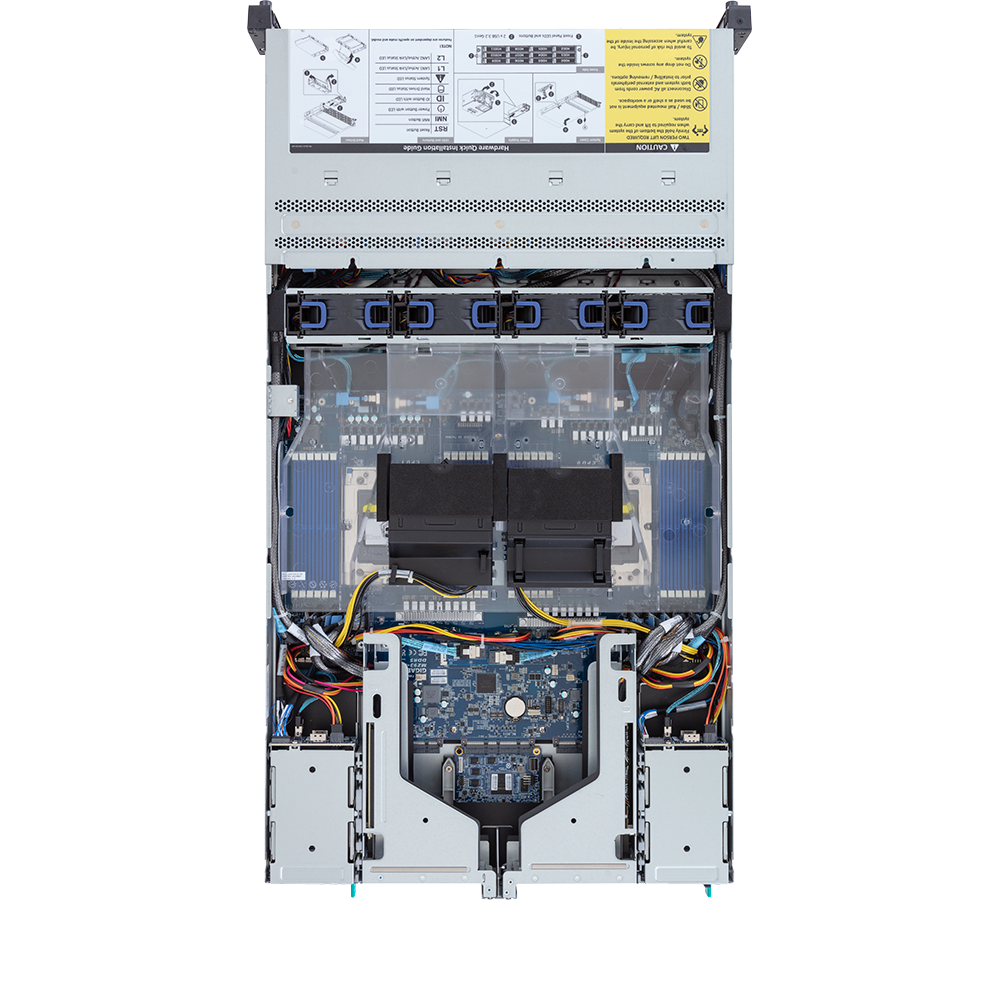

R283-Z97- AAL1
Rack Server - AMD EPYC™ 9004 - 2U DP 12+4-Bay Gen5 NVMe/SATA/SAS-4 2700W Titanium
- Supports up to 2 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- 4 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
- 4 x 2.5" SATA/SAS-4 hot-swappable bays on the rear side
- 2 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP 3.0 Gen5 x16 slots
- 1+1 2700W 80 PLUS Titanium redundant power supplies
Quick Shipping
Streamline the Process
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
438 x 87.5 x 815
Motherboard
MZ93-FS1
CPU
AMD EPYC™ 9004 Series Processors
Dual processor, 5nm technology
Up to 32 cores, 64 threads per processor
Supports cTDP up to 240W at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 5nm technology
Up to 32 cores, 64 threads per processor
Supports cTDP up to 240W at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage

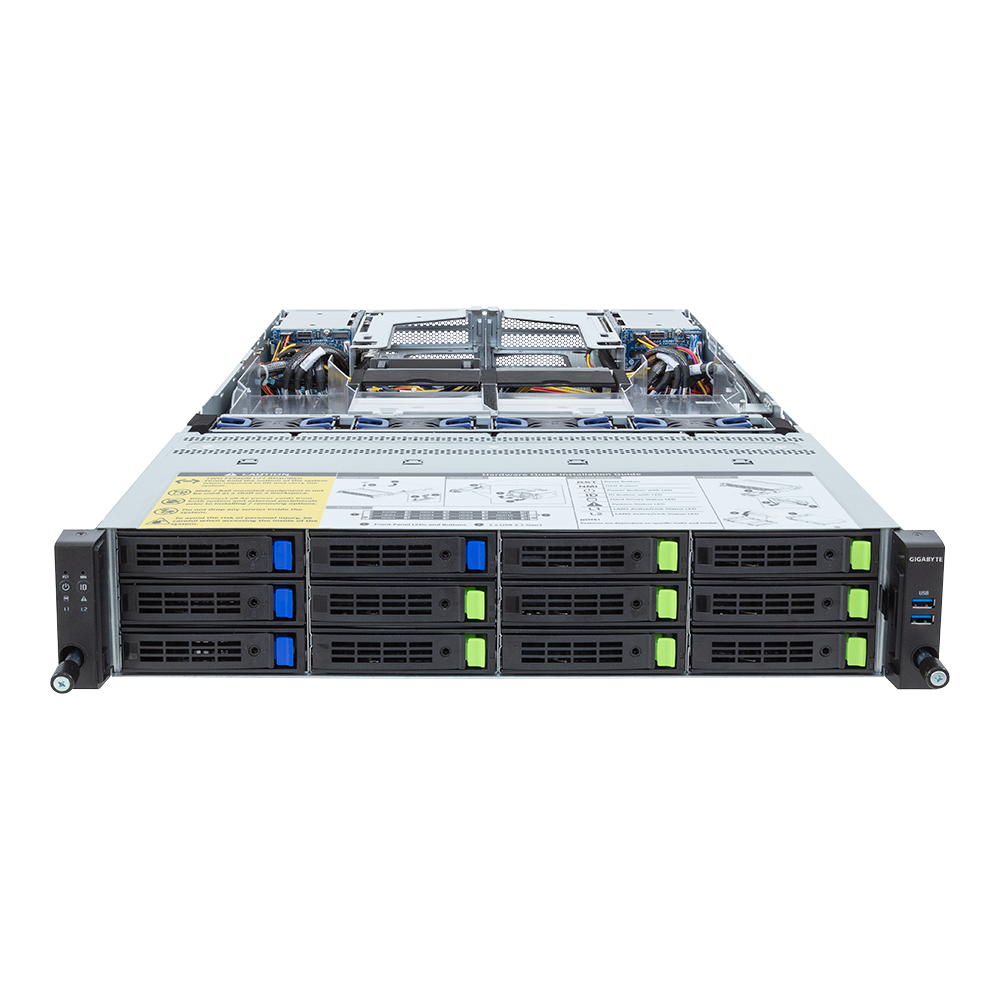

Front side:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
4 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Rear side:
4 x 2.5" SATA/SAS-4 hot-swappable bays, via CRS2810 from CPU_1
SAS card is required for SAS devices support
Note: SATA hotplug utility can be downloaded on support page.
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
4 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Rear side:
4 x 2.5" SATA/SAS-4 hot-swappable bays, via CRS2810 from CPU_1
SAS card is required for SAS devices support
Note: SATA hotplug utility can be downloaded on support page.
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
PCIe Cable x 4:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

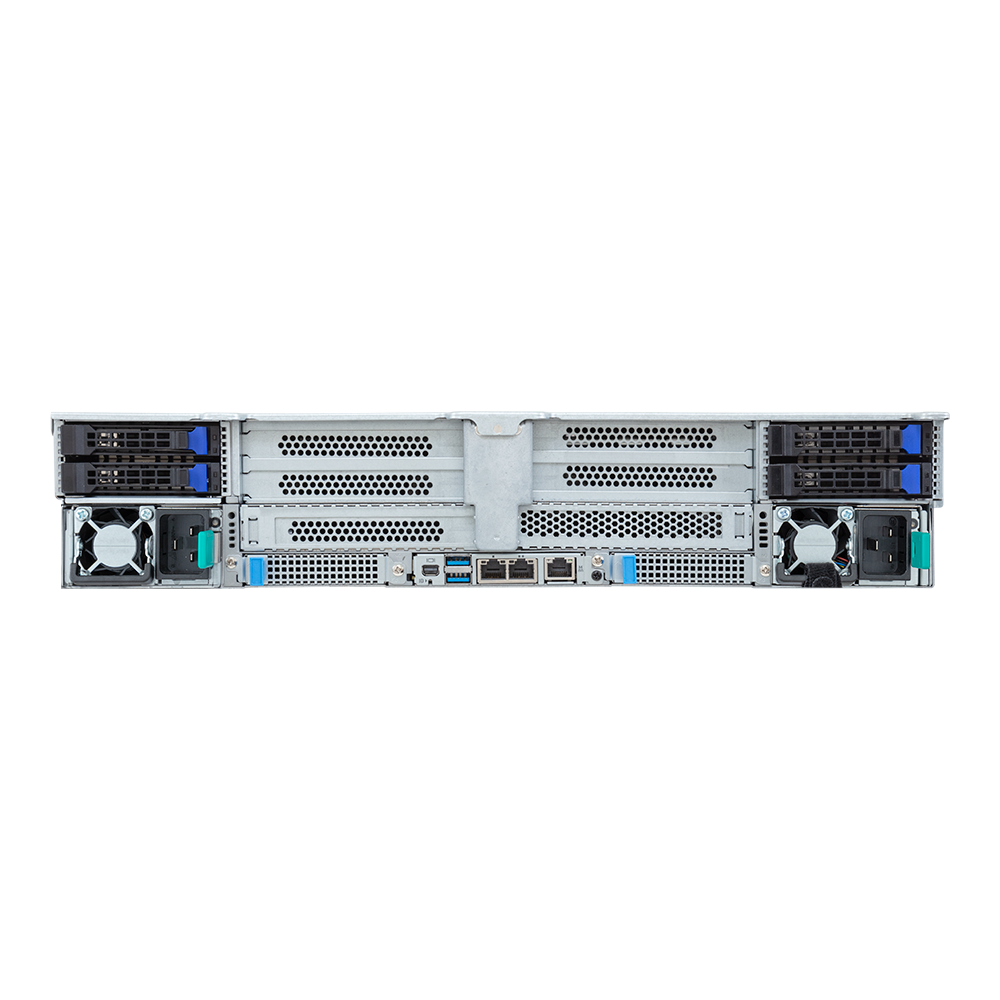

Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 2700W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-Z97-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR283Z97DR000AAL1*
- Motherboard: 9MZ93FS1UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Backplane board - CBP2025: 9CBP2025NR-00
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00
- G-SCM board - CDCR114: 9CDCR114NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z97SR-RMA-A100
- Motherboard: 9MZ93FS1UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Backplane board - CBP2025: 9CBP2025NR-00
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00
- G-SCM board - CDCR114: 9CDCR114NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z97SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
AMD Chipset Driver
Version : 4.06.27.500
16.58 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 27.4
755.19 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
BIOS
Description
Version
Size
Date
1) Fixed PKfail Vulnerability.
2) Optimized WebUI HDD & CX7 Invertory information.
2) Optimized WebUI HDD & CX7 Invertory information.
Version : F17
20.95 MB
Aug 26, 2024
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F16
20.95 MB
Jul 11, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
SATA hotplug utility
Version : 2.0
2.13 MB
Jun 27, 2023
OS: Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
OS Support List
Version : R4
0.17 MB
Jul 15, 2024
AMD EPYC™ 9004 Series Processors OS Support List
Back to R283-Z97-AAL1
