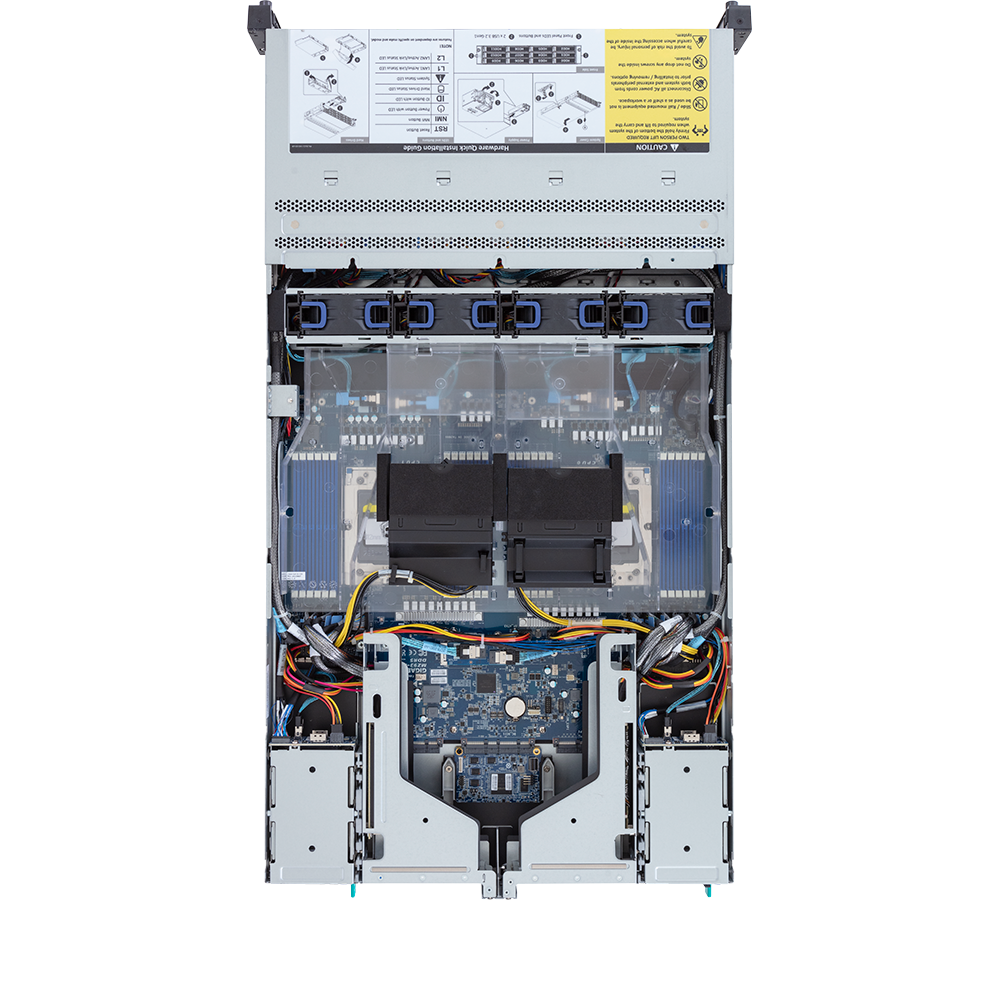

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
CPU
AMD EPYC™ 9004 Series Processors
Dual processor, 5nm technology
Up to 32 cores, 64 threads per processor
Supports cTDP up to 240W at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP

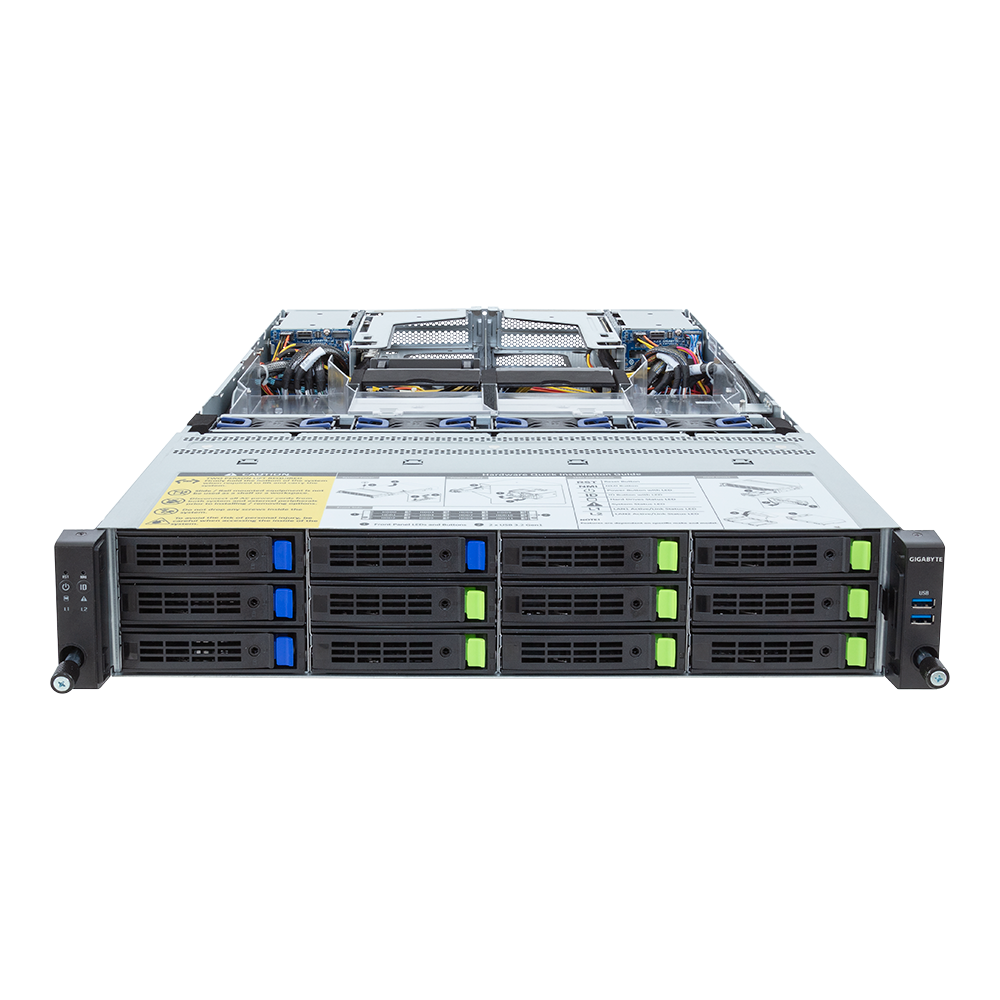

Storage
Front side:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
4 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Rear side:
4 x 2.5" SATA/SAS-4 hot-swappable bays, via CRS2810 from CPU_1
SAS card is required for SAS devices support
Note: SATA hotplug utility can be downloaded on support page.
SAS
Depends on SAS add-in cards
Expansion Slots
PCIe Cable x 4:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x SATA ports
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
TPM
1 x TPM header with SPI interface
-
Optional TPM2.0 kit:
CTM010
Power Supply
1+1 2400W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 12.5A, 47-63Hz
- 180-200V~/ 14.5A, 47-63Hz
- 200-240V~/ 14.5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2200W/ 180-200V~
+12V/ 180A
+12Vsb/ 3A
- Max 2400W/ 200-240V~ or 240Vdc Input
+12V/ 197A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed
® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content

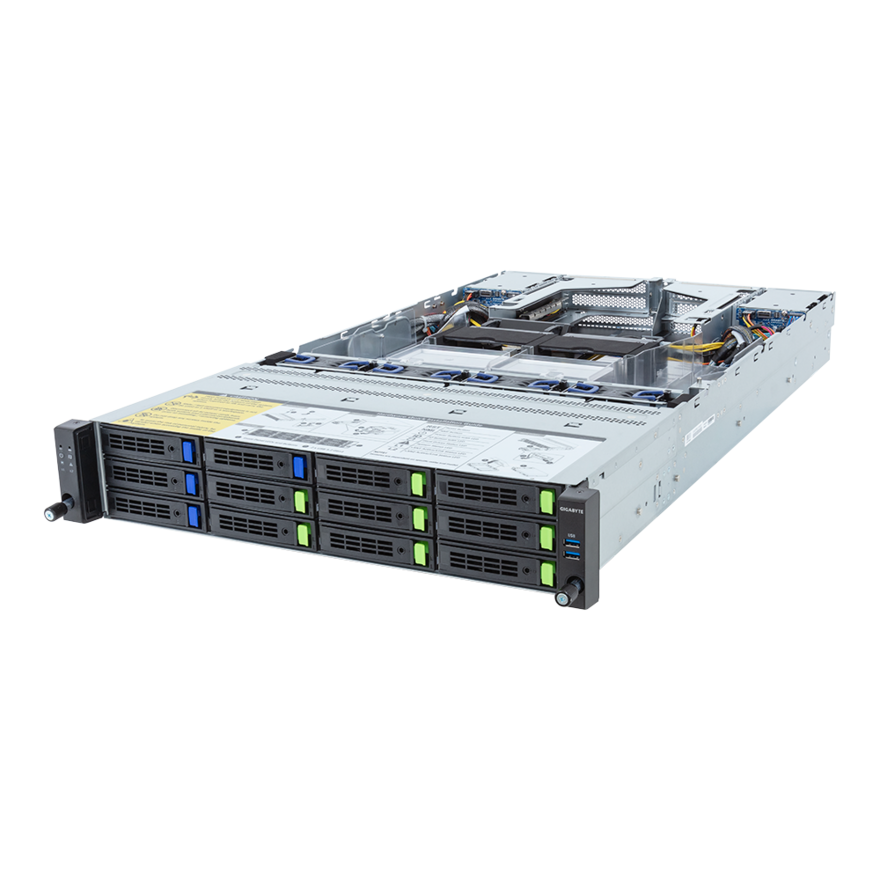

1 x R283-Z97-AAF1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR283Z97DR000AAF1*
- Motherboard: 9MZ93FS1UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Backplane board - CBP2025: 9CBP2025NR-00
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00
- G-SCM board - CDCR114: 9CDCR114NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-224000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z97SR-RMA-A100
