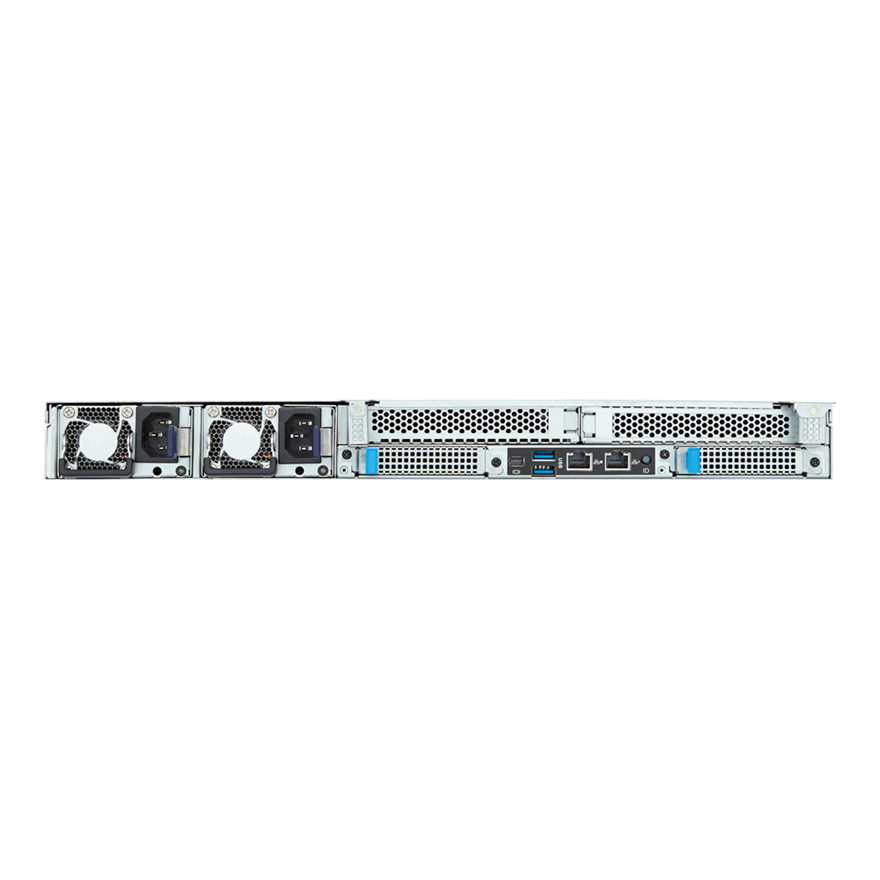

R163-Z32- AAC1
Rack Server - AMD EPYC™ 9004 - 1U UP 12-Bay Gen4 NVMe/SATA/SAS (12 x NVMe)
- Single AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP 3.0 Gen5 x16 slots
- 1+1 1300W 80 PLUS Platinum redundant power supplies
Quick Shipping
Streamline the Process
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
438 x 43.5 x 710
Motherboard
MZ33-DC0
CPU
AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
*Up to 128 cores, 256 threads
cTDP up to 300W at ambient 35°C
*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
*Up to 128 cores, 256 threads
cTDP up to 300W at ambient 35°C
*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
LAN
Rear side:
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Riser Card CRS101V:
- 1 x PCIe x16 (Gen5 x16) FHHL slot
Riser Card CRS101W:
- 1 x PCIe x16 (Gen5 x16) FHHL slot
2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
- 1 x PCIe x16 (Gen5 x16) FHHL slot
Riser Card CRS101W:
- 1 x PCIe x16 (Gen5 x16) FHHL slot
2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

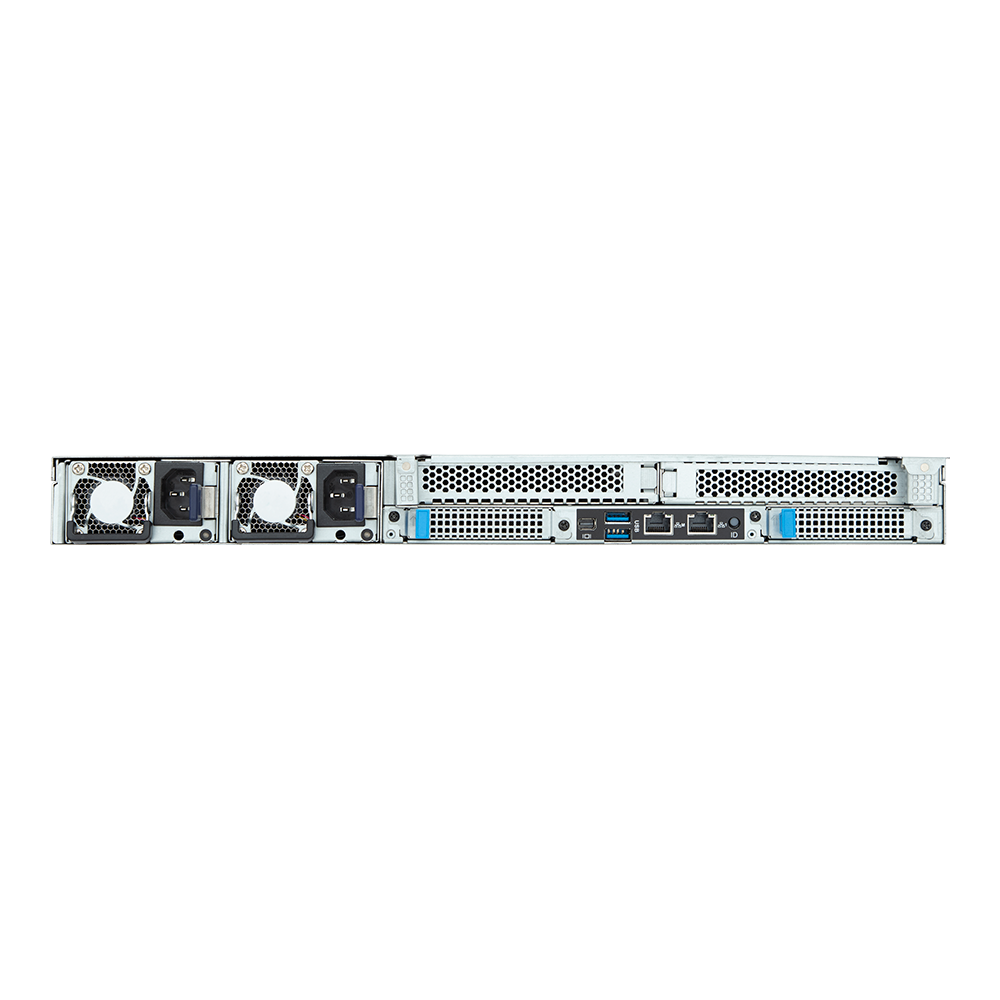

Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
Note: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
Note: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
System Fans
2 x 40x40x28mm (25,000rpm)
4 x 40x40x56mm (29,700rpm)
4 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 19.1 kg
Gross Weight: 21.1 kg
Gross Weight: 21.1 kg
Packaging Dimensions
977 x 588 x 236 mm
Packaging Content
1 x R163-Z32-AAC1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR163Z32DR000AAC1*
- Motherboard: 9MZ33DC0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module 40x40x28mm: 25ST2-442828-D0R
- Fan module 40x40x56mm: 25ST2-405623-A0R
- Riser card - CRS101V: 9CRS101VNR-00
- Riser card - CRS101W: 9CRS101WNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-213002-F3S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- Motherboard: 9MZ33DC0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module 40x40x28mm: 25ST2-442828-D0R
- Fan module 40x40x56mm: 25ST2-405623-A0R
- Riser card - CRS101V: 9CRS101VNR-00
- Riser card - CRS101W: 9CRS101WNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-213002-F3S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
AMD Chipset Driver
Version : 4.06.27.500
16.58 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 27.4
755.19 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
BIOS
Description
Version
Size
Date
1) Fixed PKfail Vulnerability.
2) Optimized WebUI HDD & CX7 Invertory information.
2) Optimized WebUI HDD & CX7 Invertory information.
Version : F23
20.93 MB
Aug 26, 2024
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F22
20.93 MB
Jul 11, 2024
1) Optimize AC Loss feature.
2) Enhance PCIe compatibility.
2) Enhance PCIe compatibility.
Version : F18
20.56 MB
May 20, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
OS Support List
Version : R4
0.17 MB
Jul 15, 2024
AMD EPYC™ 9004 Series Processors OS Support List
