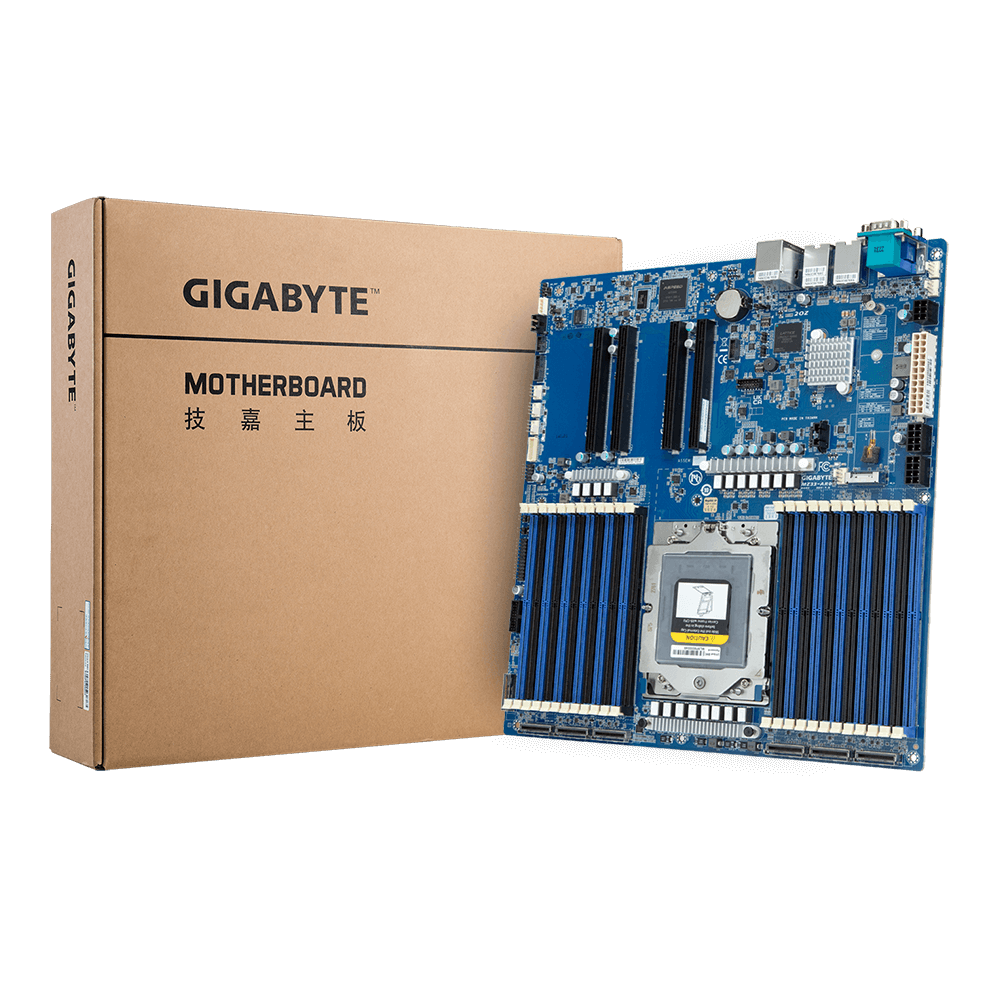

MZ33-AR0
Motherboard - AMD EPYC™ 9004 - E-ATX UP
- Single AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
- 4 x MCIO 8i connectors with PCIe Gen5 x8 interface
- 1 x MCIO 8i connector with PCIe Gen4 x8 interface
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 4 x PCIe Gen5 x16 expansion slots
Quick Shipping
Streamline the Process
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
E-ATX
305W x 330D mm
305W x 330D mm
CPU
AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
Up to 128 cores, 256 threads
cTDP up to 400W
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
Up to 128 cores, 256 threads
cTDP up to 400W
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
2 x MCIO 8i connectors for 4 x Gen5 NVMe or 16 x SATA 6Gb/s
4 x MCIO 8i connectors for 8 x Gen5 NVMe
1 x MCIO 8i connector for 2 x Gen4 NVMe
4 x MCIO 8i connectors for 8 x Gen5 NVMe
1 x MCIO 8i connector for 2 x Gen4 NVMe
RAID
N/A
Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot
Slot_6: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen5 x16) slot
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2280/22110 cards
*Total 7 x MCIO 8i connectors:
- 2 x MCIO 8i (PCIe Gen5 x8 or SATA) connectors
- 4 x MCIO 8i (PCIe Gen5 x8) connectors
- 1 x MCIO 8i (PCIe Gen4 x8) connector
*Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
Slot_6: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen5 x16) slot
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2280/22110 cards
*Total 7 x MCIO 8i connectors:
- 2 x MCIO 8i (PCIe Gen5 x8 or SATA) connectors
- 4 x MCIO 8i (PCIe Gen5 x8) connectors
- 1 x MCIO 8i (PCIe Gen4 x8) connector
*Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
7 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
7 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
OS Compatibility
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MZ33-AR0
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ33-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9MZ33AR0MR-000-1*
Bulk: 9MZ33AR0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MZ33AR-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R
Optional parts:
- MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9-550700-A4R
Bulk: 9MZ33AR0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MZ33AR-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R
Optional parts:
- MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9-550700-A4R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
