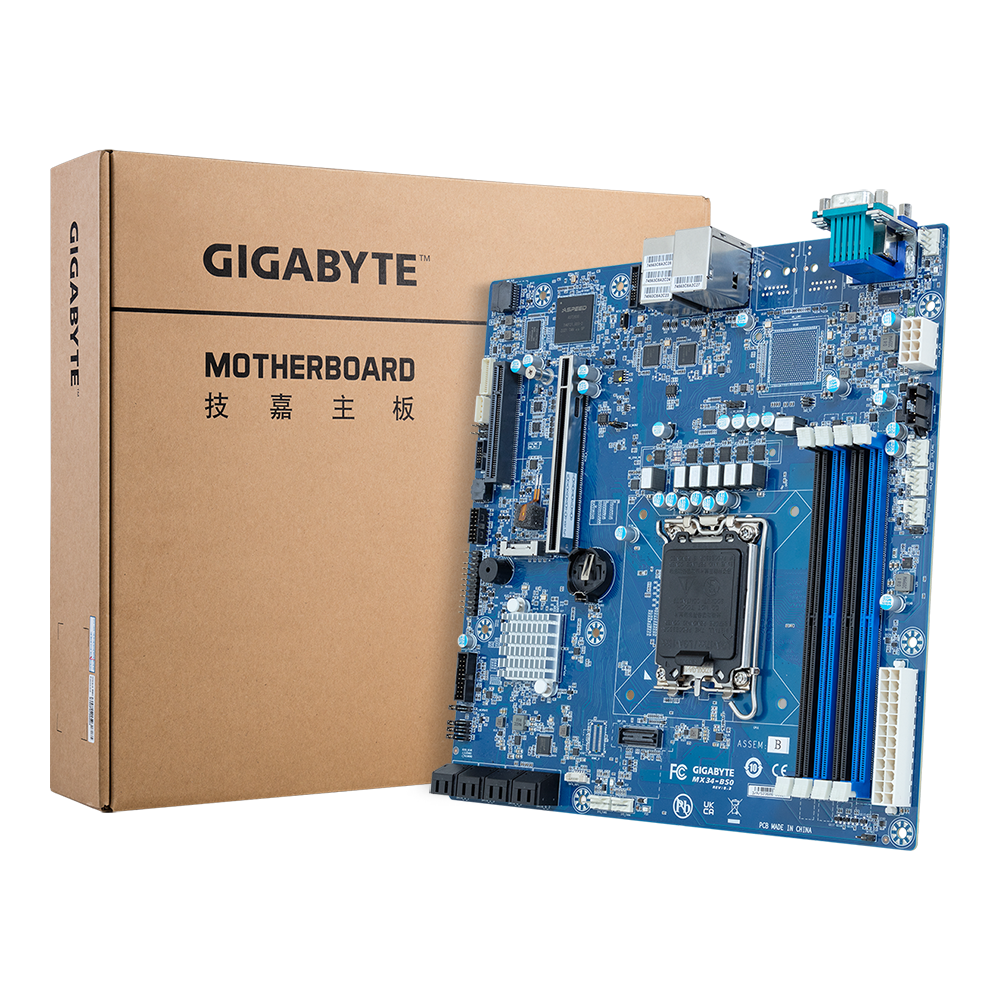

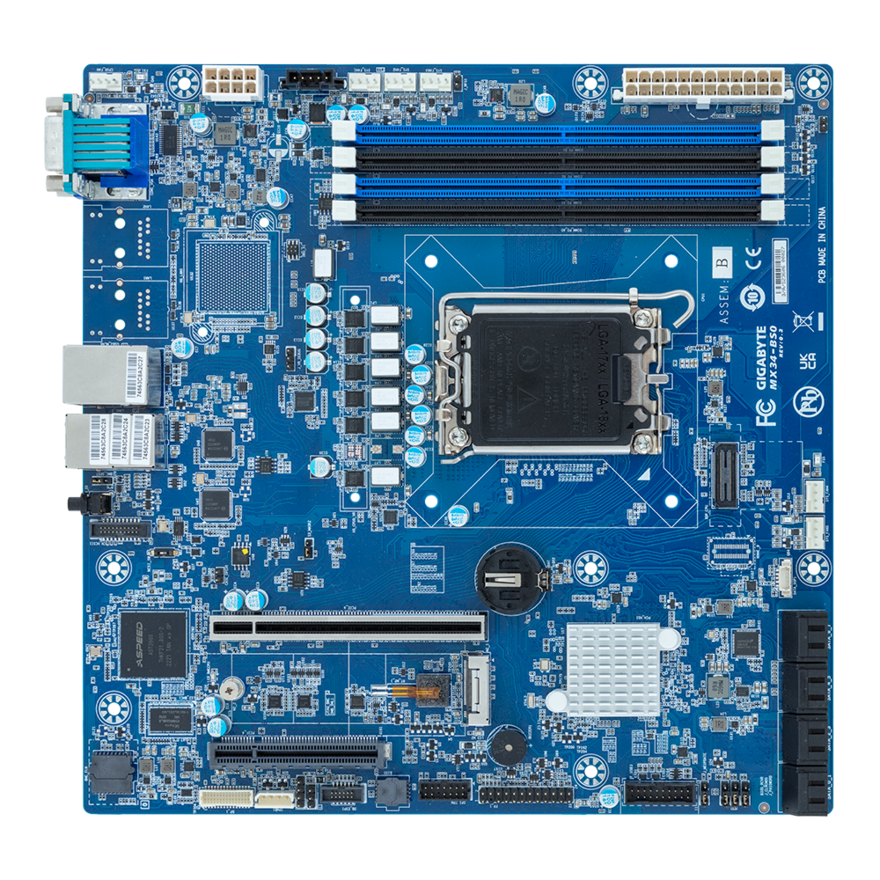

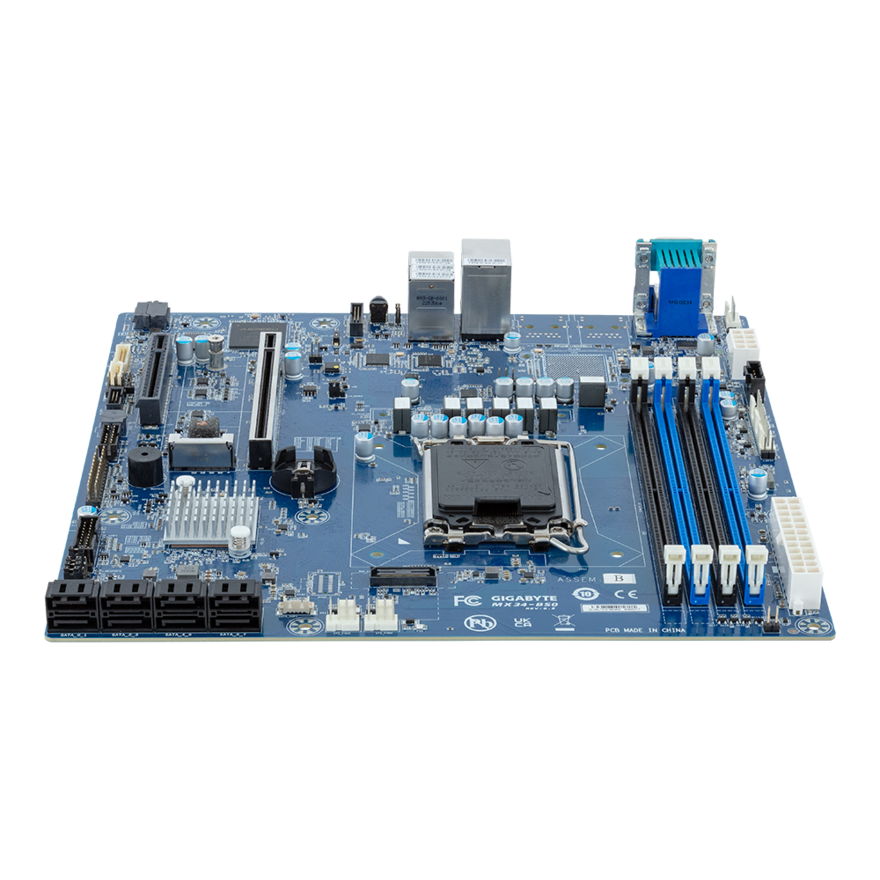

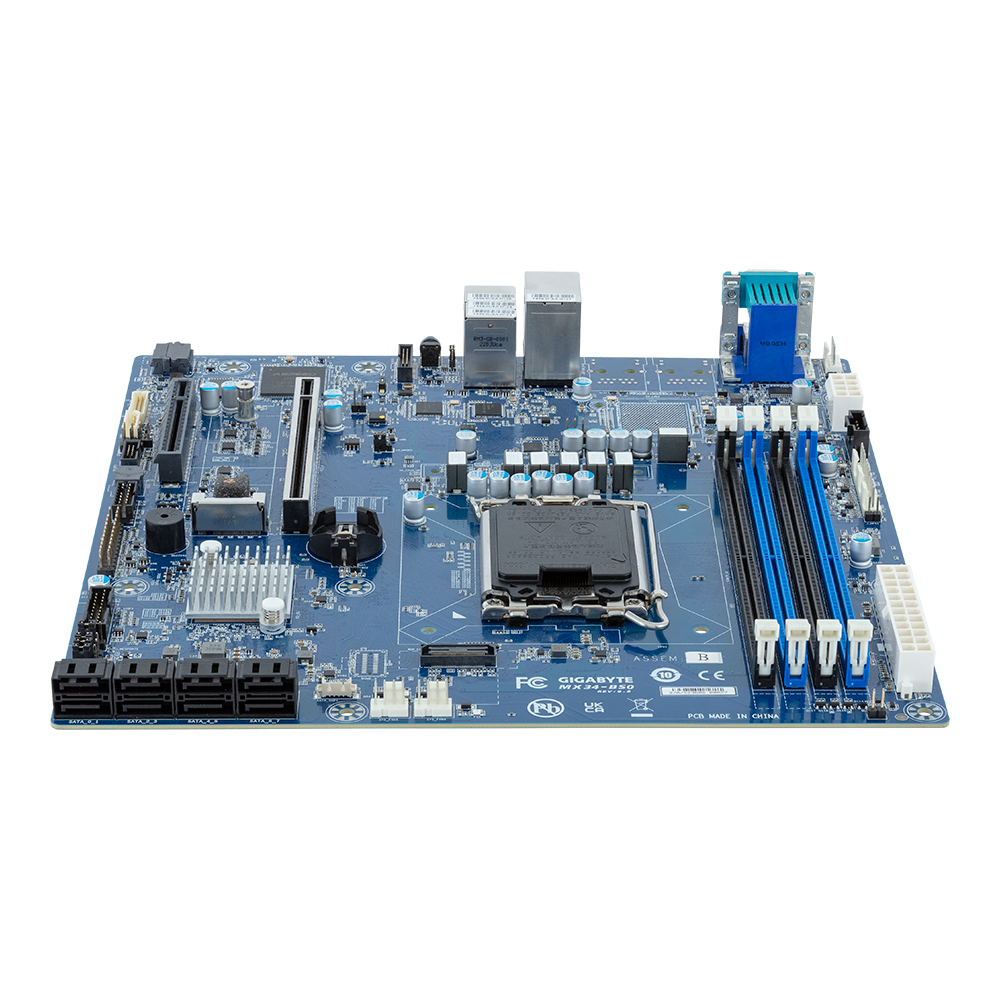

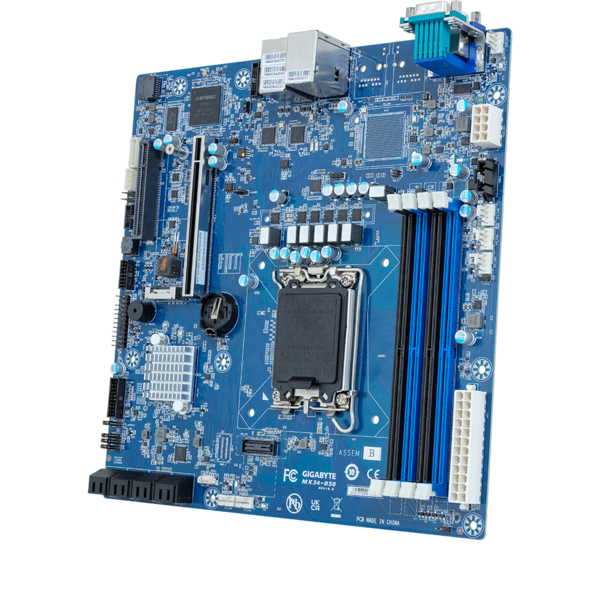

MX34-BS0
Motherboard - Intel® Xeon® E-2400 - microATX UP
- Single Intel® Xeon® E-2400 Processors
- Single Intel® Pentium® Gold G7400 / G7400T Processor
- Dual Channel DDR5 ECC UDIMM, 4 x DIMMs
- Intel® C262 Chipset
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 8 x SATA 6Gb/s ports
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x PCIe Gen5 x16 expansion slot
- 1 x PCIe Gen4 x4 expansion slot
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
microATX
244W x 244D mm
244W x 244D mm
CPU
Intel® Xeon® E-2400 Processors
Intel® Pentium® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W
Intel® Pentium® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W
Socket
1 x LGA 1700
Chipset
Intel® C262
Memory
4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
LAN
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
PCH:
- 8 x SATA 6Gb/s ports
- 8 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen5 x16) slot, from CPU
1 x PCIe x8 (Gen4 x4) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280 cards
1 x PCIe x8 (Gen4 x4) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280 cards
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

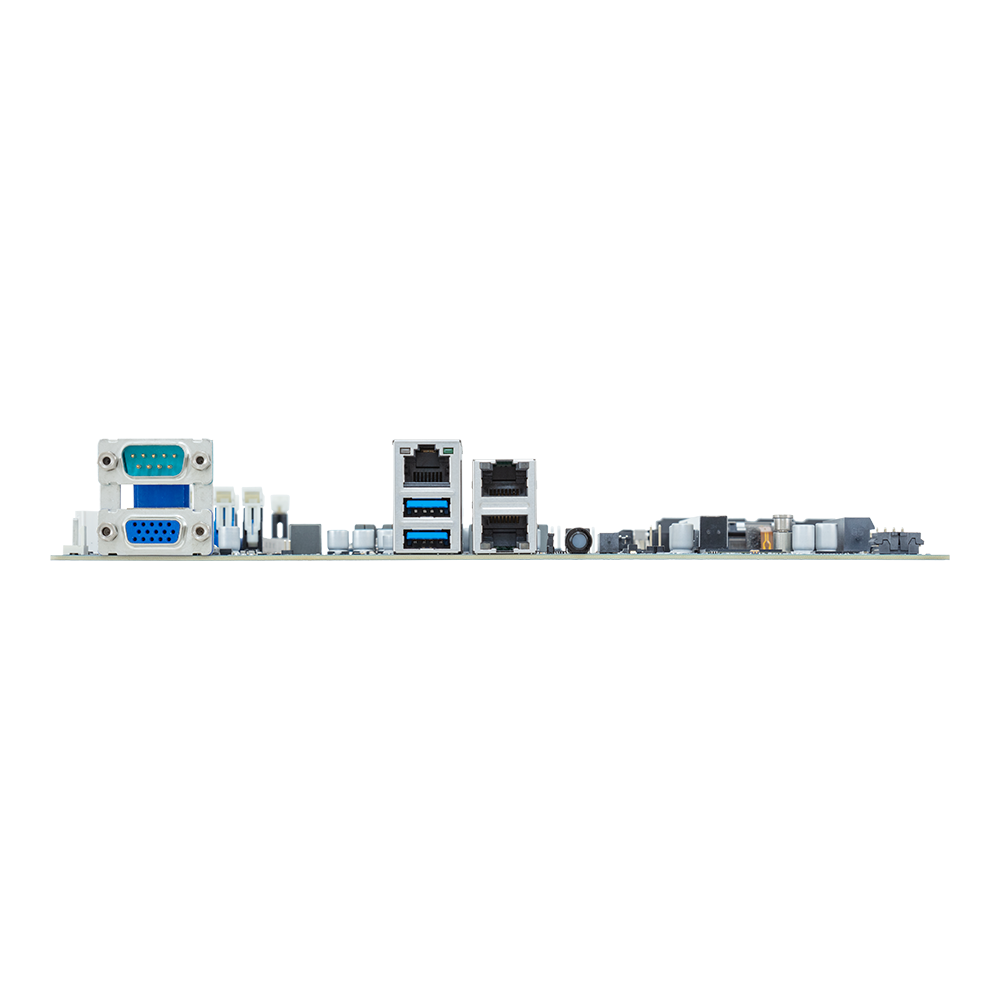

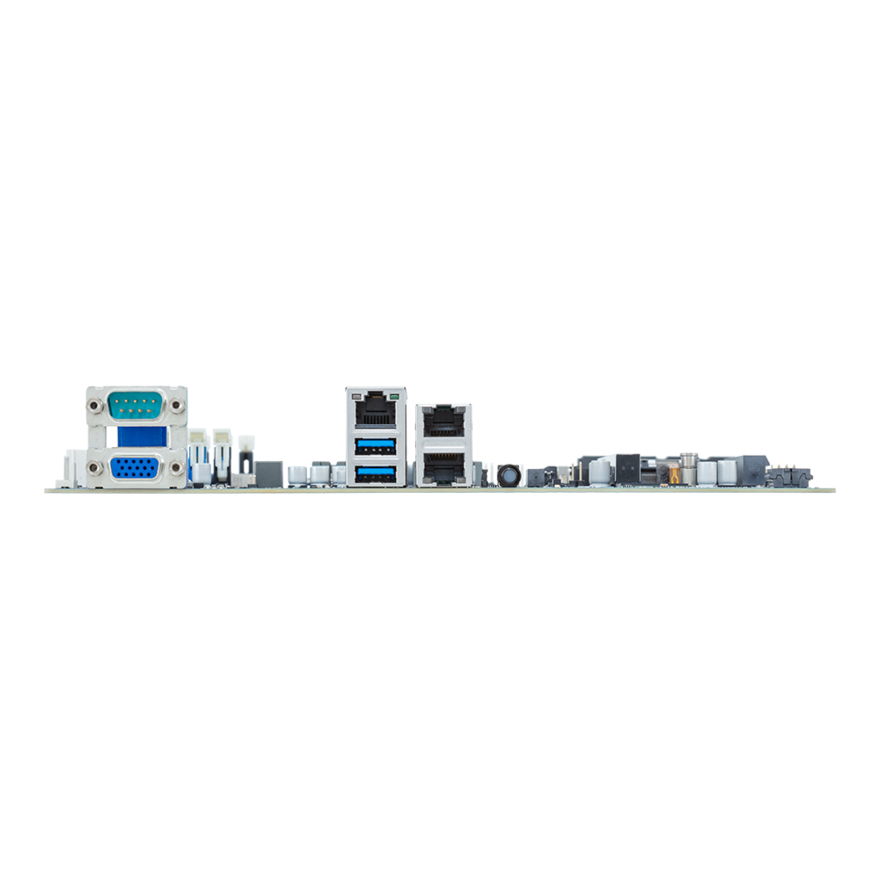

Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
OS Compatibility
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

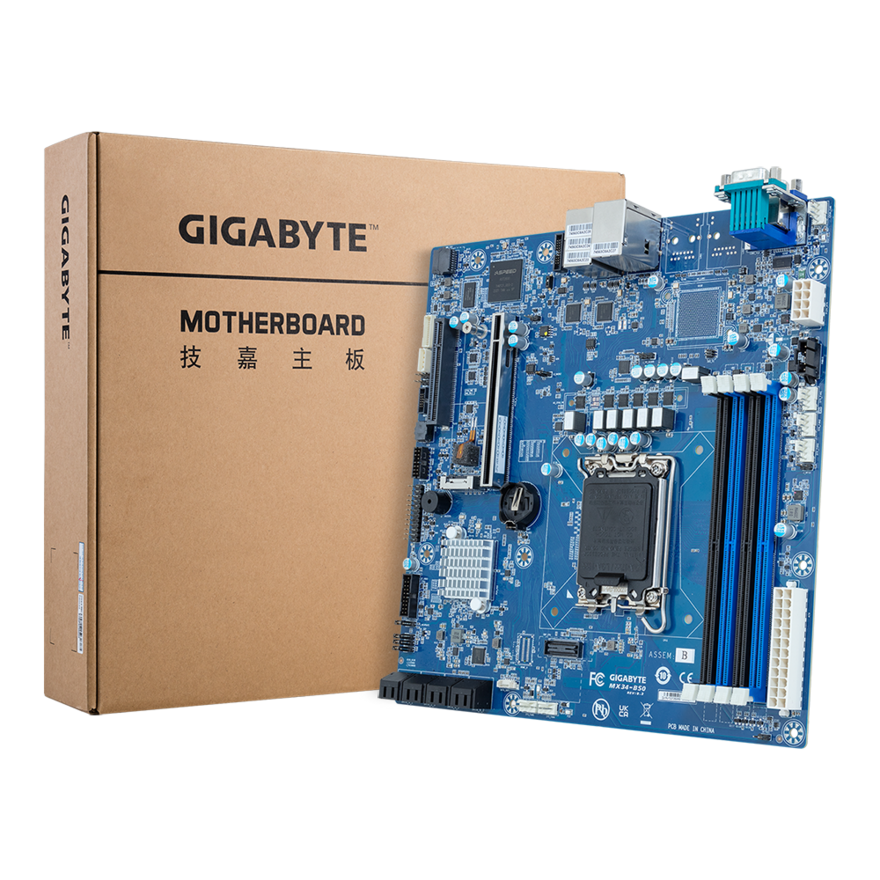

Retail Packaging Content
1 x MX34-BS0
1 x I/O shield
1 x Quick start guide
2 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
2 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
20 x MX34-BS0
20 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
20 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Reference Numbers
Retail: 9MX34BS0MR-000-1*
Bulk: 9MX34BS0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MC13LE-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
Bulk: 9MX34BS0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MC13LE-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
Intel® Chipset Driver
Version : 10.1.19332.8373
3.01 MB
Dec 26, 2023
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Intel® LAN Driver
Version : 28.2.1
776.69 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
RAID
RAID
Version
Size
Date
Intel® VROC
Intel® SATA RAID and Utility
Intel® SATA RAID and Utility
Version : 8.5.0.1593
99.21 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
BIOS
Description
Version
Size
Date
1. Supported "DMA Control Guarantee" item
2. Modified all post error message to not stop
3. Modified default year value
4. Supported CPU PCIE Slot to Gen5
2. Modified all post error message to not stop
3. Modified default year value
4. Supported CPU PCIE Slot to Gen5
Version : F06
19.46 MB
Mar 08, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
