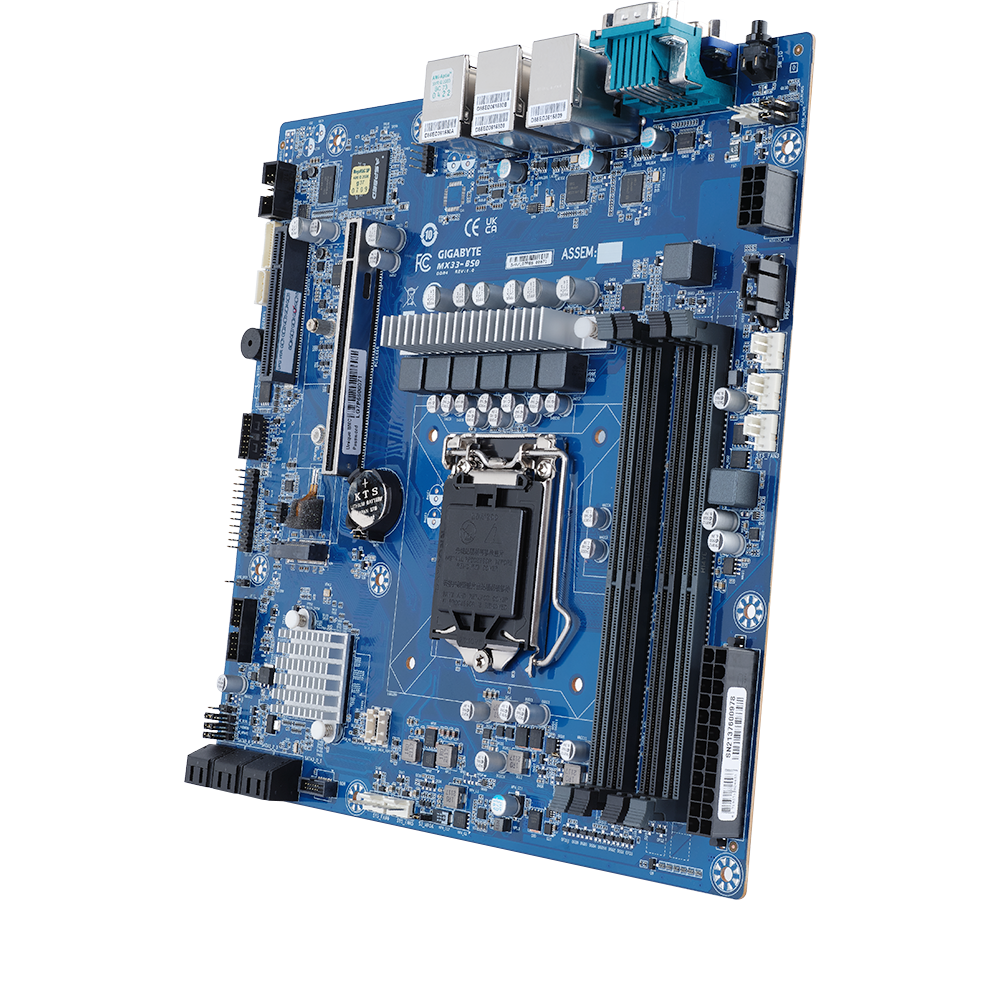

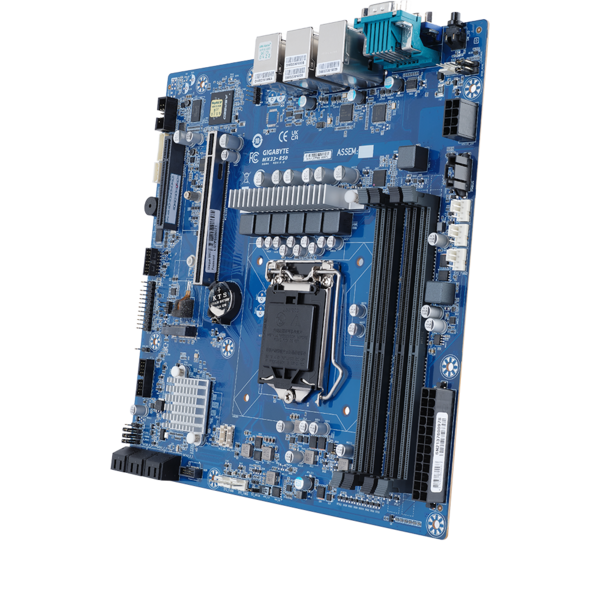

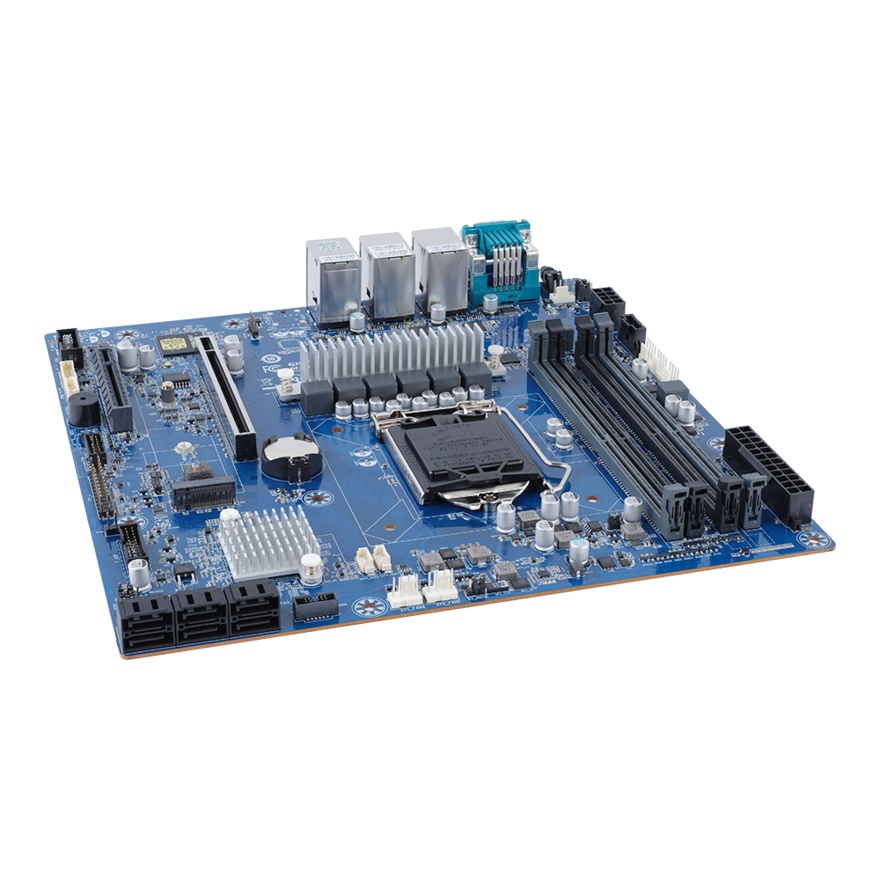

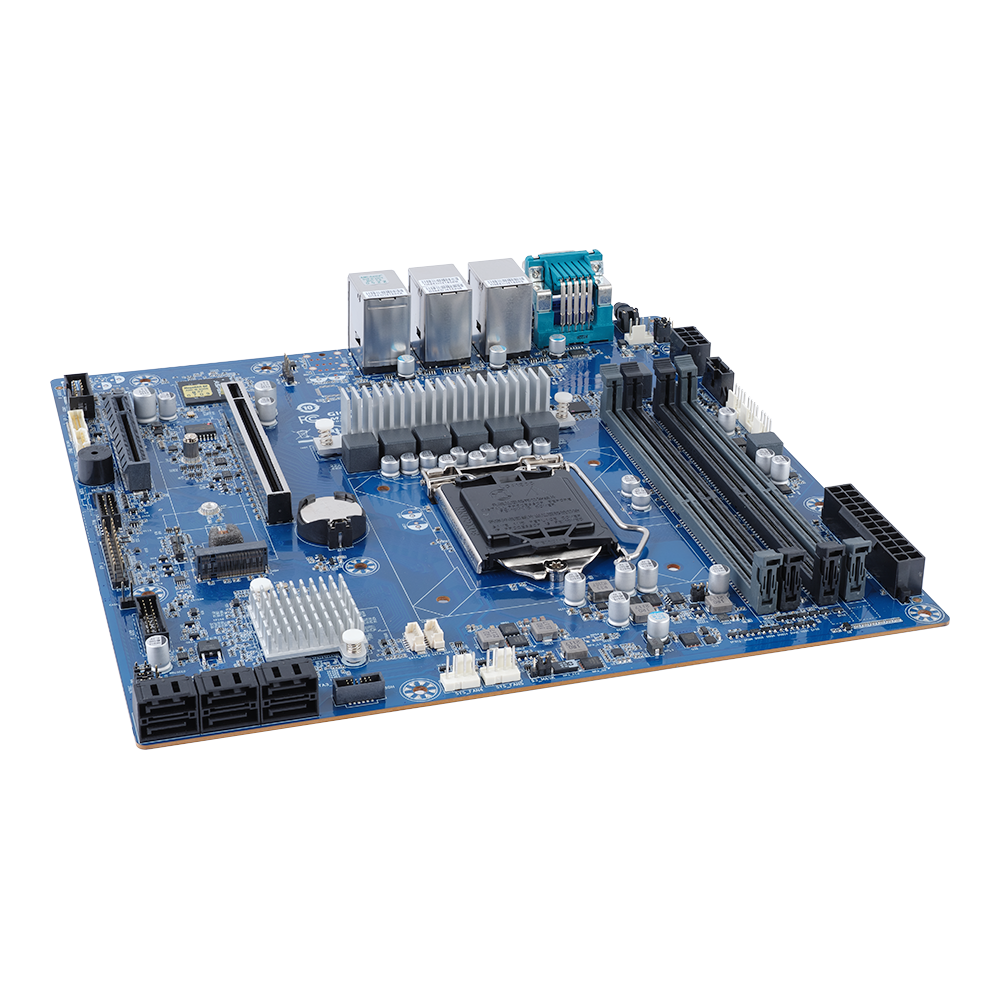

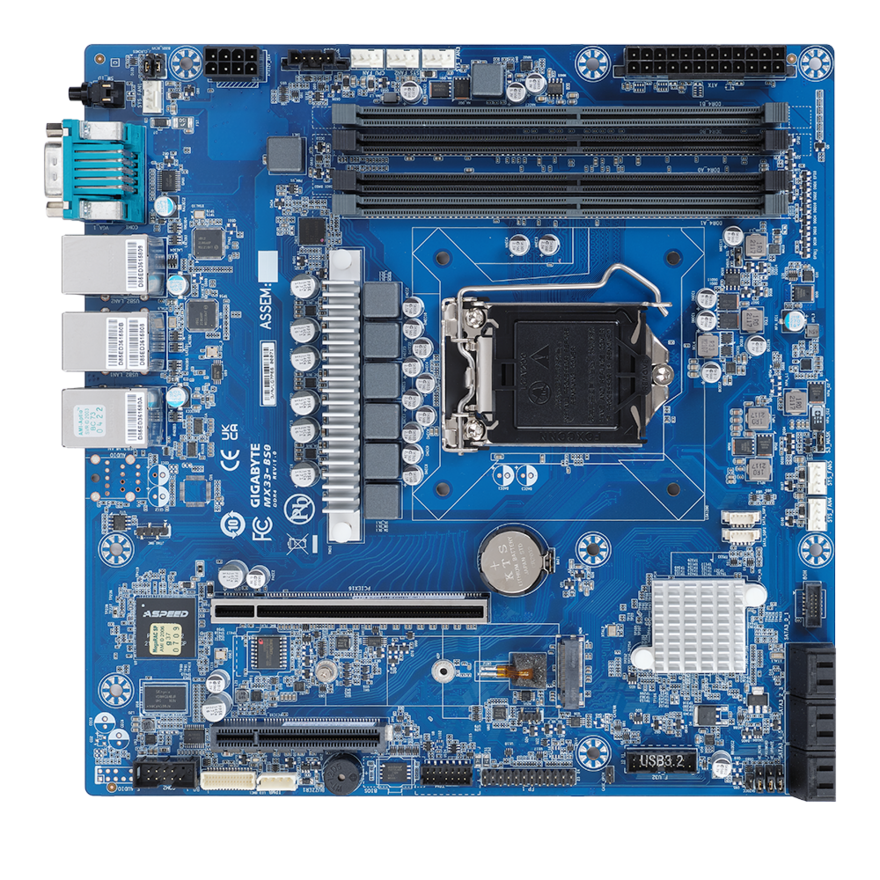

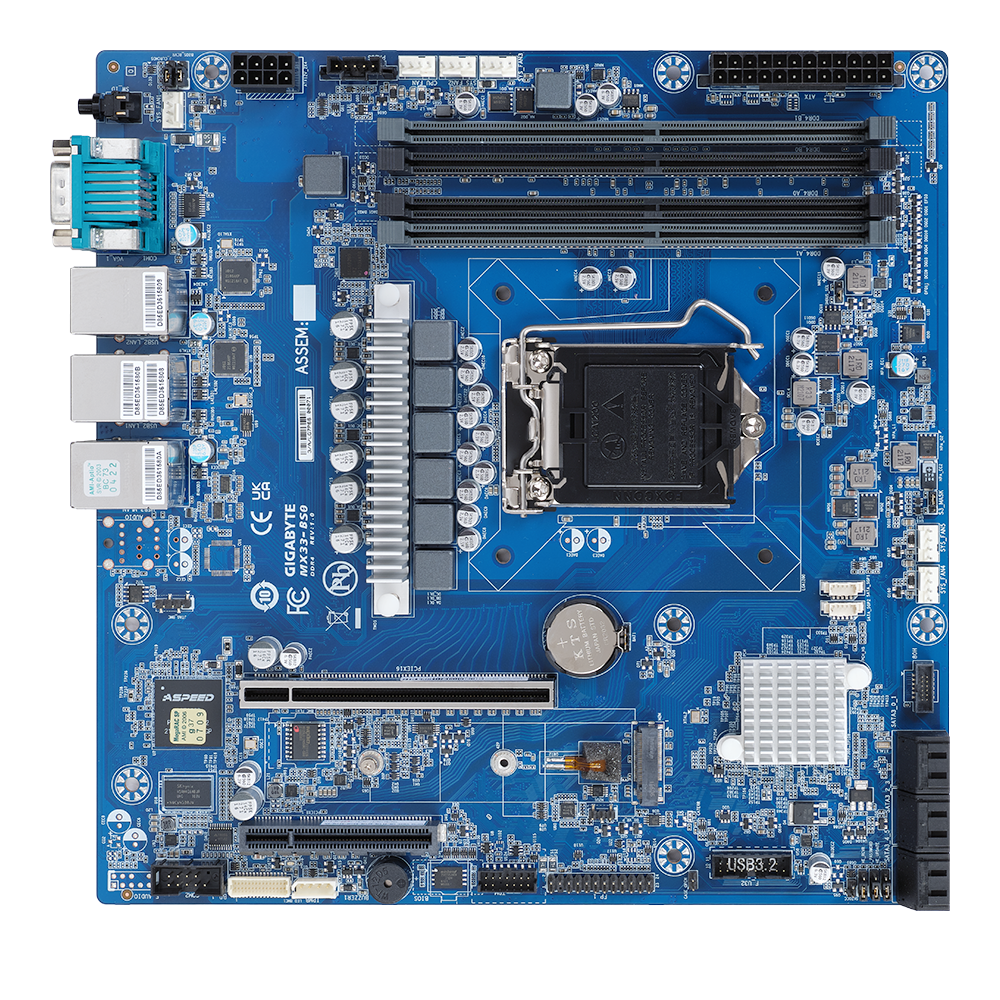

MX33-BS0
Motherboard - Intel® Xeon® E-2300 - microATX UP
- Single Intel® Xeon® E-2300 Processor
- Intel® C252 Chipset
- Dual Channel UDIMM DDR4, 4 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 6 x SATA 6Gb/s ports
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x PCIe Gen4 x16 and x4 expansion slots
Quick Shipping
Streamline the Process
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
microATX
244W x 244D mm
244W x 244D mm
CPU
Intel® Xeon® E-2300 Processor
10th Gen Intel® Pentium® Processor
TDP up to 95W
10th Gen Intel® Pentium® Processor
TDP up to 95W
Socket
1 x LGA 1200
Socket H5
Socket H5
Chipset
Intel® C252
Memory
4 x DIMM slots
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: 3200/2666 MT/s
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: 3200/2666 MT/s
LAN
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
PCH:
- 6 x SATA 6Gb/s ports
- 6 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen4 x16) slot, from CPU*
1 x PCIe x8 (Gen4 x4) slot, from CPU**
*Downgraded to Gen3 if installed with a Intel® Pentium® Processor.
**Not available if installed with a Intel® Pentium® Processor.
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2280 cards
1 x PCIe x8 (Gen4 x4) slot, from CPU**
*Downgraded to Gen3 if installed with a Intel® Pentium® Processor.
**Not available if installed with a Intel® Pentium® Processor.
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
6 x SATA connectors
1 x Front panel header
1 x Backplane board connector
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
6 x SATA connectors
1 x Front panel header
1 x Backplane board connector
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header

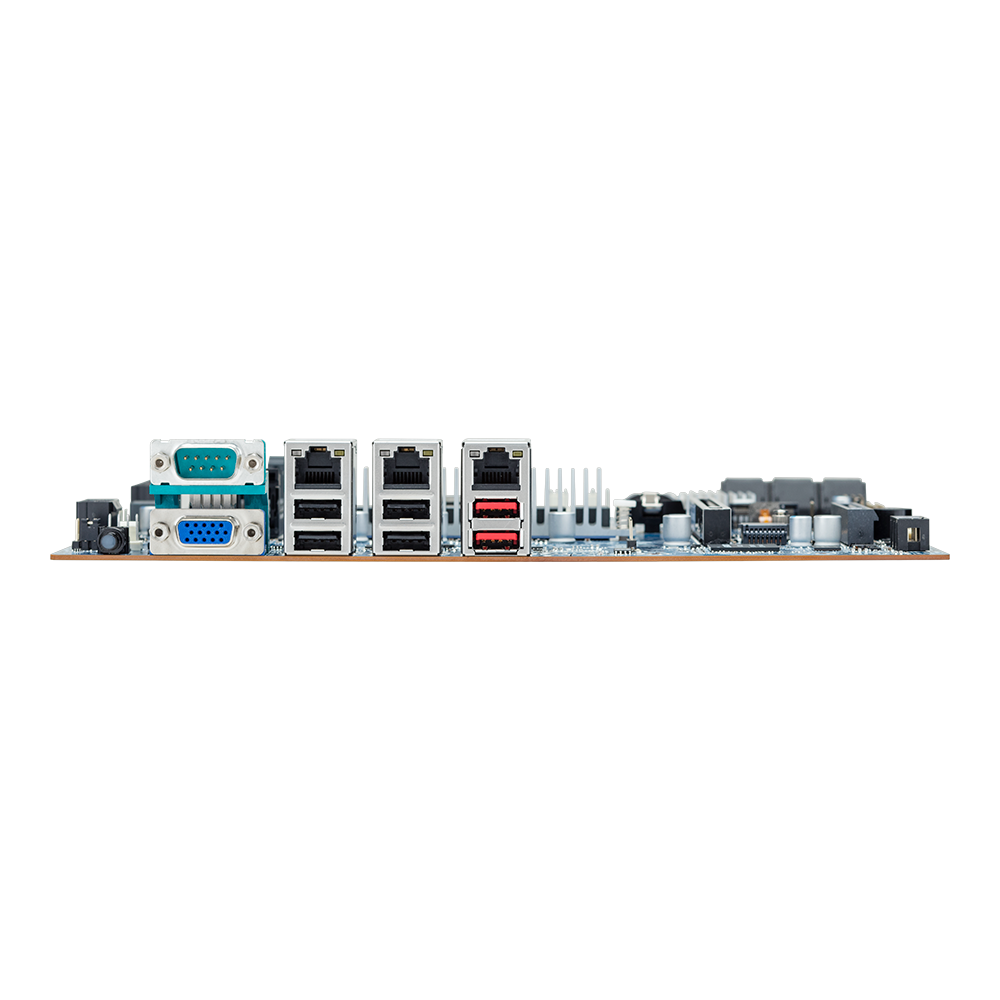

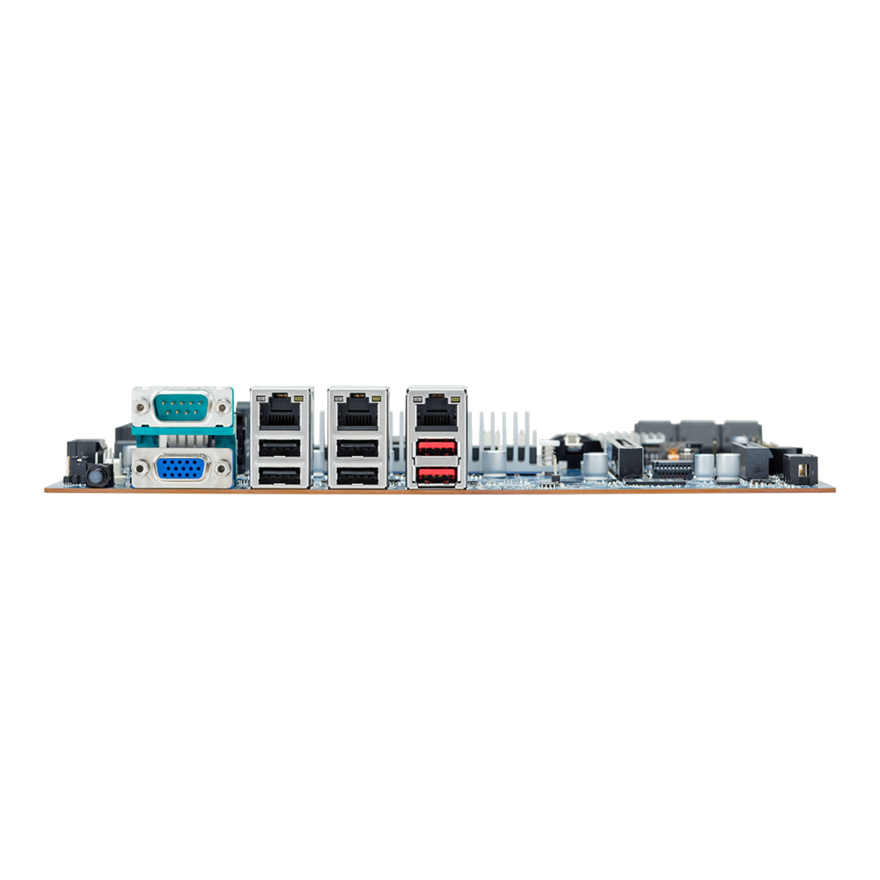

Rear I/O
2 x USB 3.2 Gen2x1
4 x USB 2.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
4 x USB 2.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Compatibility
Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.2 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.6 LTS (x64)
Ubuntu 18.04.2 LTS (x64)
VMware 6.5
Windows Server 2016 (x64)
Windows Server 2019 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.2 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.6 LTS (x64)
Ubuntu 18.04.2 LTS (x64)
VMware 6.5
Windows Server 2016 (x64)
Windows Server 2019 (x64)
Board Management
Aspeed® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface
AMI MegaRAC SP-X Solution Web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

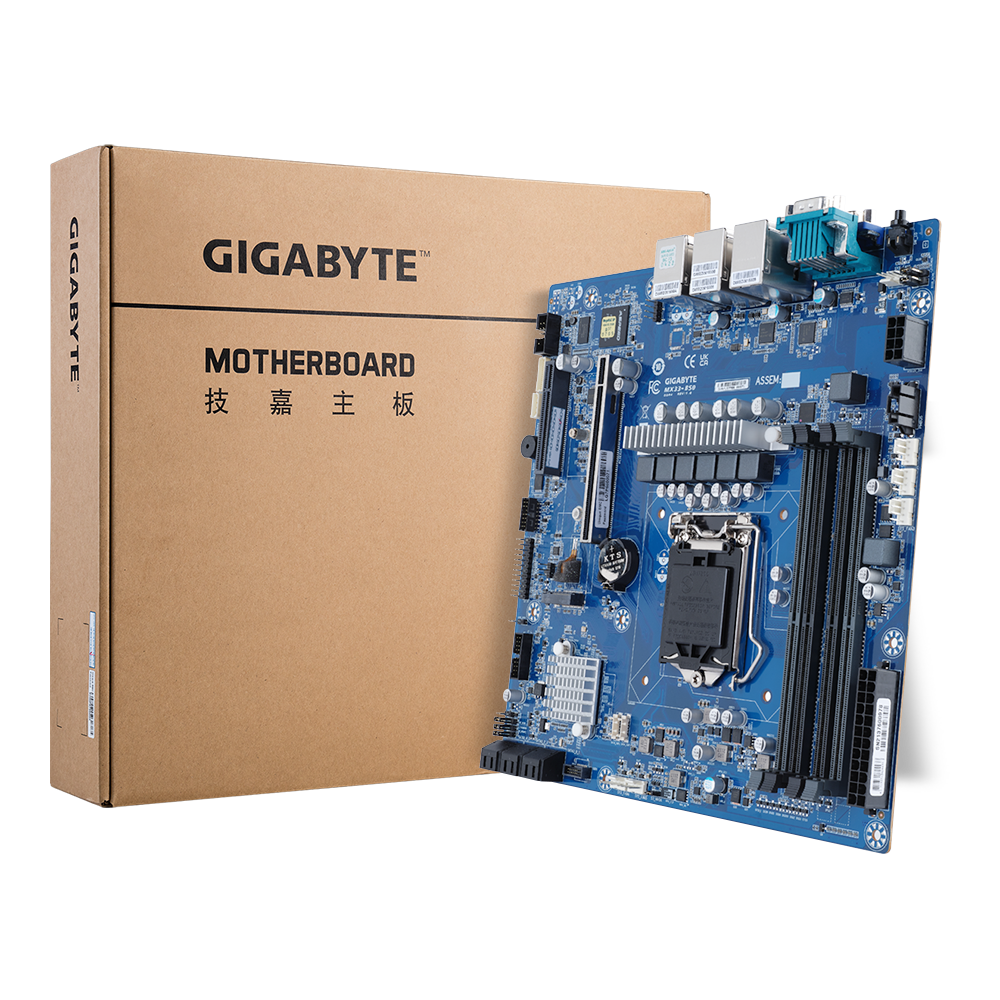

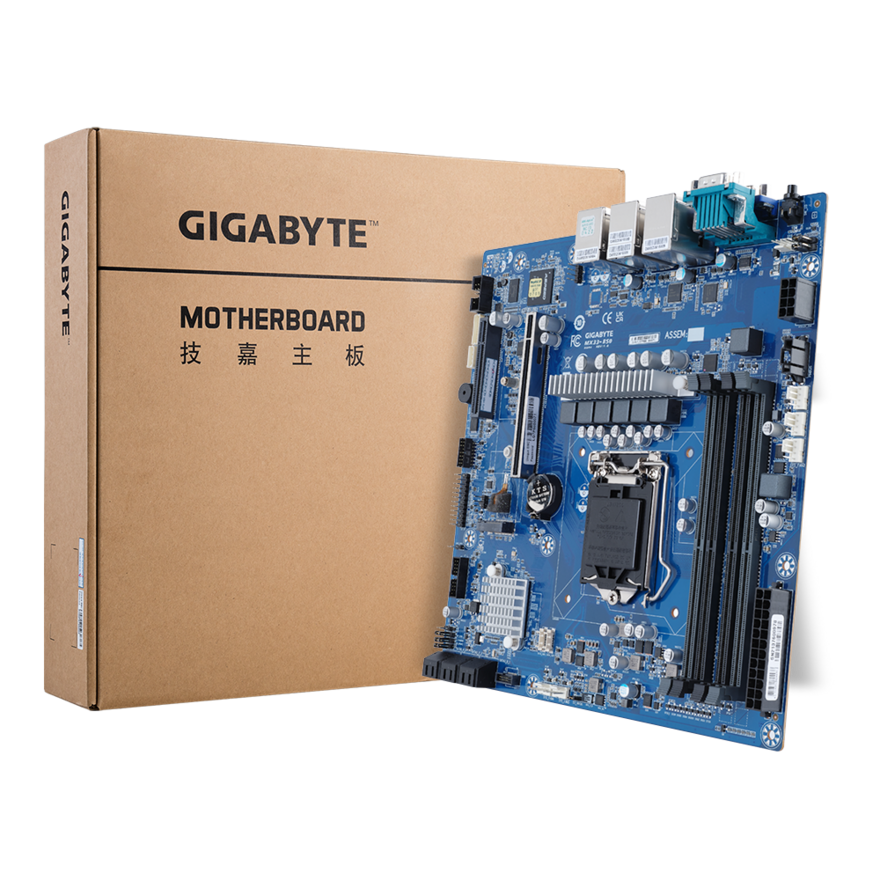

Retail Packaging Content
1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
20 x MX33-BS0
20 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
20 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Reference Numbers
Retail: 9MX33BS0MR-00-1*
Bulk: 9MX33BS0NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MX23C0-10R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
Bulk: 9MX33BS0NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MX23C0-10R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
