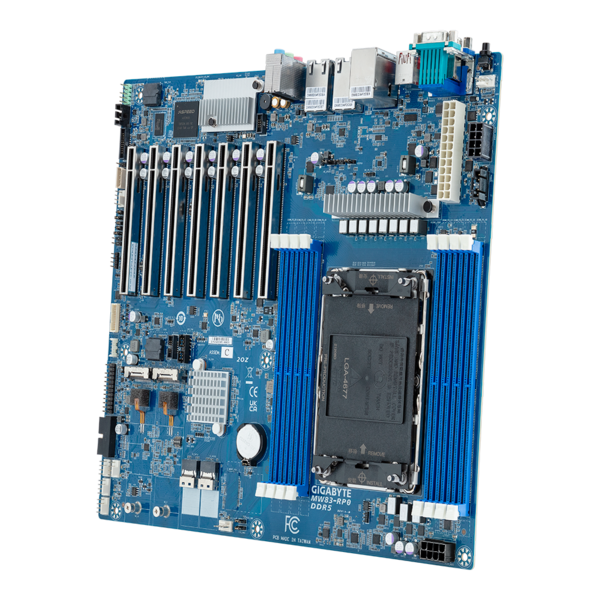

MW83-RP0

Rev. 1.x/3.x

Motherboard - Intel^® Xeon^® W-3500/2500/3400/2400 - CEB UP

Single Intel^® Xeon^® W-3500/3400 Processors
Single Intel^® Xeon^® W-2500/2400 Processors*
8-Channel DDR5 RDIMM, 8 x DIMMs
Intel^® W790 chipset
2 x 10Gb/s LAN ports via Intel^® X710-AT2
2 x SlimSAS connectors for 8 x SATA 6Gb/s
2 x M.2 slots with PCIe Gen4 x4 interface
5 x PCIe Gen5 x16 expansion slots
2 x PCIe Gen4 x16 expansion slots

Get a Quote

Compare

Get a Quote

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor

CEB
304.8W x 266.7D mm

CPU

Intel^® Xeon^® W-3500 Processors
Intel^® Xeon^® W-2500 Processors*
Intel^® Xeon^® W-3400 Processors
Intel^® Xeon^® W-2400 Processors*
Single processor, TDP up to 385W

*Carriers for Intel^® Xeon^® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support.

Notice: Please select Intel^® Xeon^® W-3500/3400 Processors to enable all functions.

Socket

1 x LGA 4677
Socket E

Chipset

Intel^® W790

Memory

*8 x DIMM slots
DDR5 memory supported only
8-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

*Only 4 x DIMM slots are supported with Intel^® Xeon^® W-2500/2400 Processors.

Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.

LAN

2 x 10Gb/s LAN ports (1 x Intel^® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x VGA port

Audio

Realtek^® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio Jacks (Audio in/Audio out/Mic)

Storage Interface

PCH:
- 2 x SlimSAS connectors for 8 x SATA 6Gb/s

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU*
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU*
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU*
Slot_3: PCIe x16 (Gen4 x16) slot, from CPU
Slot_2: PCIe x16 (Gen5 x16) slot, from CPU
Slot_1: PCIe x16 (Gen4 x16) slot, from CPU

2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards

*Slot_4/5/6 are not supported with Intel^® Xeon^® W-2500/2400 Processors.

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
2 x SlimSAS connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

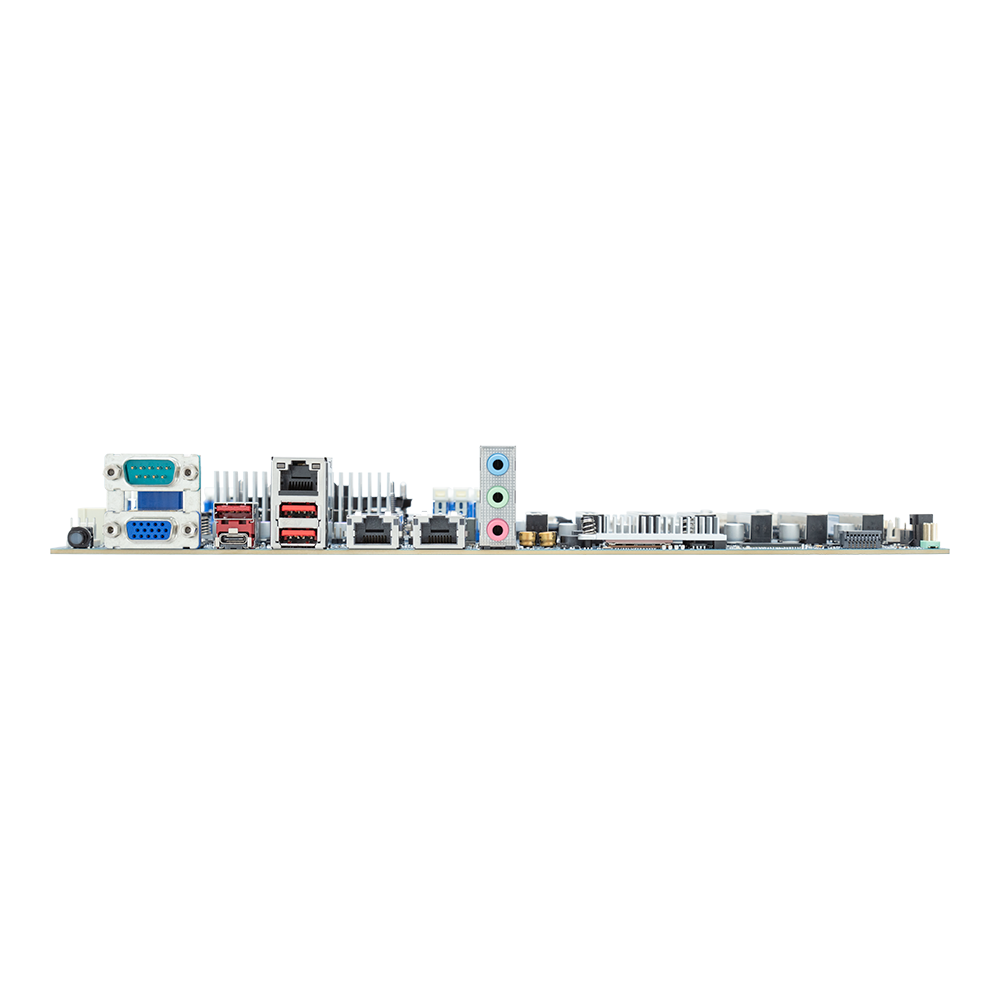

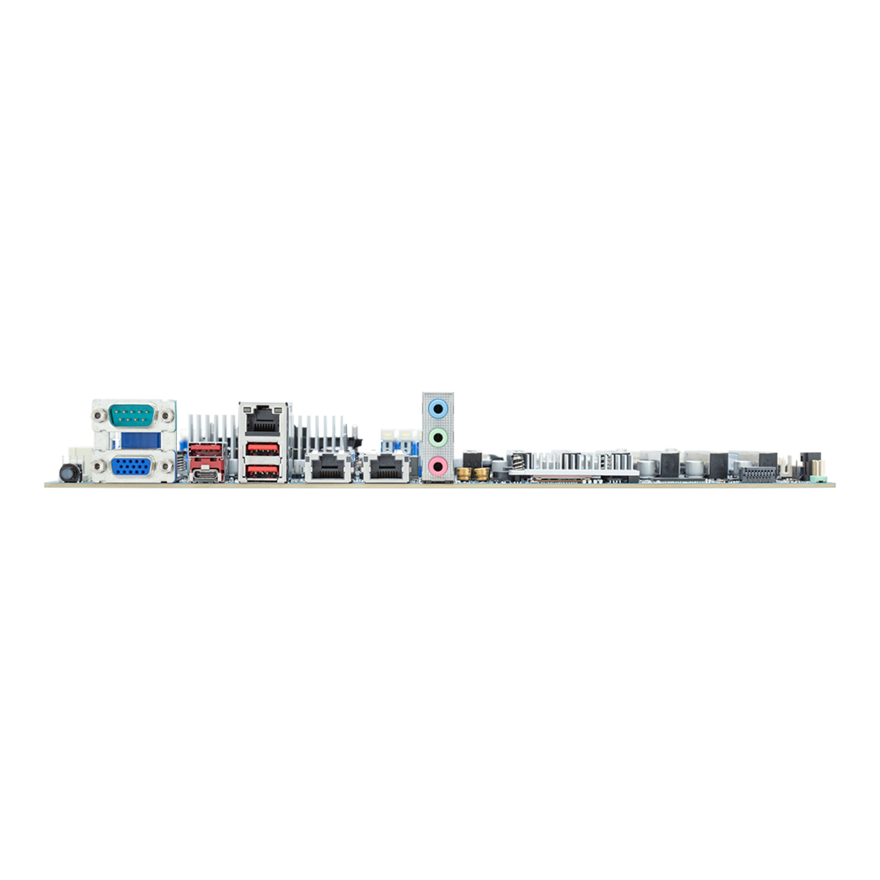

Rear I/O

1 x USB 3.2 Gen2x2 (Type-C)
3 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

OS Compatibility

CentOS Stream 9 (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)

Board Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

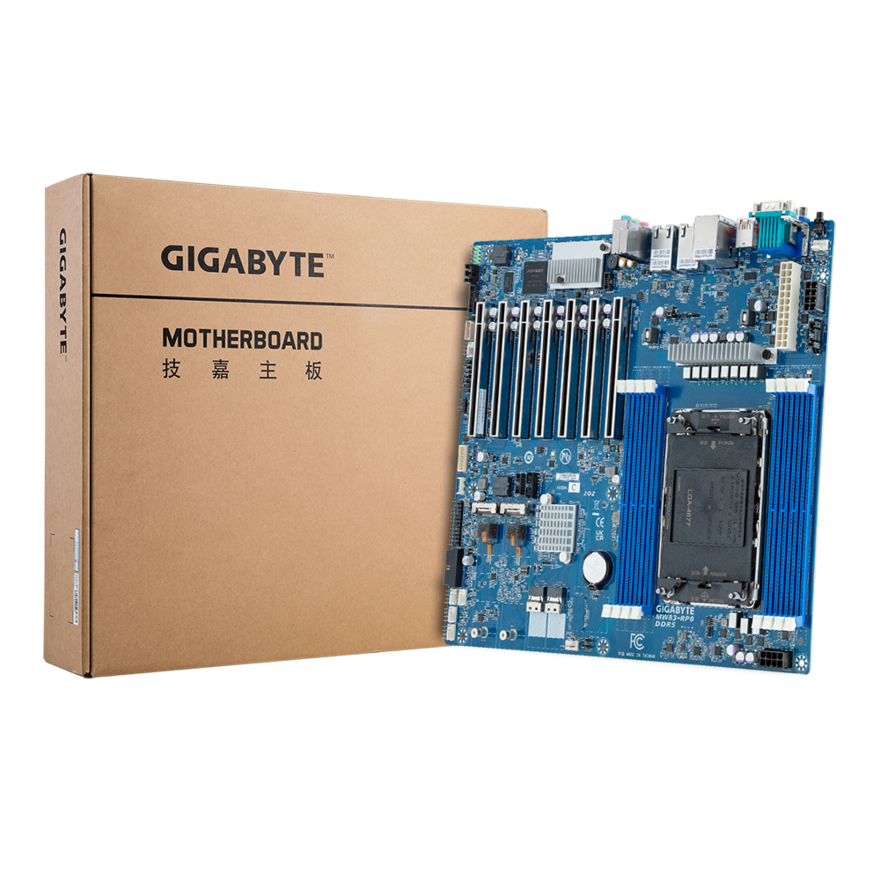

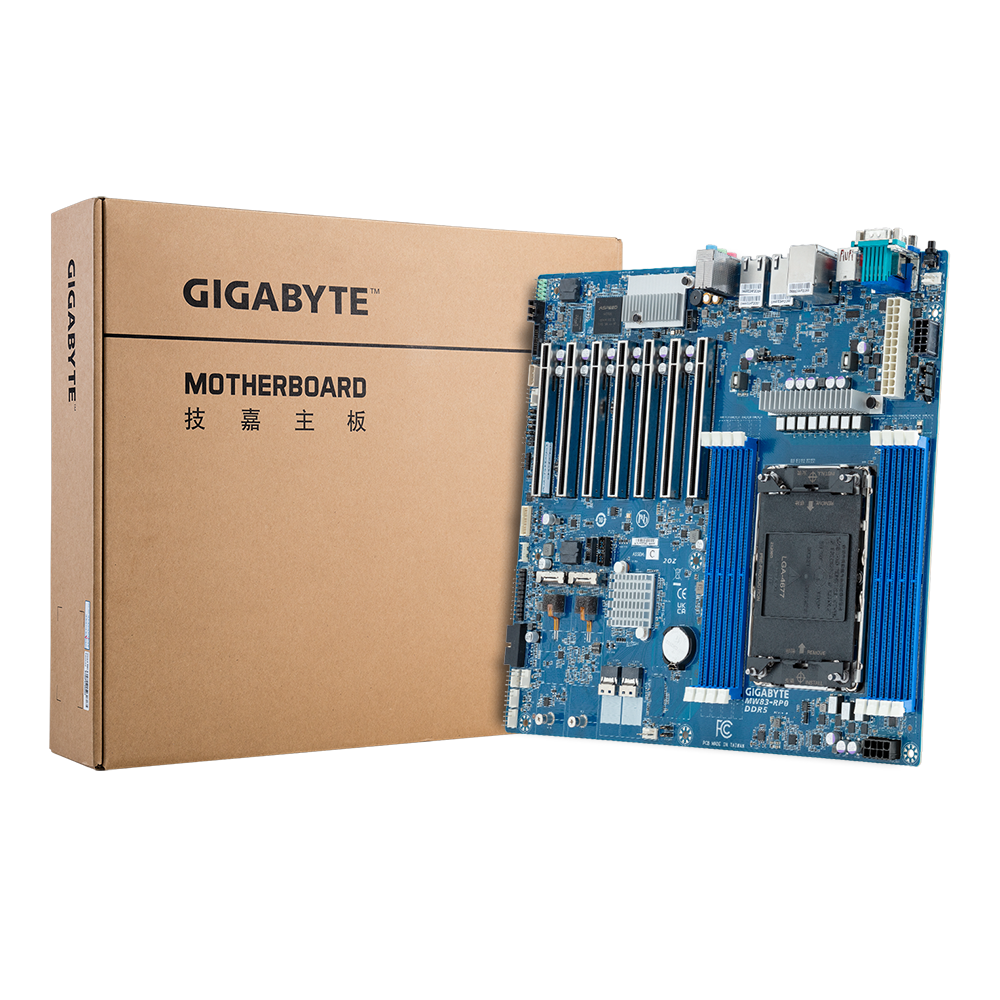

Retail Packaging Content

1 x MW83-RP0
1 x I/O shield
1 x Quick start guide
*1 x W-3500/3400 (E1A) carrier
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)

*Carriers for Intel^® Xeon^® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support.

Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MW83-RP0
10 x I/O shields
*10 x W-3500/3400 (E1A) carriers

*Carriers for Intel^® Xeon^® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support.

Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail (Refresh): 9MW83RP0MR-000-3*
Bulk (Refresh): 9MW83RP0NR-000-3*
Retail: 9MW83RP0MR-000-1*
Bulk: 9MW83RP0NR-000-1*

Part numbers:

- I/O shield: 12AIO-MW83RP-00R
- W-3500/3400 (E1A) carrier: 12KRC-0I4677-00R
- M.2 heatsink: 12SP2-080027-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R

Optional parts:

- CPU fansink: 25ST0-0Z9221-A3R
- W-2500/2400 (E1B) carrier: 12KRC-0I4677-12R
