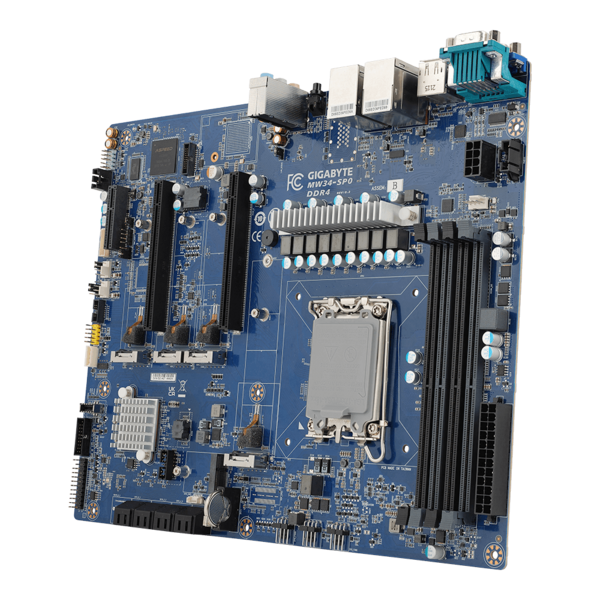

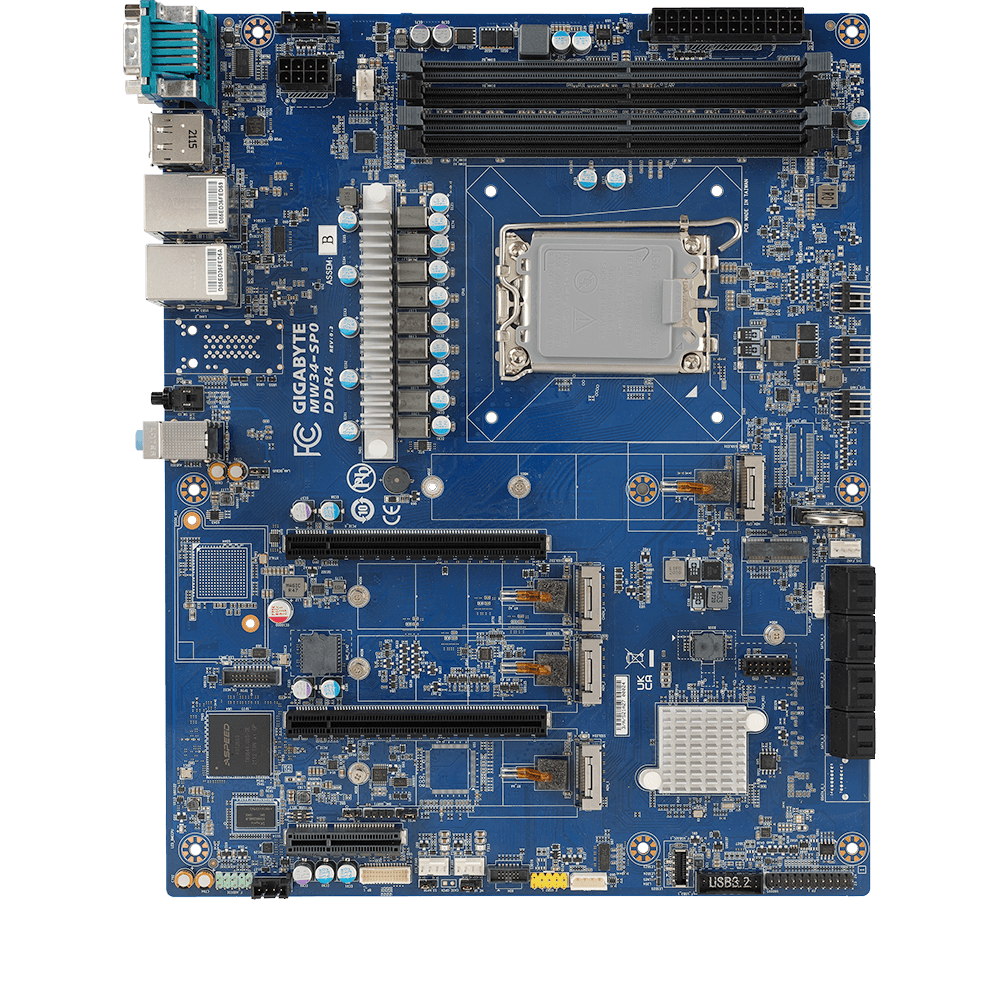

- Workstation Motherboard
- MW34-SP0
- Single 14th/13th/12th Gen Intel® Core™ Desktop Processor
- Intel® W680 Chipset
- Dual Channel DDR4 UDIMM, 4 x DIMMs
- 1 x 2.5Gb/s LAN port via Intel® I225
- 8 x SATA 6Gb/s ports
- 3 x M.2 slots with PCIe Gen4 x4 interface
- 1 x M.2 slot with PCIe Gen4 x4 interface, shared with SATA support
- 1 x M.2 slot with PCIe Gen3 x1 interface for Wi-Fi add-in cards
- 2 x PCIe Gen5 x16 and x8 expansion slots
- 1 x PCIe Gen3 x4 expansion slot
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
ATX
305W x 244D mm
305W x 244D mm
CPU
14th Gen Intel® Core™ Desktop Processor
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single processor
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single processor
Socket
1 x LGA 1700
Chipset
Intel® W680
Memory
4 x DIMM slots
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: Up to 3200 MT/s
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: Up to 3200 MT/s
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
1 x 2.5Gb/s LAN port (1 x Intel® I225)
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Intel® Processor:
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio Jacks (Audio in/Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
3 x Audio Jacks (Audio in/Audio out/Mic)
Storage Interface
PCH:
- 4 x SATA 6Gb/s ports
- *4 x SATA 6Gb/s ports
*SATA support is shared with 1 x M.2 slot. Please adjust the switch according to the manual for proper support.
- 4 x SATA 6Gb/s ports
- *4 x SATA 6Gb/s ports
*SATA support is shared with 1 x M.2 slot. Please adjust the switch according to the manual for proper support.
RAID
Intel® RAID 0/1/10/5
Expansion Slots
Slot_6: PCIe x16 (Gen5 x16 or x8) slot, from CPU, shared with Slot_3
Slot_3: PCIe x16 (Gen5 x8) slot, from CPU
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
2 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from PCH, shared with SATA support
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Slot_3: PCIe x16 (Gen5 x8) slot, from CPU
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
2 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from PCH, shared with SATA support
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB3.2 Gen2x2 header
1 x USB3.2 Gen1 x2 header
1 x USB2.0 x2 header
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x 8-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB3.2 Gen2x2 header
1 x USB3.2 Gen1 x2 header
1 x USB2.0 x2 header
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
Rear I/O
1 x USB 3.2 Gen2 (Type-C)
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Compatibility
Windows 10 (x64)
Windows 11 (x64)
Windows 11 (x64)
Board Management
ASPEED® AST2600
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW34-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MW34-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MW34SP0MR-00-11*
Bulk: 9MW34SP0NR-00-11*
Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R
Bulk: 9MW34SP0NR-00-11*
Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
