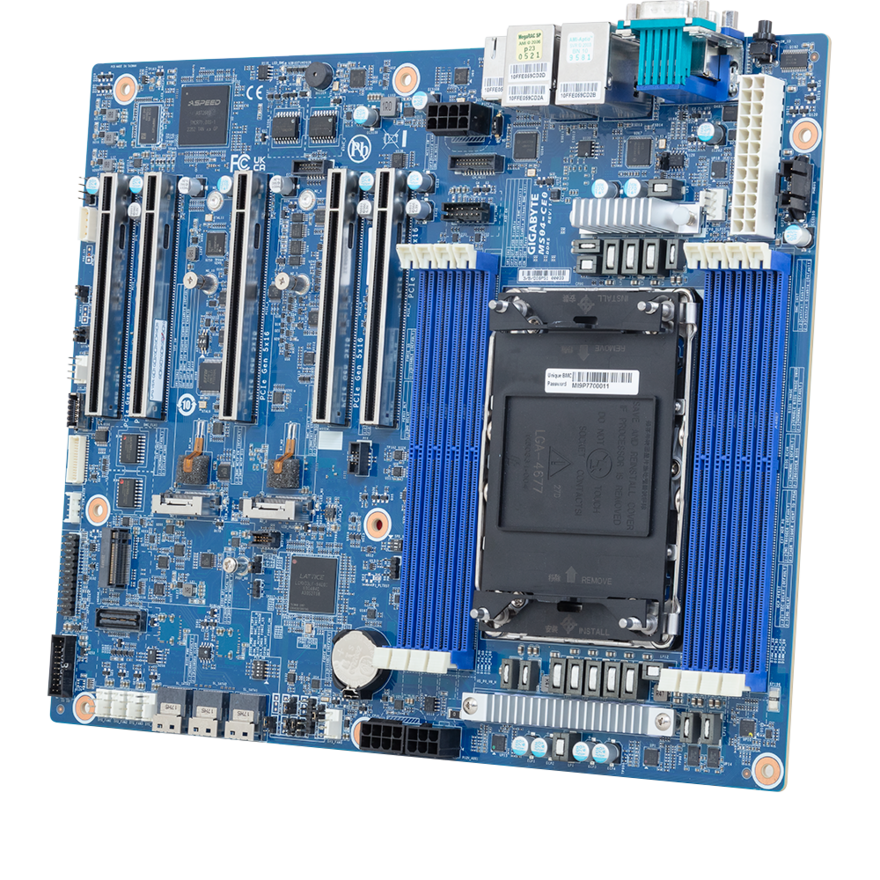

MS04-CE0
Motherboard - Intel® Xeon® 6 Processors - ATX UP
- Single Intel® Xeon® 6 Processors, LGA 4710
- 8-Channel DDR5 RDIMM / MCR DIMM, 8 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x M.2 slots with PCIe Gen5 x2 interface
- 5 x PCIe Gen5 x16 and x8 expansion slots
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor (WxD, mm)
ATX
304.8 x 244
304.8 x 244
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)
Single processor, TDP up to 350W
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)
Single processor, TDP up to 350W
Socket
1 x LGA 4710
Socket E2
Socket E2
Chipset
System on Chip
Memory
8 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s
MCR DIMM: Up to 8000 MT/s
[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s
MCR DIMM: Up to 8000 MT/s
[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
LAN
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
N/A
Storage Interface
SlimSAS:
3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.2:
2 x M.2 (2280/22110), PCIe Gen5 x2
3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.2:
2 x M.2 (2280/22110), PCIe Gen5 x2
RAID
Onboard VROC key header
PCIe Expansion Slots
Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x8)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x8)
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)

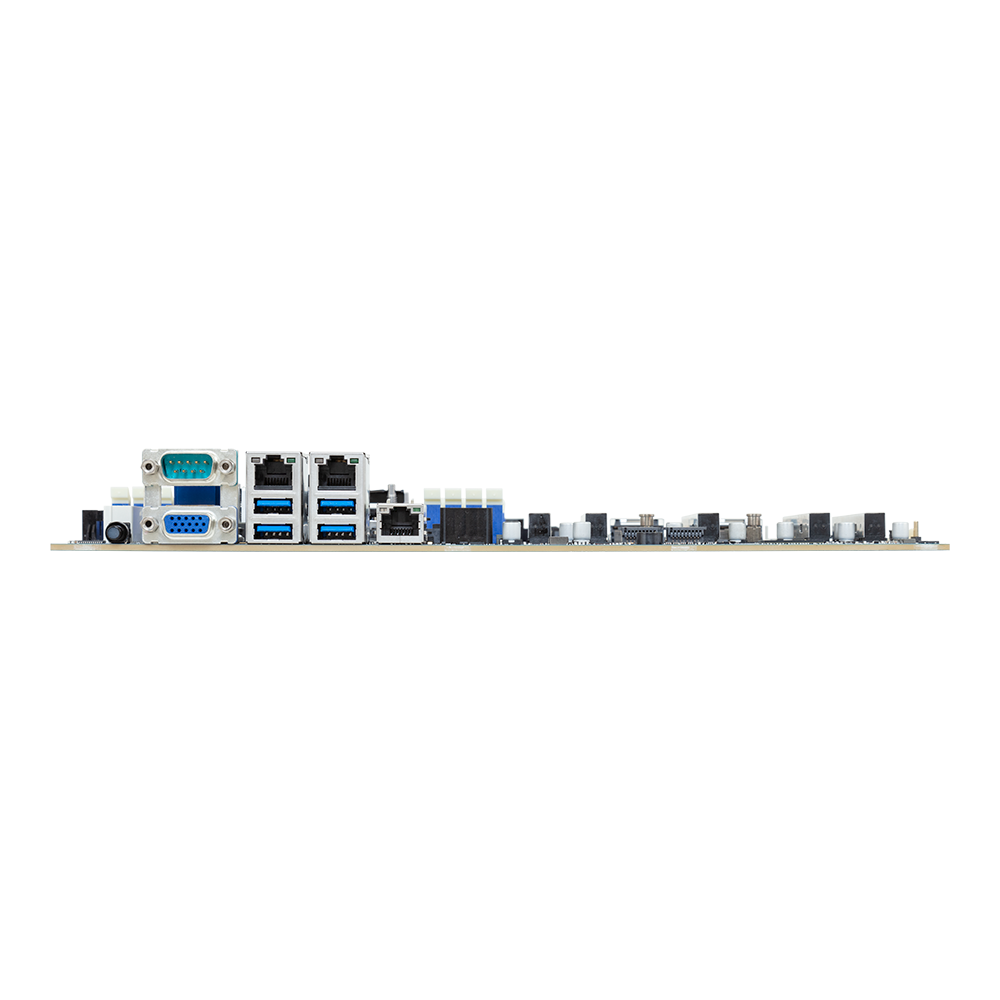

Rear I/O
4 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
OS Compatibility
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MS04-CE0
1 x I/O shield
1 x Quick start guide
2 x Carriers
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
2 x Carriers
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MS04-CE0
10 x I/O shields
20 x Carriers
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
20 x Carriers
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MS04CE0MR-000-1*
Bulk: 9MS04CE0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MS04CE-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
Bulk: 9MS04CE0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MS04CE-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
BIOS
Utility
Firmware
OS
QVL
BIOS
Description
Version
Size
Date
Include microcode update for Processor GNR R1S B0 stepping.
Version : F08
51.35 MB
Sep 09, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
Description
Version
Size
Date
