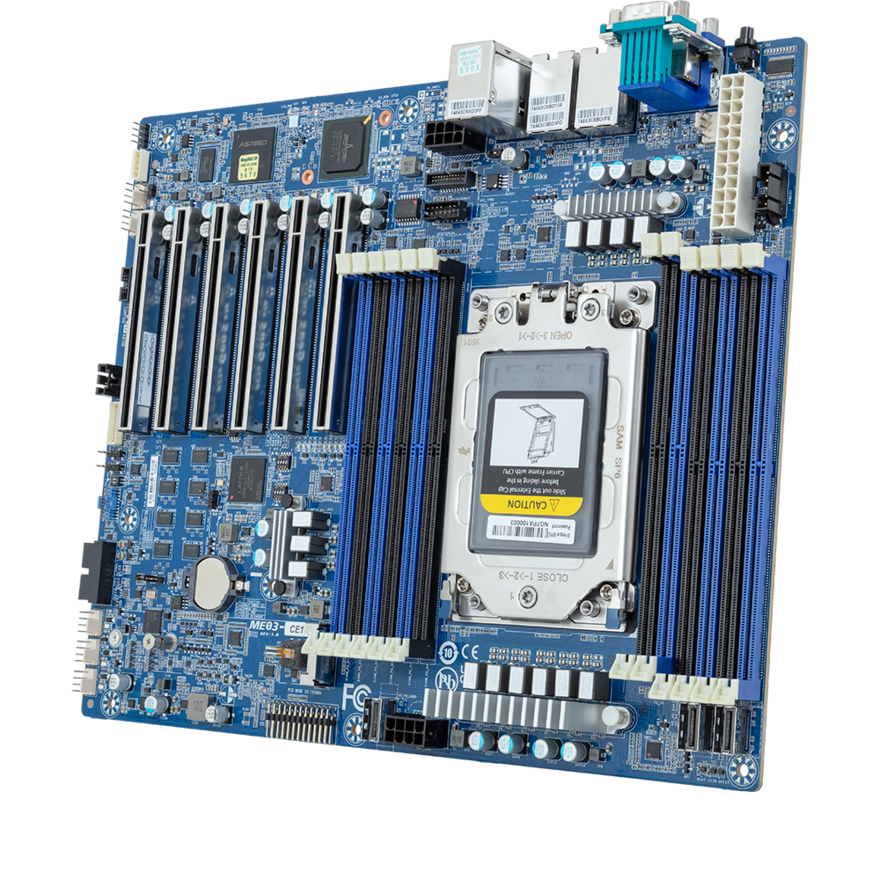

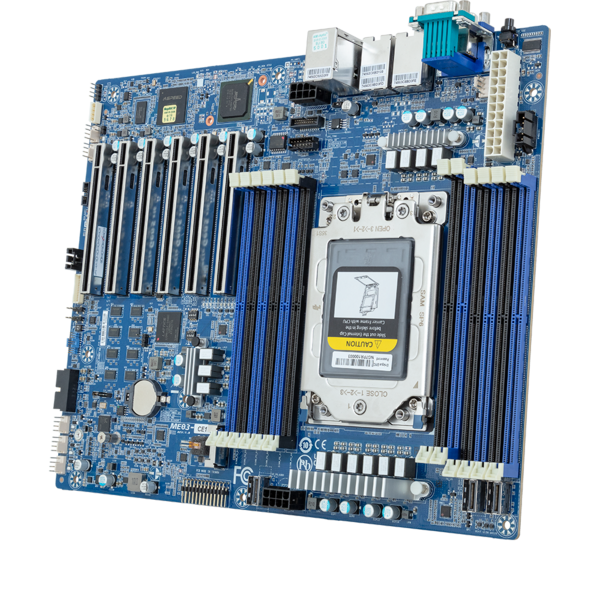

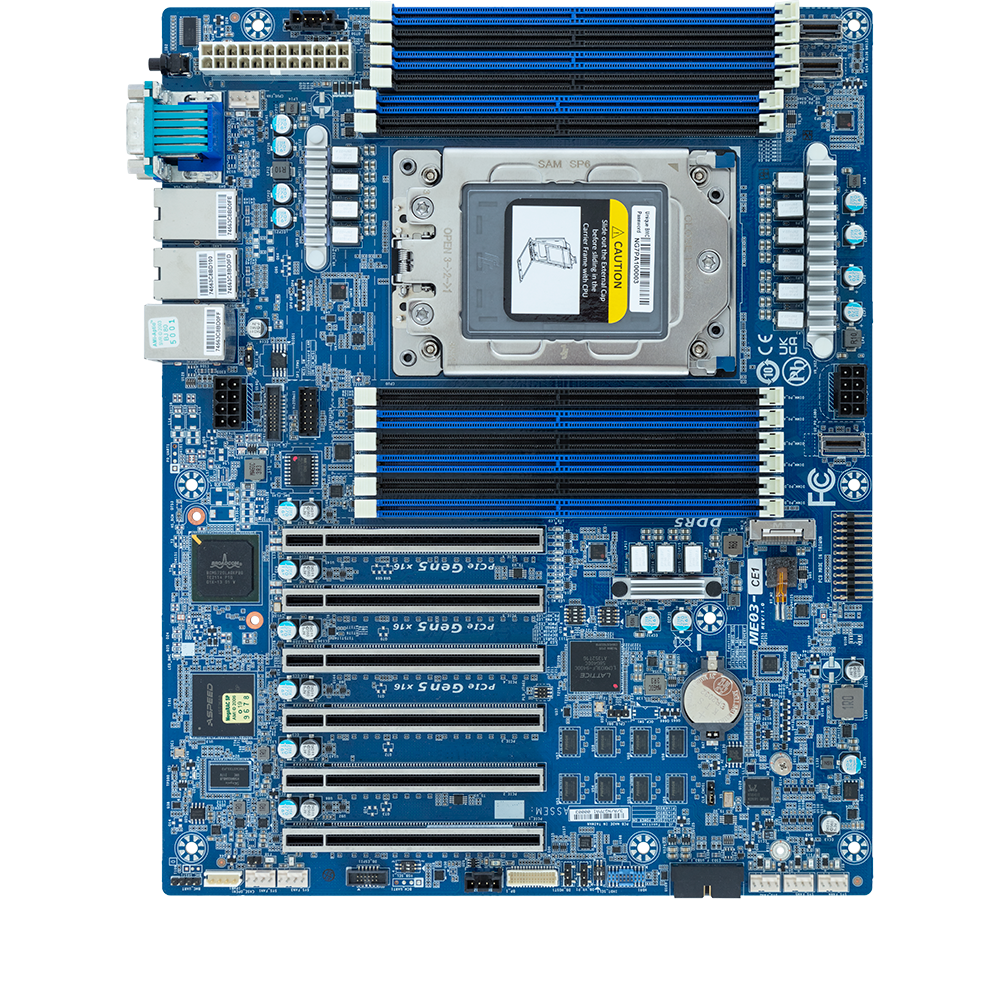

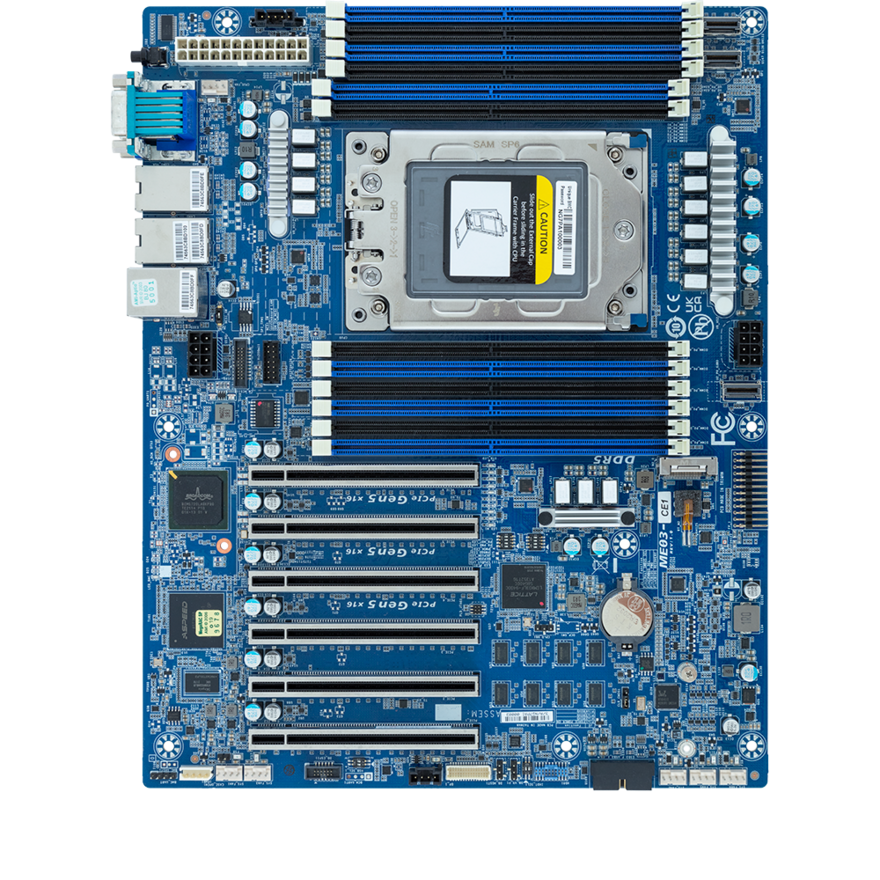

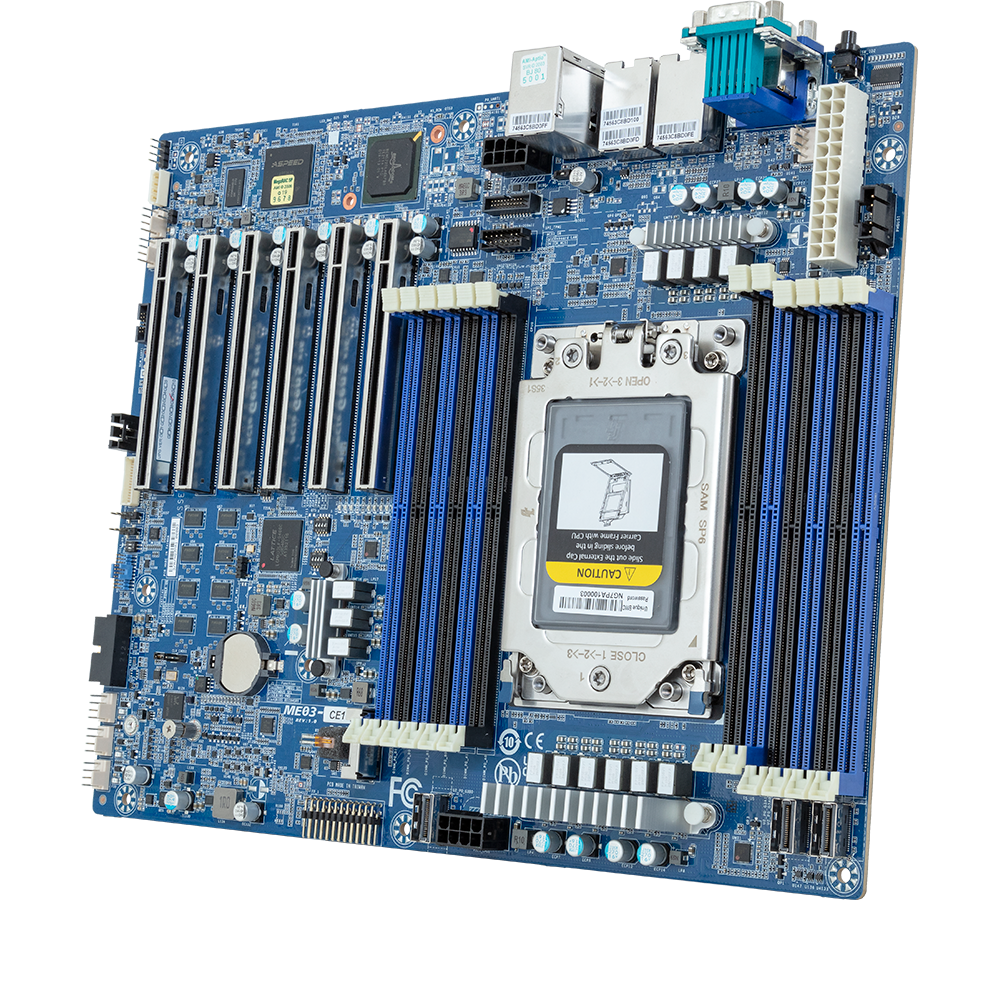

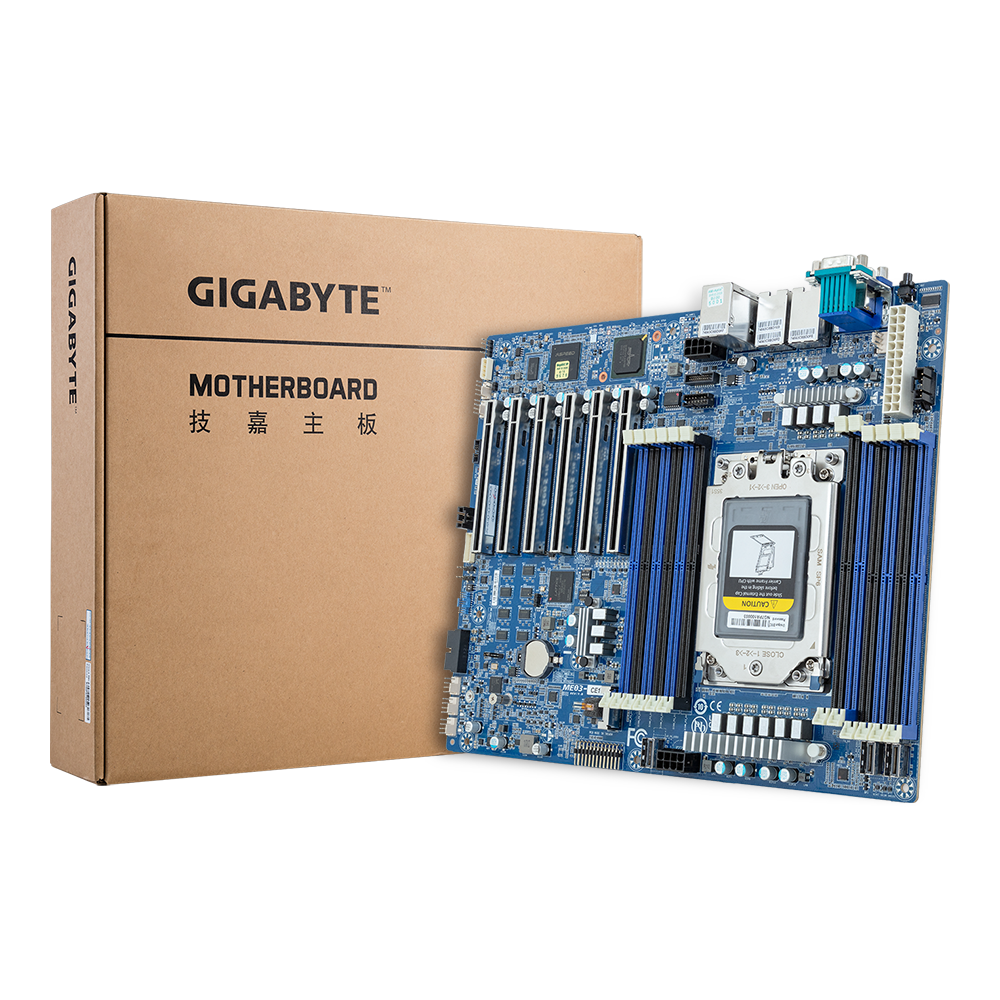

ME03-CE1
Motherboard - AMD EPYC™ 8004 - ATX UP 1Gb/s LAN
- Single AMD EPYC™ 8004 Series Processors
- 6-Channel RDIMM DDR5, 12 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports via Broadcom® BCM5720
- 3 x MCIO 4i connectors with PCIe Gen5 x4 or SATA interface
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x PCIe Gen5 x16 expansion slots
- 3 x PCIe Gen4 x16 and x8 expansion slots
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
ATX
304.8W x 254D mm
304.8W x 254D mm
CPU
AMD EPYC™ 8004 Series Processors
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W
Socket
1 x LGA 4844
Socket SP6
Socket SP6
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
2 x 1Gb/s BASE-T LAN ports (1 x Broadcom® BCM5720)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
3 x MCIO 4i connectors for 3 x Gen5 NVMe or 12 x SATA 6Gb/s
RAID
N/A
Expansion Slots
Slot_6: PCIe x16 (Gen5 x16) slot
Slot_5: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x16 (Gen4 x8) slot
Slot_1: PCIe x16 (Gen4 x16 or x8) slot, shared with Slot_2
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
3 x MCIO 4i (PCIe Gen5 x4 or SATA) connectors
Slot_5: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x16 (Gen4 x8) slot
Slot_1: PCIe x16 (Gen4 x16 or x8) slot, shared with Slot_2
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
3 x MCIO 4i (PCIe Gen5 x4 or SATA) connectors
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x M.2 slot
3 x MCIO 4i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x M.2 slot
3 x MCIO 4i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

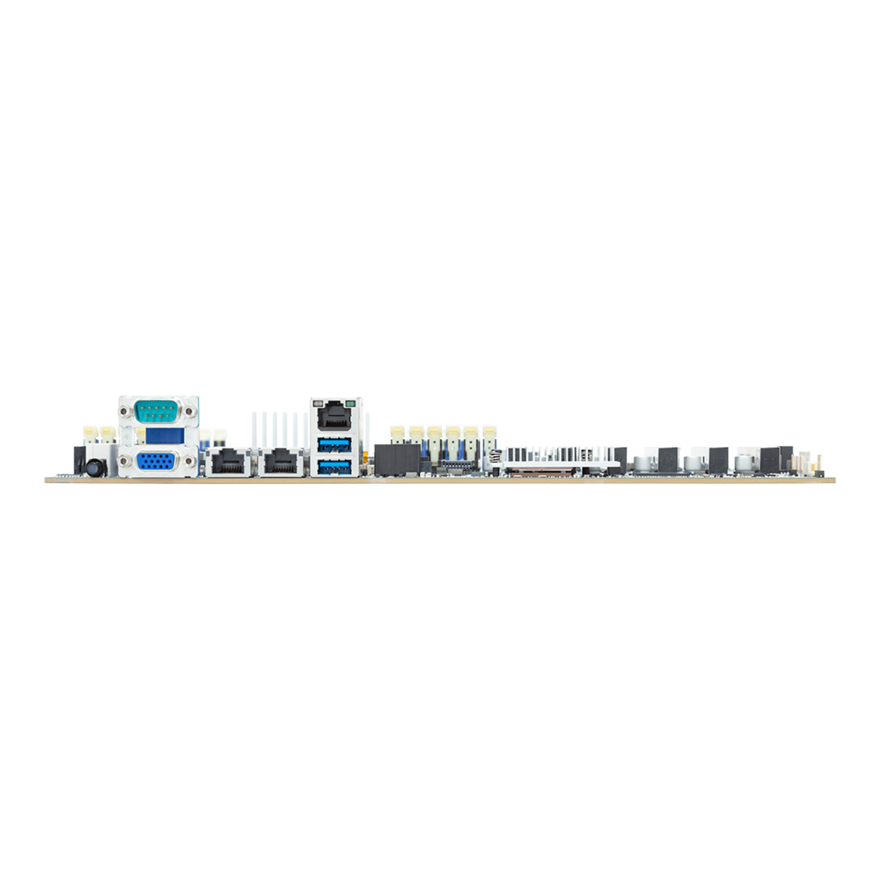

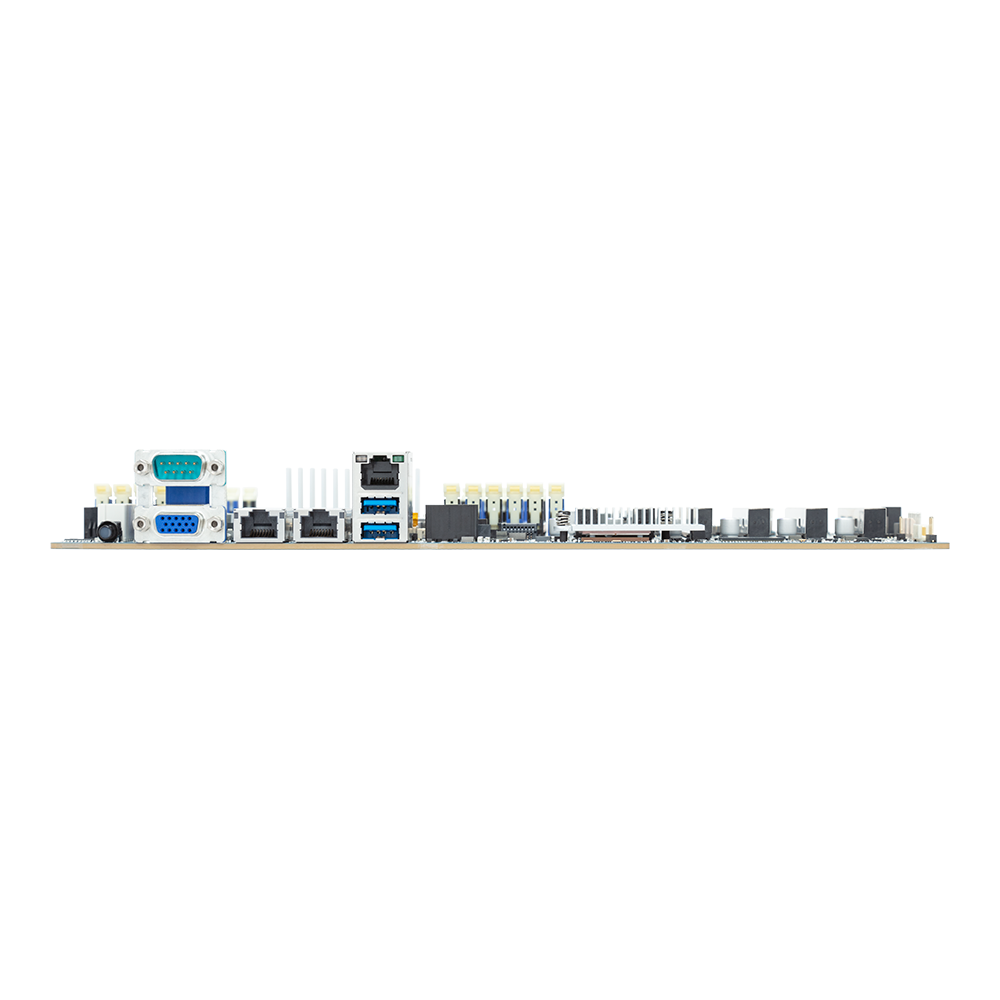

Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Compatibility
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

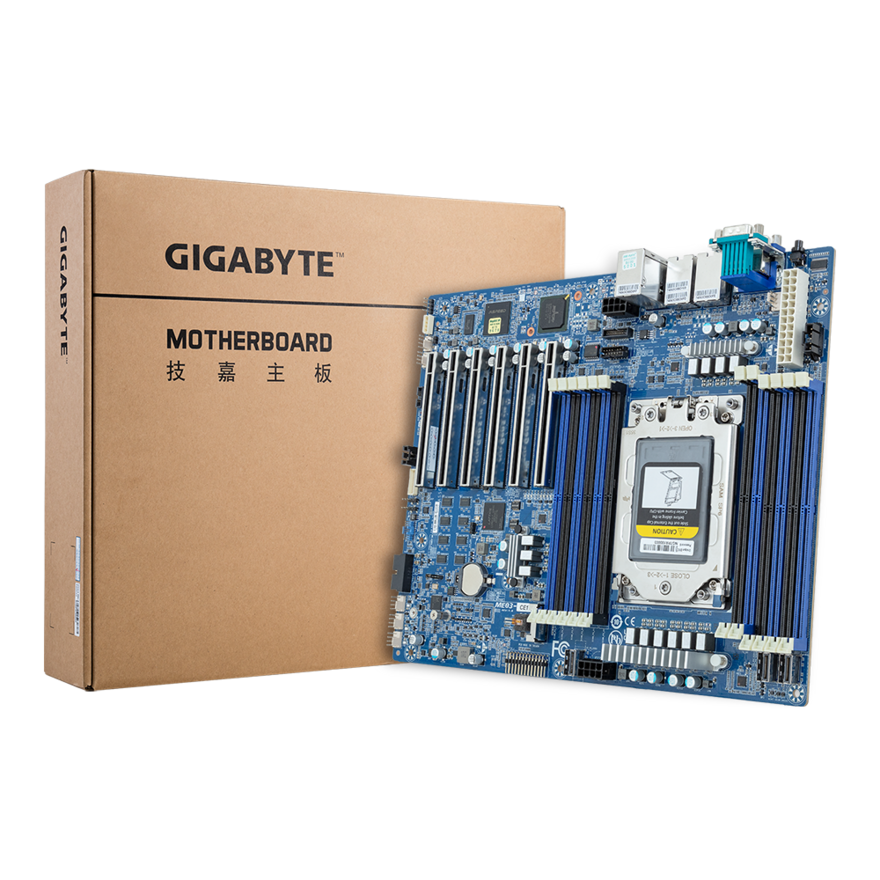

Retail Packaging Content
1 x ME03-CE1
1 x I/O shield
1 x Quick start guide
1 x MCIO 4i to 4 x SATA 6Gb/s cable
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x MCIO 4i to 4 x SATA 6Gb/s cable
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x ME03-CE1
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9ME03CE1MR-000-10*
Bulk: 9ME03CE1NR-000-10*
Part Numbers:
- I/O shield: 12AIO-ME03CE-00R
- MCIO 4i to 4 x SATA cable: 25CF9-780721-A4R
Bulk: 9ME03CE1NR-000-10*
Part Numbers:
- I/O shield: 12AIO-ME03CE-00R
- MCIO 4i to 4 x SATA cable: 25CF9-780721-A4R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
Chipset
Chipset
Version
Size
Date
AMD Chipset Drive
Version : 5.01.02.337
16.61 MB
Sep 21, 2023
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Broadcom® LAN Card Driver
Version : 221.0.5.0
0.53 MB
Sep 21, 2023
OS: Windows Server 2019,Windows Server 2022
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 1.15.01
2.58 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
BIOS
Description
Version
Size
Date
Update AGESA 1.0.0.C and include multiple security updates.
Version : F05
22.54 MB
Jun 11, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
OS Support List
Version : 1.0
0.17 MB
Dec 05, 2023
AMD EPYC™ 8004 Series Processors OS Support List
