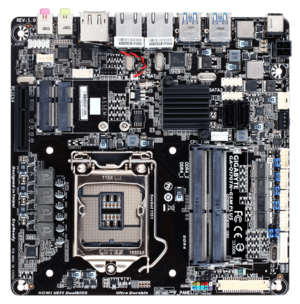

GA-Q170TN-T20-GSM PLUS (rev. 1.0)
- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4 SO-DIMM, 2 DIMMs
- 2 x RS232 / 422 / 485, 2 x RS232, Digital I/O 4-in/4-out
- Mini-PCIe Slot for Full / Half-Height WIFI Card Support
- Mini-PCIe Dual Purpose Slot for mSATA SSD Support
- LVDS Header for System Integrated Flat Panel Display Support
- Rear Panel DisplayPort, HDMI 1.4 Ports & D-Sub Header for Multi-Display Connection
- Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
- Dual Intel® GbE LAN for WOL and PXE Support
- Features 4 USB 3.0 and 4 USB 2.0 Ports
- GIGABYTE UEFI BIOS Technology
- Thin Mini-ITX 170x170mm Form Factor with 12~24V DC-In Power Design
- Intel® vPro Technology Support
- TPM 2.0 onboard

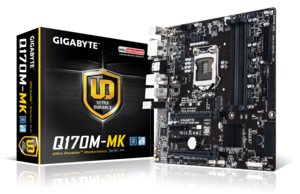

GA-Q170M-MK (rev. 1.0)
- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High Quality Audio Capacitors
- Dual Intel® GbE LAN
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- Dual HDMI , DVI-D, DVI-I
- GIGABYTE UEFI BIOS Technology
- Support Intel vPro Techonogy
- Support Intel® Small Business Advantage

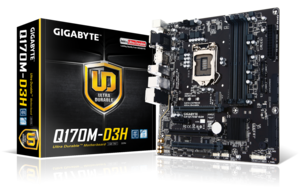

GA-Q170M-D3H (rev. 1.0)
- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High Quality Audio Capacitors
- Intel® GbE LAN
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- DisplayPort , HDMI , DVI, D-SUB
- GIGABYTE UEFI BIOS Technology
- Support Intel vPro Techonogy
- Support Intel® Small Business Advantage
