- H273-Z81-AAW1
H273-Z81- AAW1

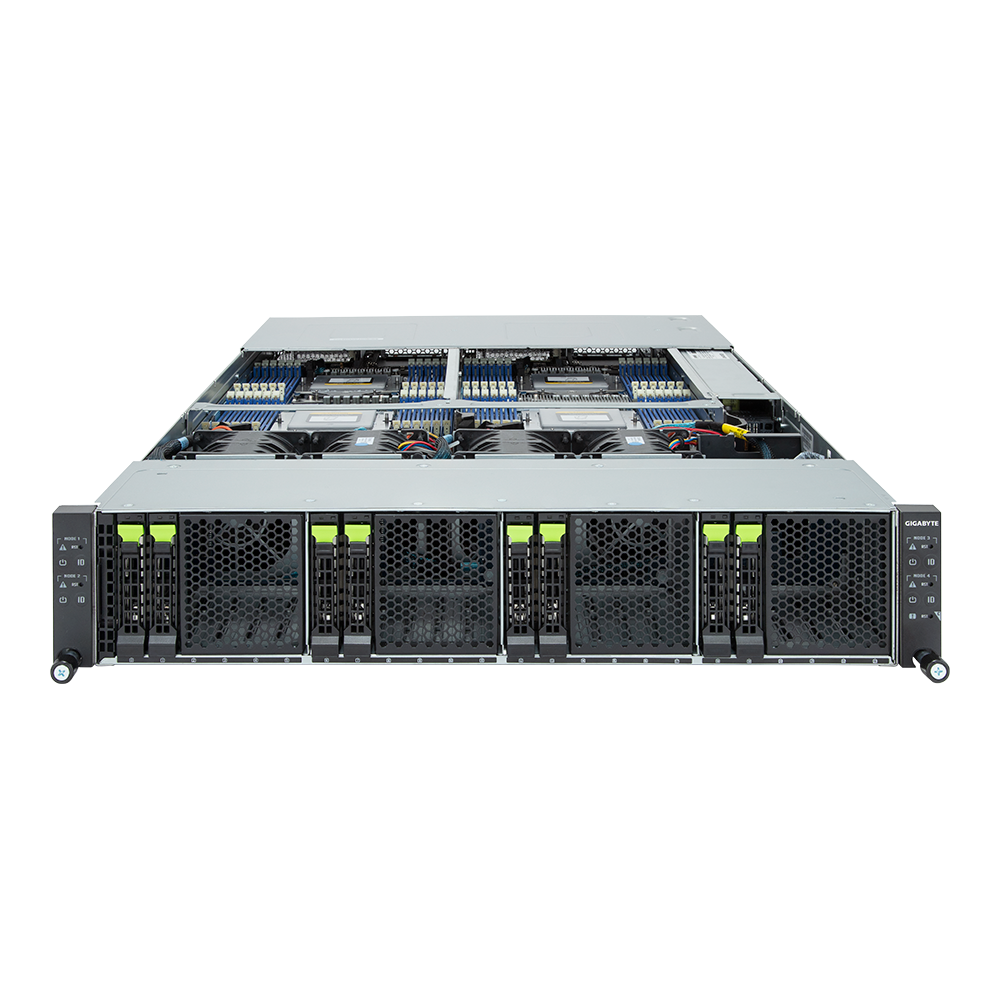

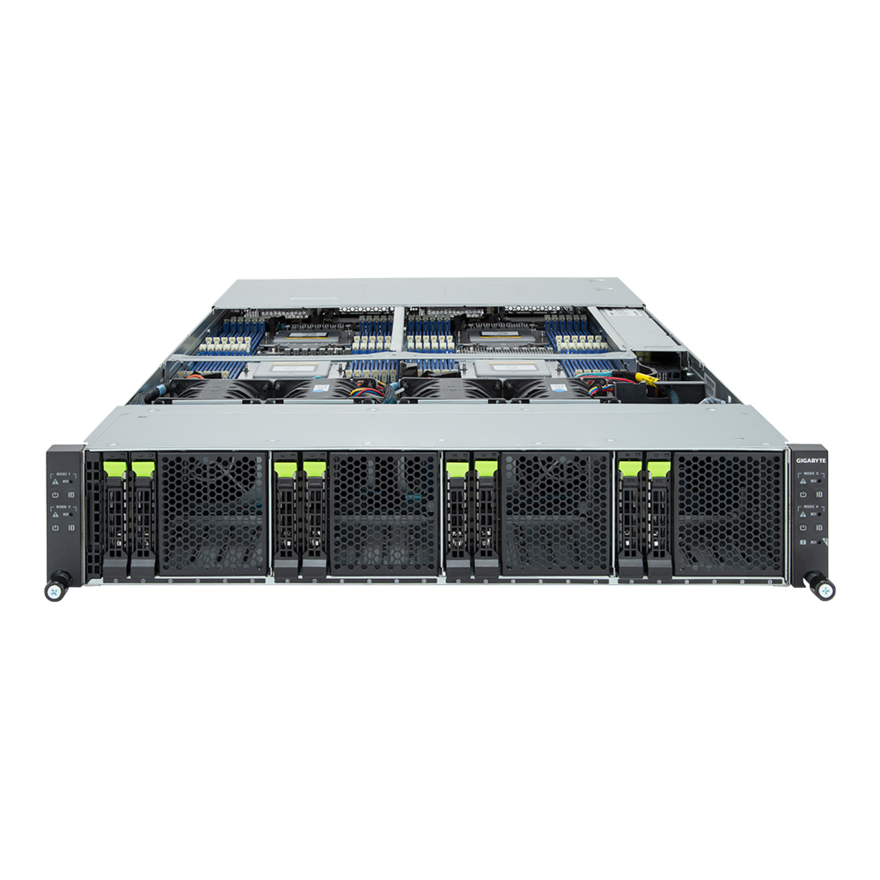

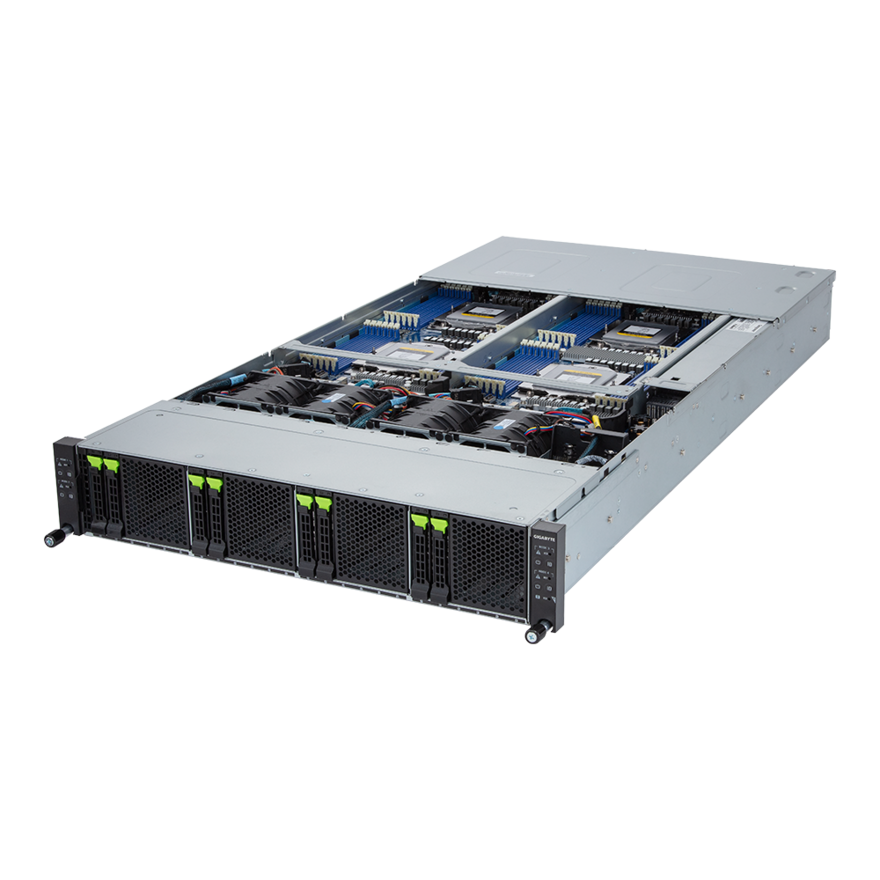

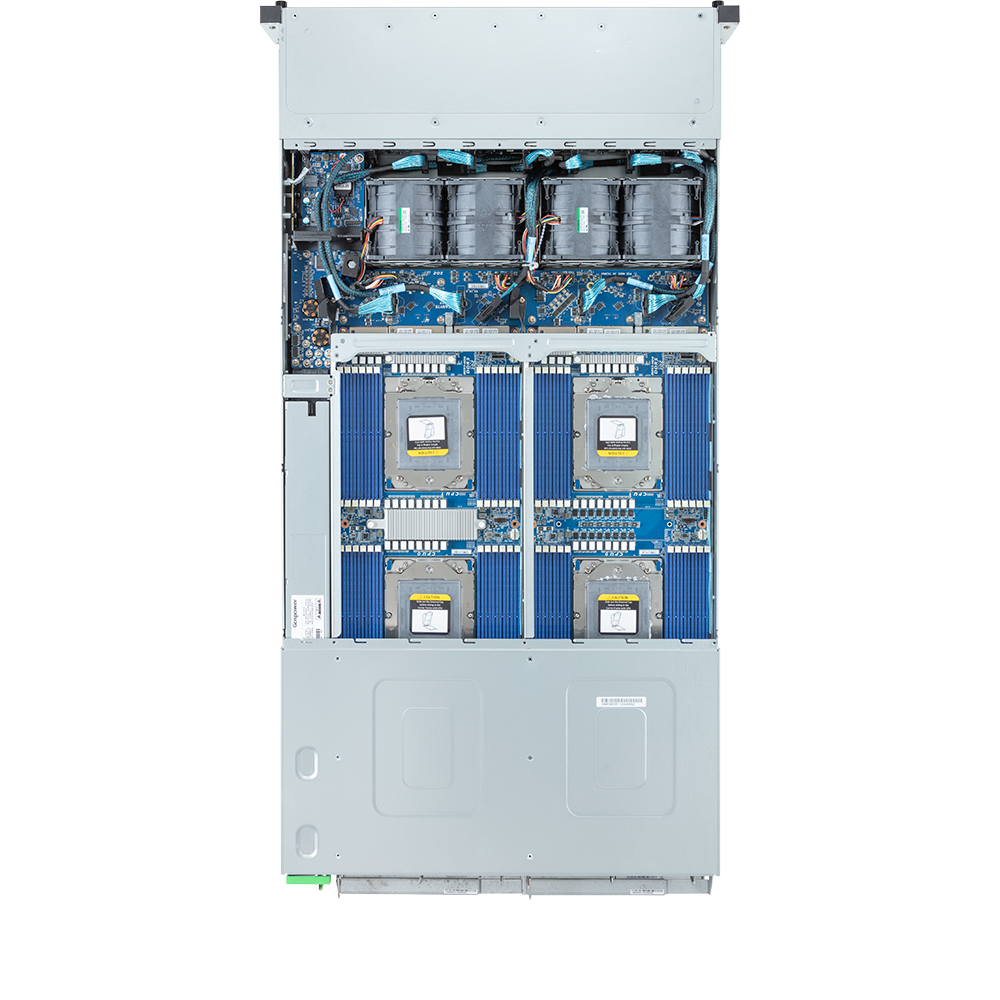

High Density Server - AMD EPYC™ 9004 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA/SAS 3000W
- 2U 4-node rear access server system
- Dual AMD EPYC™ 9004 Series Processors per node
- 12-Channel DDR5 RDIMM, 96 x DIMMs
- Dual ROM Architecture
- 8 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 4 x M.2 slots with PCIe Gen4 x4 interface (optional)
- 8 x LP PCIe Gen5 x16 slots
- 4 x OCP 3.0 Gen5 x16 slots
- Dual 3000W 80 PLUS Titanium redundant power supply
Quick Shipping
Streamline the Process
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 877
440 x 87.5 x 877

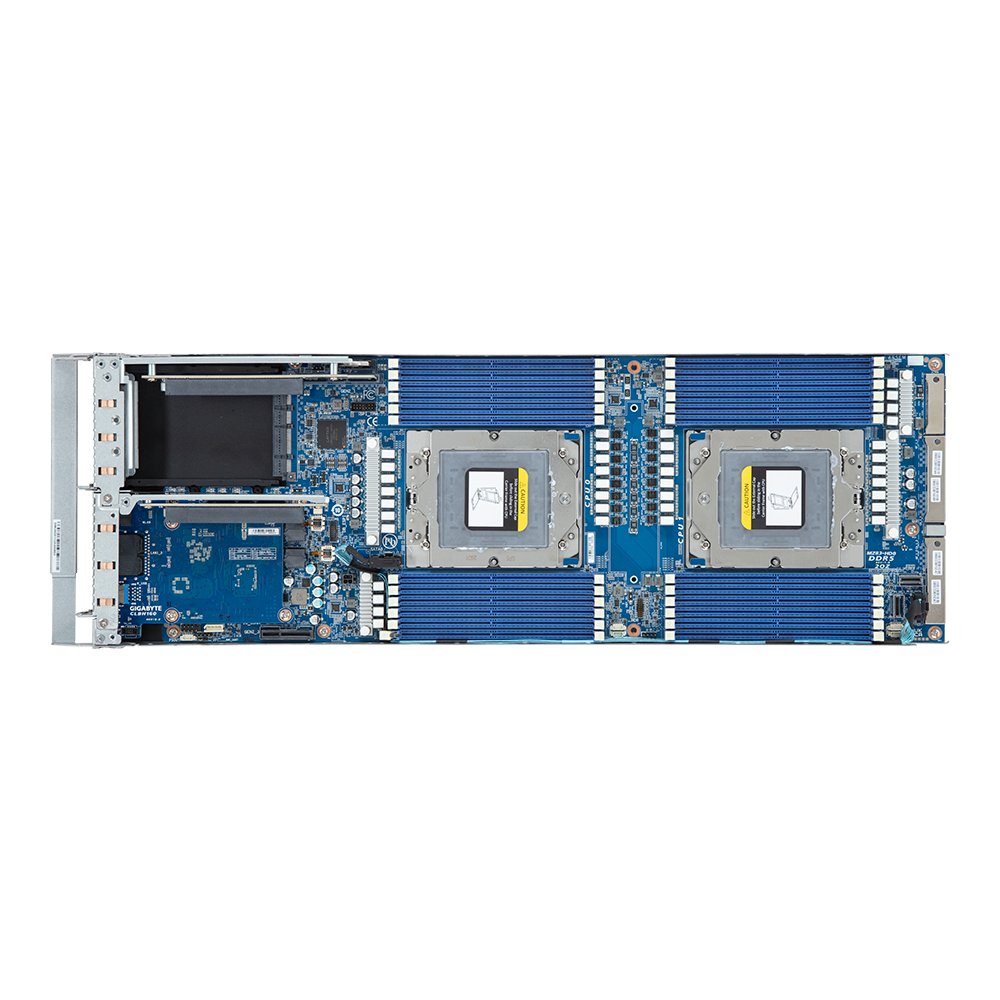

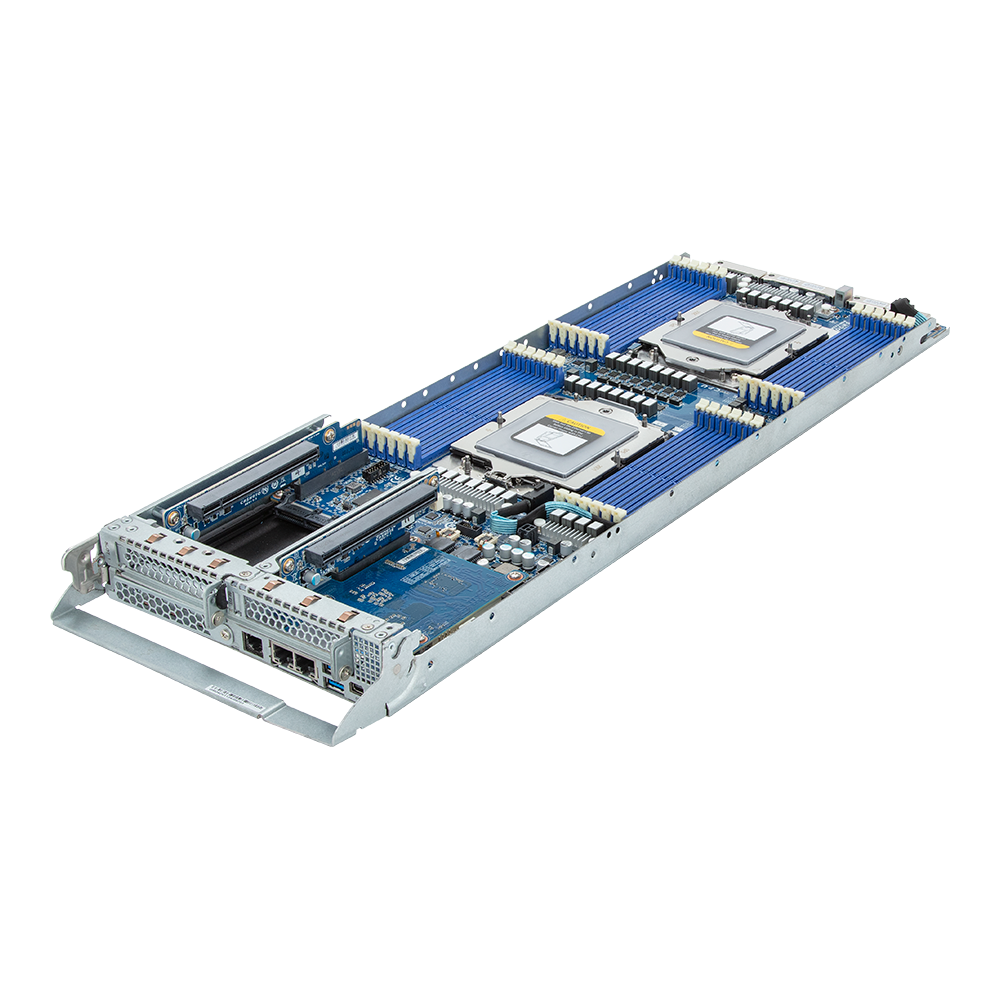

Motherboard
MZ83-HD0
CPU
AMD EPYC™ 9004 Series Processors
Dual processor per node, 5nm technology
Up to 84 cores, 168 threads per processor
Supports CPU 240W at ambient 35°C
Supports CPU 300W at ambient 30°C with 1 x low-profile card
Supports CPU 300W at ambient 25°C if using OCP 3.0
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor per node, 5nm technology
Up to 84 cores, 168 threads per processor
Supports CPU 240W at ambient 35°C
Supports CPU 300W at ambient 30°C with 1 x low-profile card
Supports CPU 300W at ambient 25°C if using OCP 3.0
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
Per Node:
2 x LGA 6096
Total:
8 x LGA 6096
Socket SP5
2 x LGA 6096
Total:
8 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
Per node:
24 x DIMM slots
Total:
96 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
24 x DIMM slots
Total:
96 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
LAN
Per node:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x 10/100/1000 Mbps Management LAN
Note: Spanning Tree Protocol (STP) must be enabled in LAN switch function if using ring topology.
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x 10/100/1000 Mbps Management LAN
Note: Spanning Tree Protocol (STP) must be enabled in LAN switch function if using ring topology.
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)
Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)
Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Per node:
Riser Card CRSH01Q:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Optional 1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Total:
Riser Card CRSH01Q x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
Riser Card CRSH01R x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function
Optional 4 x M.2 slots (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards
Riser Card CRSH01Q:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Optional 1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Total:
Riser Card CRSH01Q x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
Riser Card CRSH01R x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function
Optional 4 x M.2 slots (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards
Internal I/O
Per node:
1 x TPM header
1 x TPM header
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.

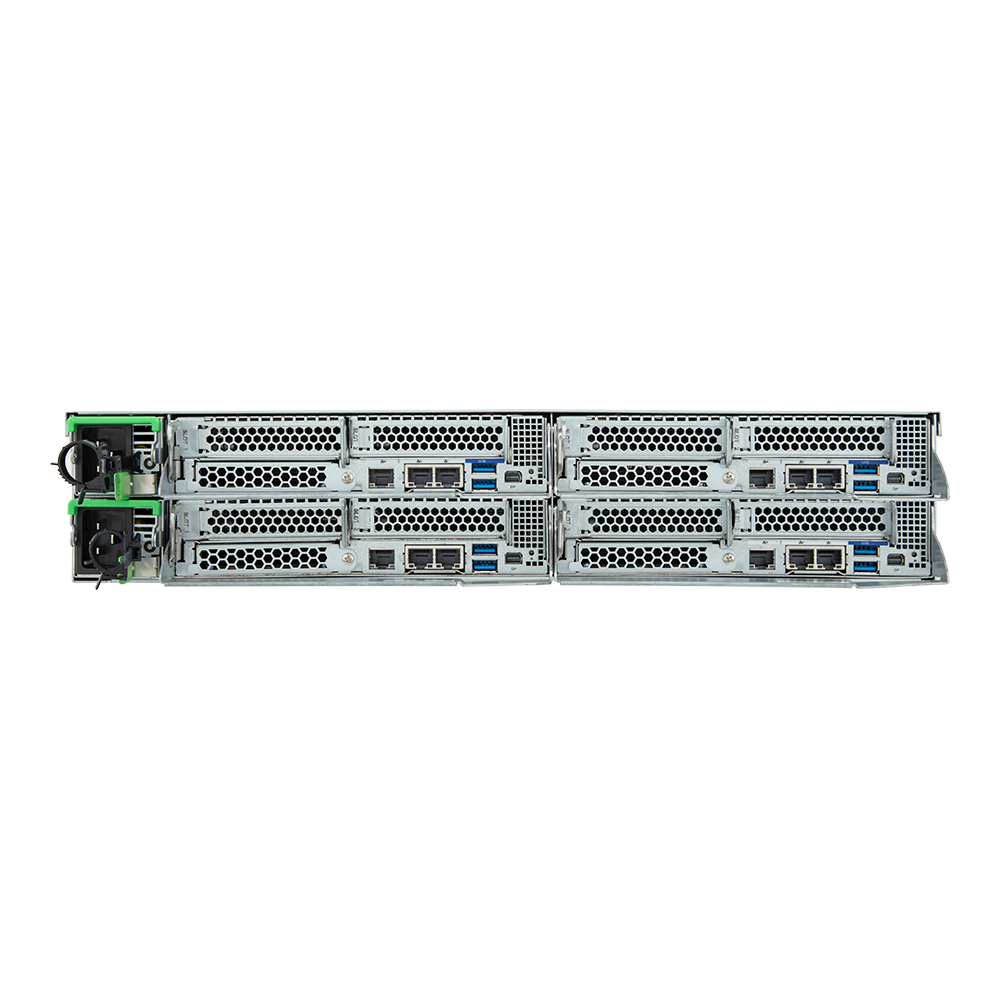

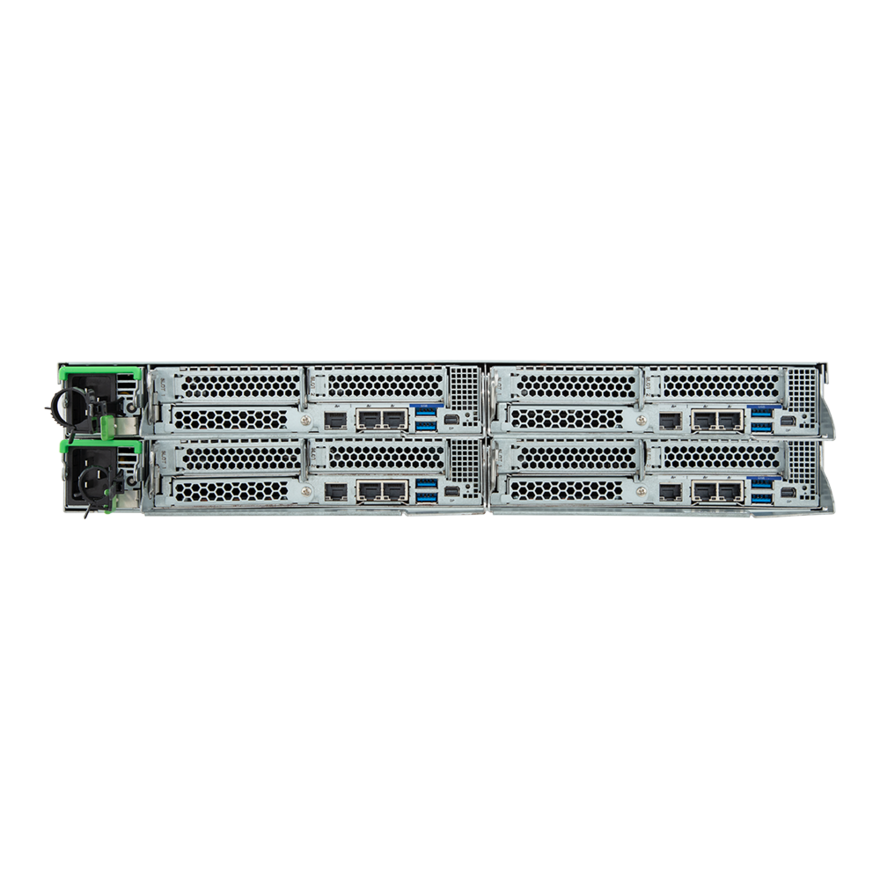

Rear I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x System status LED
Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
4 x System status LEDs
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x System status LED
Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
4 x System status LEDs
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Citrix Hypervisor 8.2 LTSR CU1
VMware ESXi 8.0
Windows Server 2022 (x64)
Additional certifications:
Citrix Hypervisor 8.2 LTSR CU1
VMware ESXi 8.0
Windows Server 2022 (x64)
System Fans
4 x 80x80x80mm (16,900rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 51.6 kg
Gross Weight: 52.48 kg
Gross Weight: 52.48 kg
Packaging Dimensions
1179 x 700 x 380 mm
Packaging Content
1 x H273-Z81-AAW1
8 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
8 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NH273Z81DR000AAW1*
- Motherboard: 9MZ83HD0UR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- CPU heatsink: 25ST1-25320N-M1R/25ST1-25320Q-M1R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH081: 9CBPH081NR-00
- Fan module: 25ST2-888022-A0R
- Riser card - CRSH01Q: 9CRSH01QNR-00
- Riser card - CRSH01R: 9CRSH01RNR-00
- I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-230009-L0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- RMA packaging: 6NH273Z81SR-RMA-A100
- Motherboard: 9MZ83HD0UR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- CPU heatsink: 25ST1-25320N-M1R/25ST1-25320Q-M1R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH081: 9CBPH081NR-00
- Fan module: 25ST2-888022-A0R
- Riser card - CRSH01Q: 9CRSH01QNR-00
- Riser card - CRSH01R: 9CRSH01RNR-00
- I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-230009-L0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- RMA packaging: 6NH273Z81SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
AMD Chipset Driver
Version : 4.06.27.500
16.58 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 27.4
755.19 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
BIOS
Description
Version
Size
Date
1) Fixed PKfail Vulnerability.
2) Optimized WebUI HDD & CX7 Invertory information.
2) Optimized WebUI HDD & CX7 Invertory information.
Version : F27
20.93 MB
Aug 26, 2024
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F25
20.93 MB
Jul 11, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Description
Version
Size
Date
BMC firmware with embedded GIGABYTE Management Console
(AST2600)
(AST2600)
Version : 13.06.09
123.77 MB
Sep 05, 2024
English
CMC Firmware (AST2520)
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Version : 12.41.36
83.16 MB
Nov 02, 2023
English
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
OS Support List
Version : R4
0.17 MB
Jul 15, 2024
AMD EPYC™ 9004 Series Processors OS Support List
RESOURCES
Others
Back to H273-Z81-AAW1
