H223-V10-AAW1
HPC/AI Arm Server - NVIDIA GH200 Grace Hopper Superchip - 2U 2-Node 8-Bay Gen5 NVMe
- CPU+GPU design for giant-scale AI and HPC

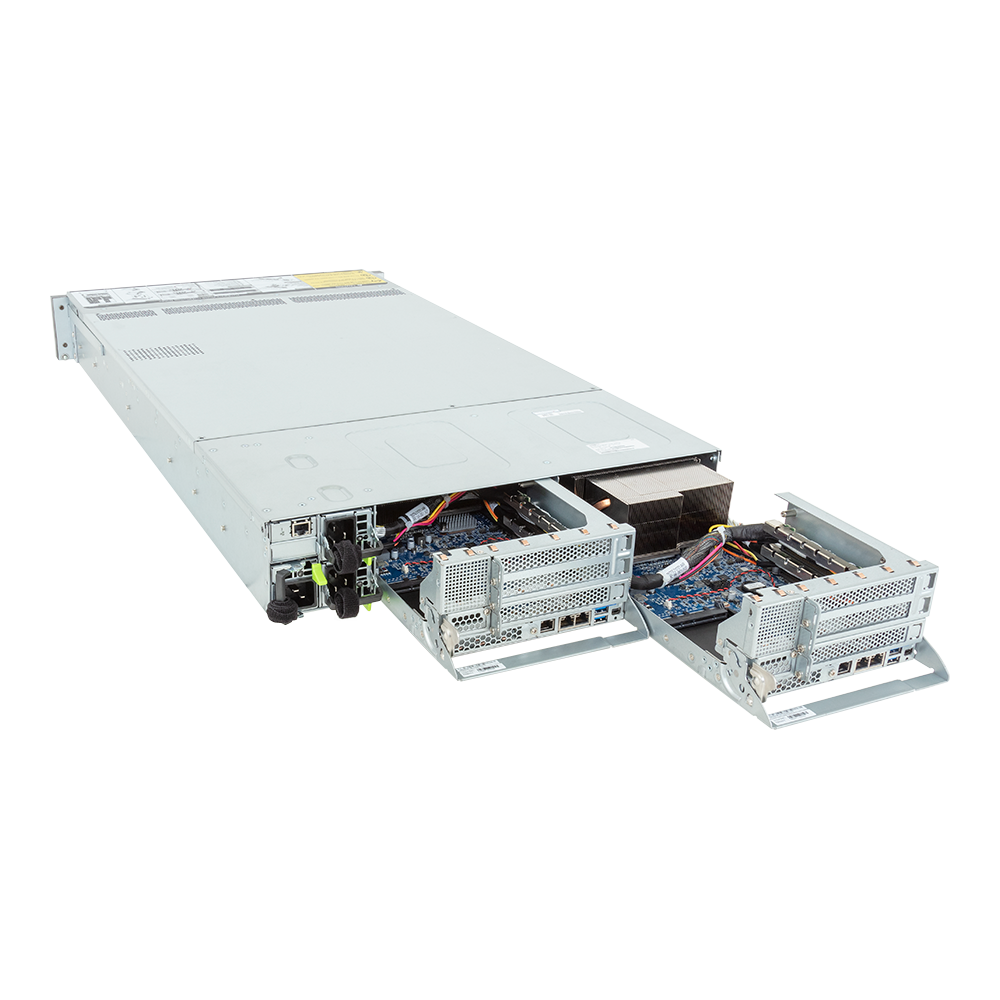

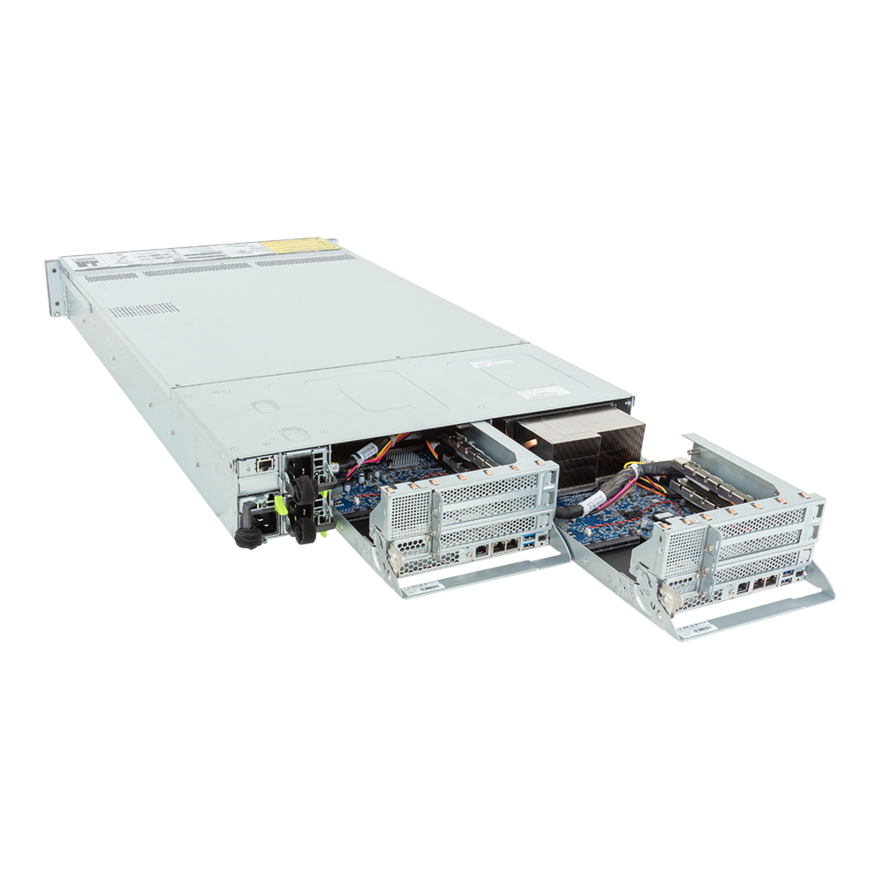

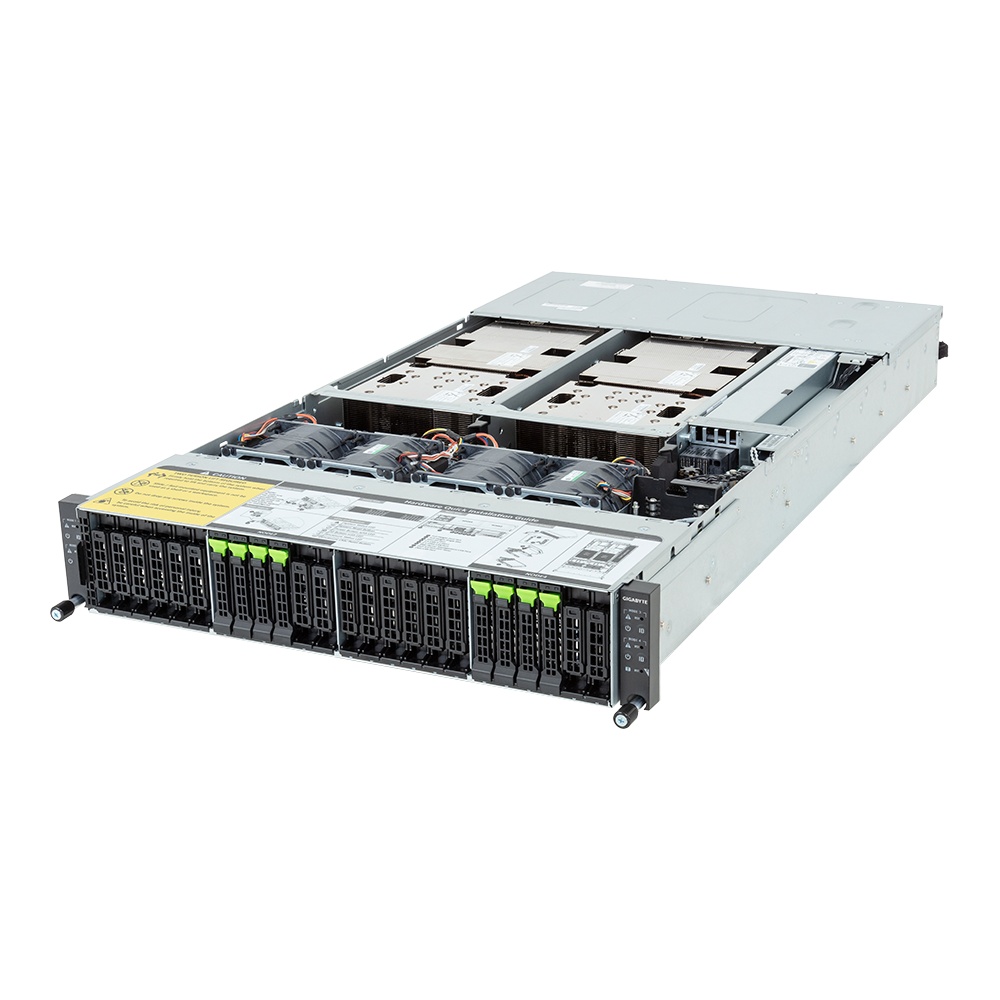

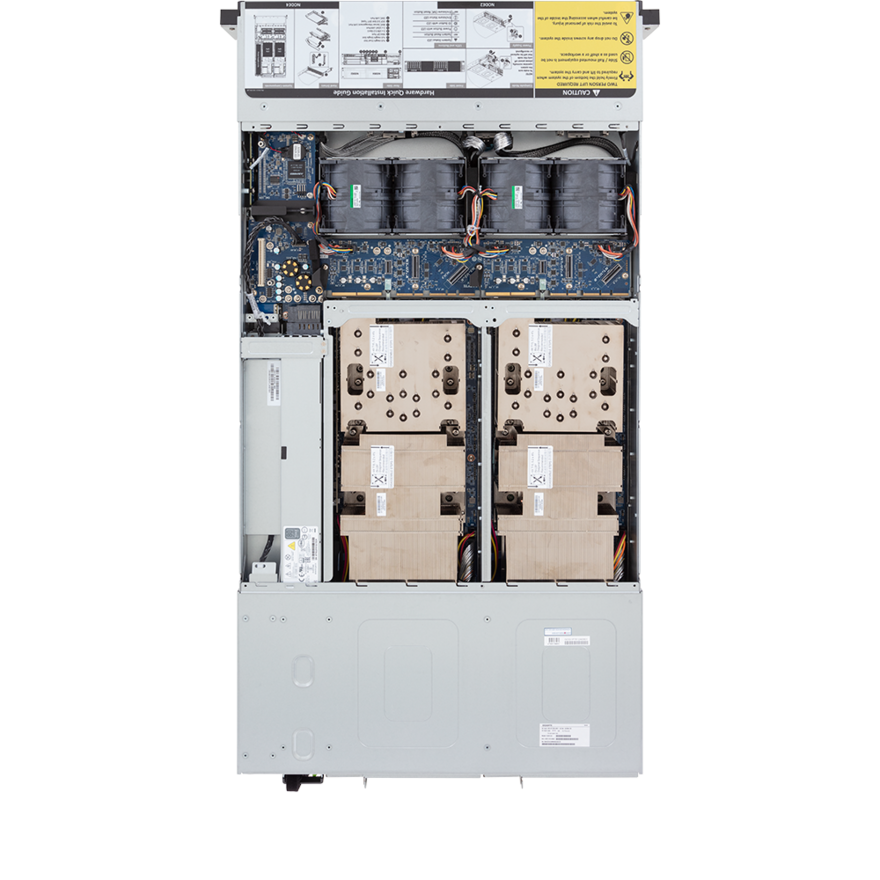

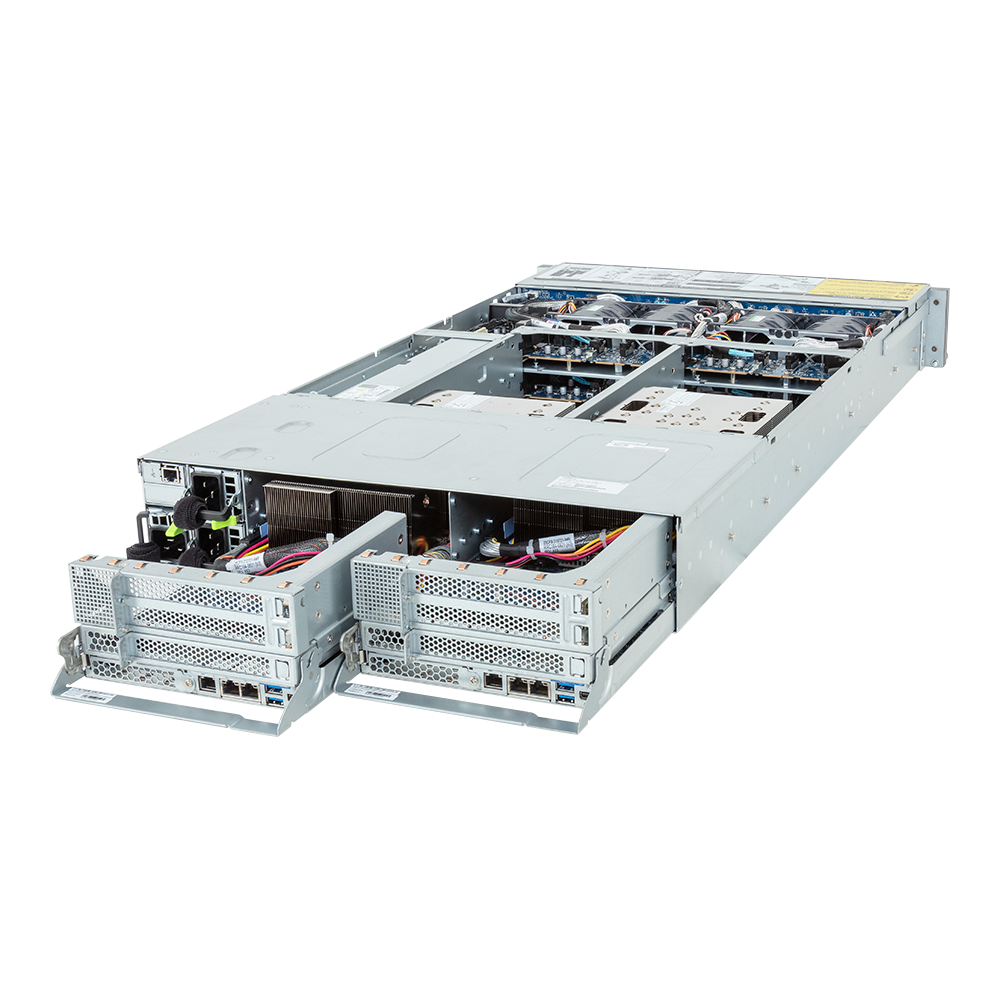

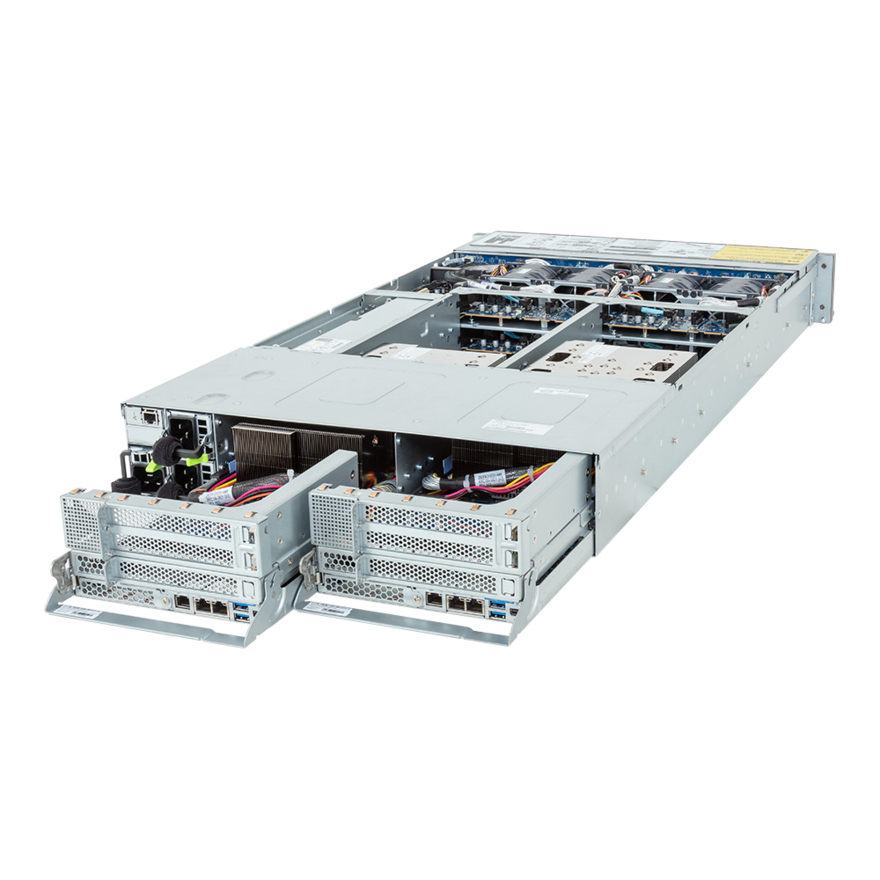

- 2U 2-node rear access server system
- NVIDIA GH200 Grace Hopper Superchip
- 900GB/s NVIDIA® NVLink®-C2C Interconnect
- Up to 480GB CPU LPDDR5X ECC memory per module
- Up to 96GB GPU HBM3 (or upcoming 144GB GPU HBM3e) per module
- Compatible with NVIDIA BlueField®-3 DPUs
- 4 x 10Gb/s LAN ports via Intel® X550-AT2
- 1 x CMC port
- 8 x 2.5" Gen5 NVMe hot-swappable bays
- 4 x M.2 slots with PCIe Gen5 x4 interface
- 2 x FHHL Dual slot PCIe Gen5 x16 slots
- 2 x FHHL Single slot PCIe Gen5 x16 slots
- 2 x OCP 3.0 Gen5 x16 slots
- 2+1 3000W 80 PLUS Titanium redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 2-Node - Rear access
440 x 87.5 x 850
440 x 87.5 x 850

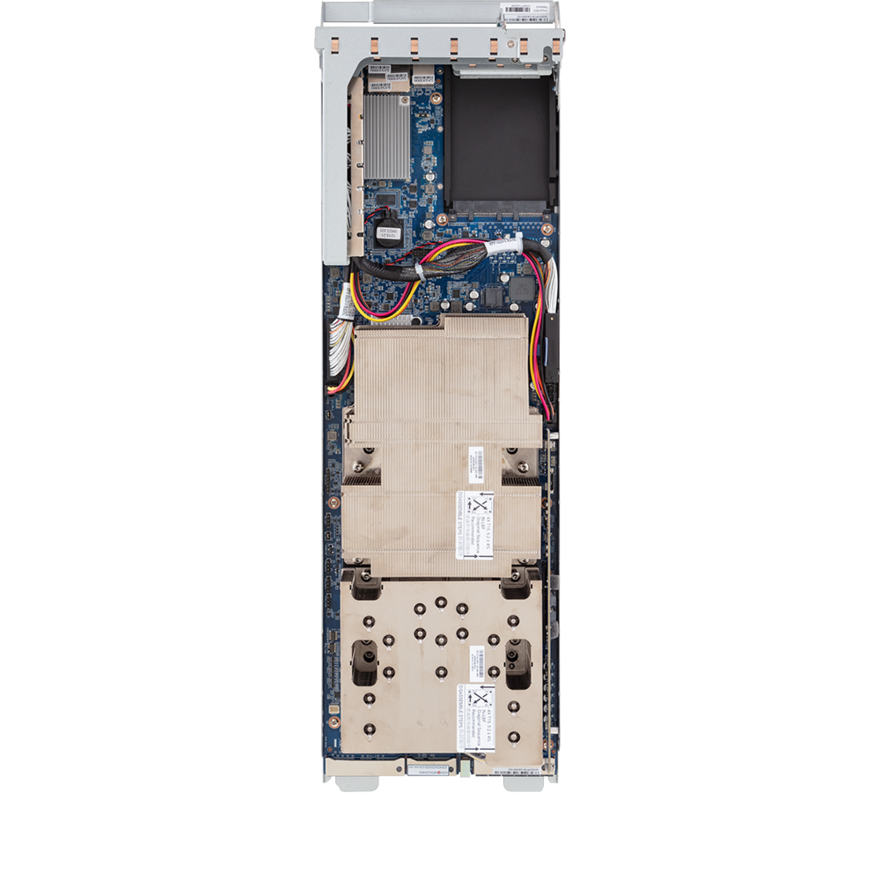

Motherboard
MV13-HD0

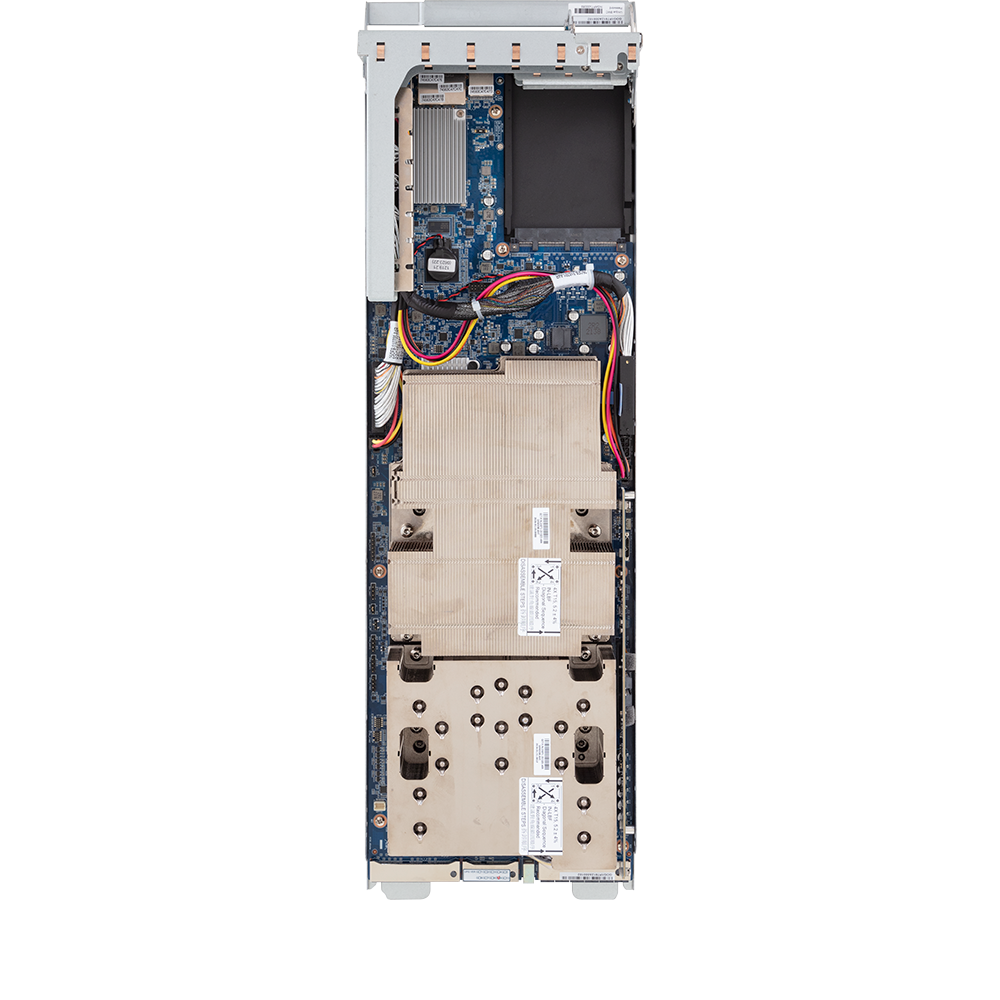

Superchip
NVIDIA GH200 Grace Hopper Superchip:
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Hopper™ GPU
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 1000W (CPU + GPU + memory)
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Hopper™ GPU
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 1000W (CPU + GPU + memory)
Memory
Per node:
NVIDIA Grace CPU:
- Up to 480GB of LPDDR5X memory with ECC
- Memory bandwidth up to 512GB/s
NVIDIA Hopper GPU:
- Up to 96GB HBM3
or 144GB HBM3e (coming soon)
- Memory bandwidth up to 4TB/s (or 4.9TB/s)
NVIDIA Grace CPU:
- Up to 480GB of LPDDR5X memory with ECC
- Memory bandwidth up to 512GB/s
NVIDIA Hopper GPU:
- Up to 96GB HBM3
or 144GB HBM3e (coming soon)
- Memory bandwidth up to 4TB/s (or 4.9TB/s)
LAN
Per node:
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Total:
4 x 10Gb/s LAN ports (2 x Intel® X550-AT2)
Support NCSI function
2 x 10/100/1000 Mbps Management LAN
1 x CMC port
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Total:
4 x 10Gb/s LAN ports (2 x Intel® X550-AT2)
Support NCSI function
2 x 10/100/1000 Mbps Management LAN
1 x CMC port
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
4 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89048
Total:
8 x 2.5" Gen5 NVMe hot-swappable bays, from CPU
4 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89048
Total:
8 x 2.5" Gen5 NVMe hot-swappable bays, from CPU
SAS
N/A
RAID
N/A
Expansion Slots
Per node:
PCIe Cable x 2:
- *1 x PCIe x16 (Gen5 x16) FHHL slot (Dual slot), from CPU
- 1 x PCIe x16 (Gen5 x16) FHHL slot (Single slot), from CPU
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU
Supports NCSI function
2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Support 2280/22110 cards
Total:
PCIe Cable x 4:
- *2 x PCIe x16 (Gen5 x16) FHHL slots (Dual slot), from CPU
- 2 x PCIe x16 (Gen5 x16) FHHL slots (Single slot), from CPU
2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function
4 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Support 2280/22110 cards
*When BlueField-3 DPUs are installed, the ambient temperature is limited to 25℃.
PCIe Cable x 2:
- *1 x PCIe x16 (Gen5 x16) FHHL slot (Dual slot), from CPU
- 1 x PCIe x16 (Gen5 x16) FHHL slot (Single slot), from CPU
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU
Supports NCSI function
2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Support 2280/22110 cards
Total:
PCIe Cable x 4:
- *2 x PCIe x16 (Gen5 x16) FHHL slots (Dual slot), from CPU
- 2 x PCIe x16 (Gen5 x16) FHHL slots (Single slot), from CPU
2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function
4 x M.2 slots:
- M-key
- PCIe Gen5 x4, from PEX89048
- Support 2280/22110 cards
*When BlueField-3 DPUs are installed, the ambient temperature is limited to 25℃.
Internal I/O
Per node:
1 x TPM header
1 x TPM header

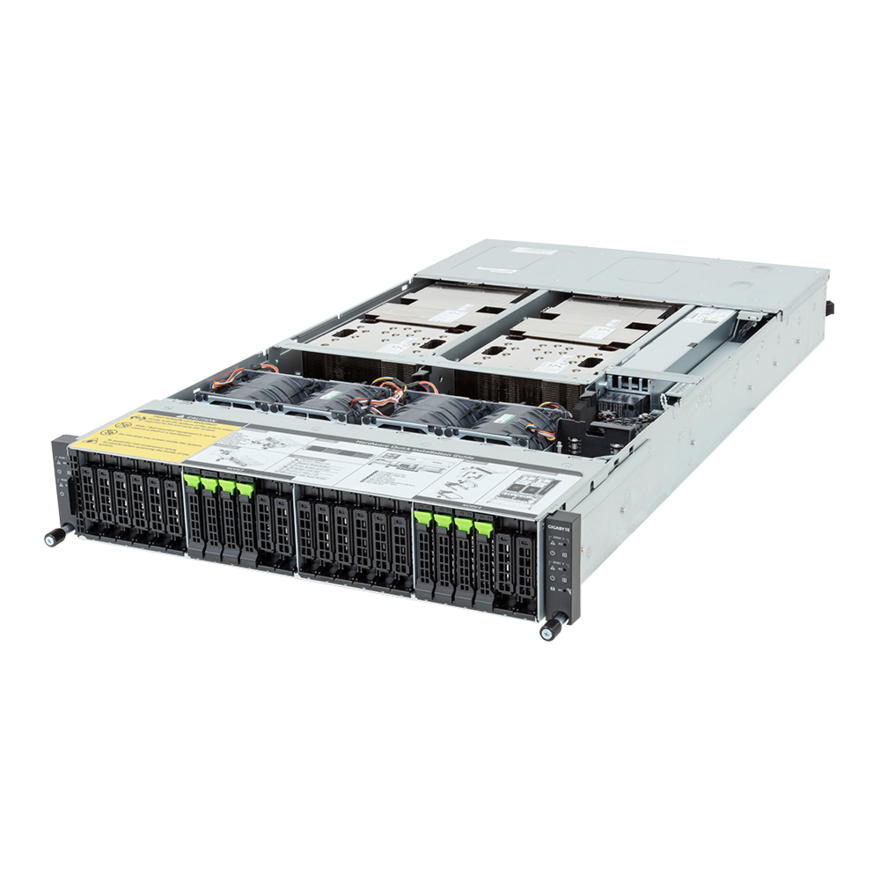

Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
2 x Power buttons with LED
2 x ID buttons with LED
2 x Reset buttons
2 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
2 x Power buttons with LED
2 x ID buttons with LED
2 x Reset buttons
2 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system.

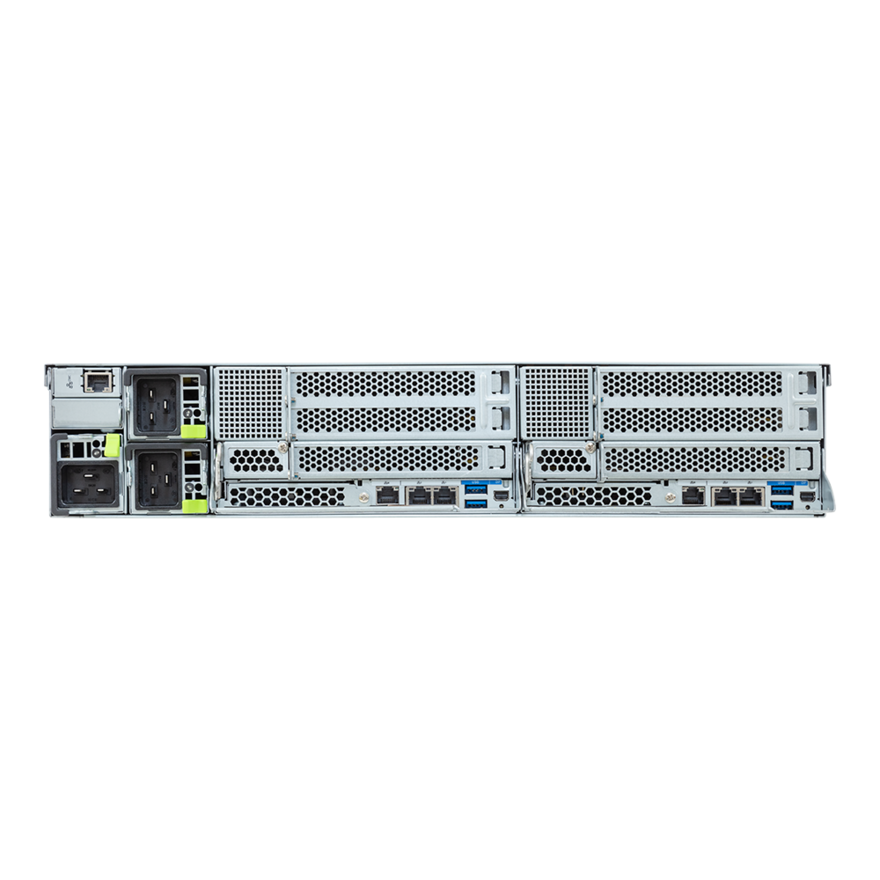

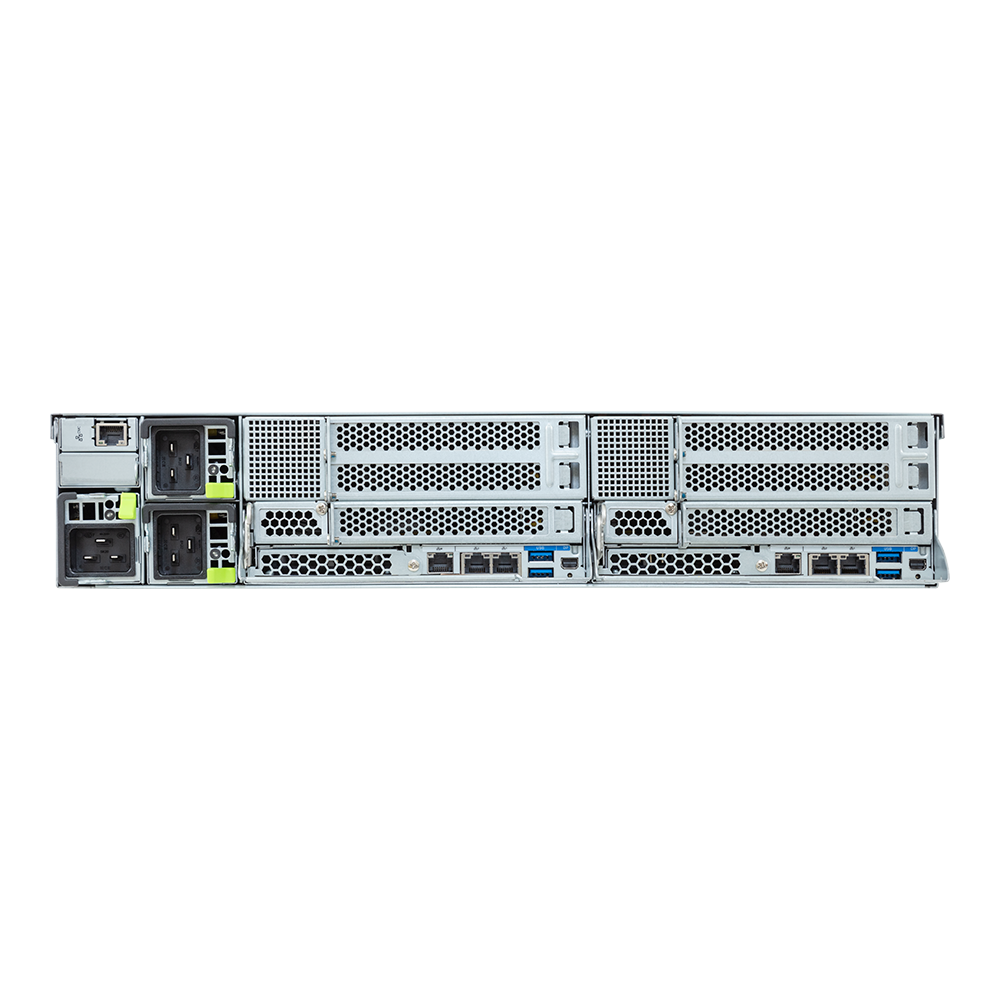

Rear I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Total:
4 x USB 3.2 Gen1
2 x Mini-DP
4 x RJ45
2 x MLAN
2 x ID LEDs
*1 x CMC port
*Only one CMC port per system.
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Total:
4 x USB 3.2 Gen1
2 x Mini-DP
4 x RJ45
2 x MLAN
2 x ID LEDs
*1 x CMC port
*Only one CMC port per system.
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4
PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply
2+1 3000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page

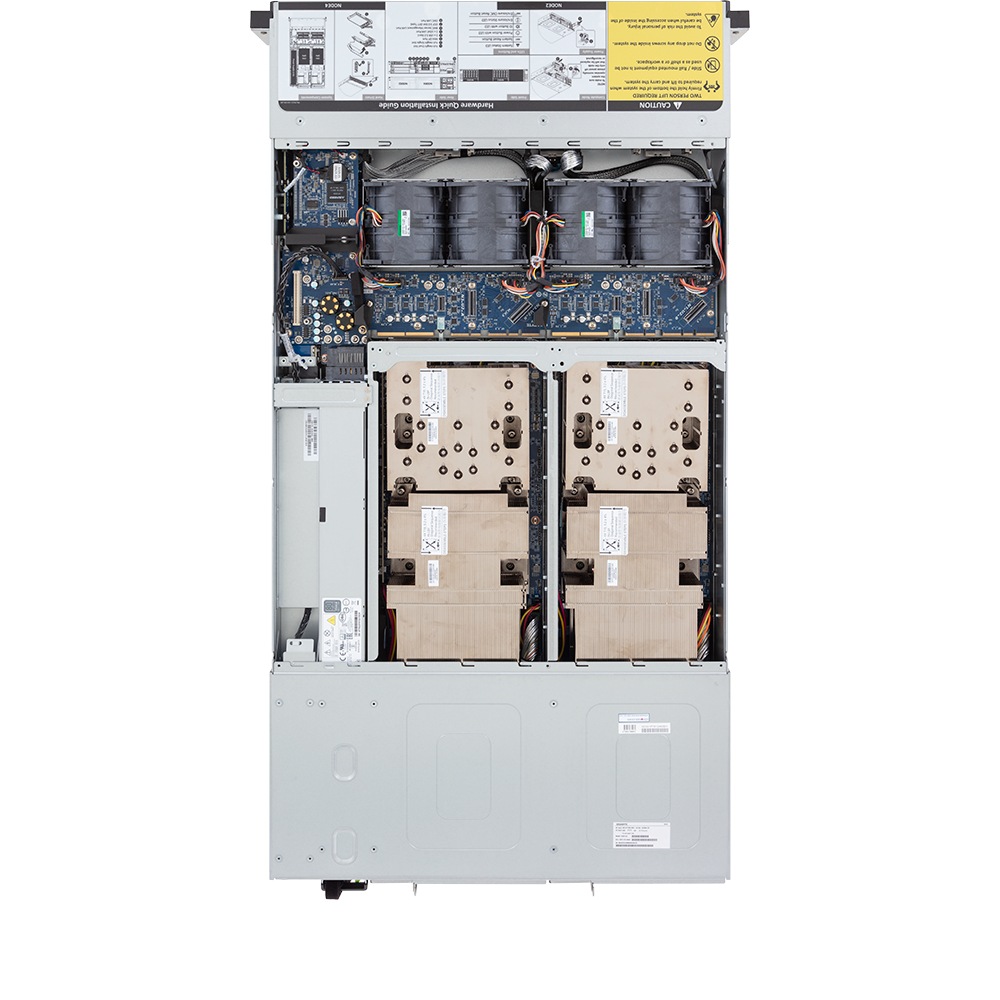

System Fans
4 x 80x80x80mm (16,500rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1180 x 706 x 306 mm
Packaging Content
1 x H223-V10-AAW1
4 x Superchip heatsinks
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
4 x Superchip heatsinks
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
Part Numbers
- Barebone w/ NVIDIA module: 6NH223V10MR000AAW1*
- Motherboard: 9MV13HD0NR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- Superchip heatsink: 25ST1-2532Z3-A0R
- Superchip heatsink: 25ST1-2532Z5-A0R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH7O1: 9CBPH7O1NR-00
- Fan module: 25ST2-888020-S1R
- M.2 riser card - CMTP0A2: 9CMTP0A2NR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000L-L0S
Optional parts:
- RMA packaging: 6NH223V10SR-RMA-A100
- Motherboard: 9MV13HD0NR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- Superchip heatsink: 25ST1-2532Z3-A0R
- Superchip heatsink: 25ST1-2532Z5-A0R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH7O1: 9CBPH7O1NR-00
- Fan module: 25ST2-888020-S1R
- M.2 riser card - CMTP0A2: 9CMTP0A2NR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000L-L0S
Optional parts:
- RMA packaging: 6NH223V10SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
BIOS
Firmware
OS
BIOS
Description
Version
Size
Date
1) Fixed PKfail Vulnerability.
2) Updated to NVIDIA Firmware 02.02.02.
3) Multiple feature updates and bug fixes.
2) Updated to NVIDIA Firmware 02.02.02.
3) Multiple feature updates and bug fixes.
Version : F15
17.91 MB
Aug 23, 2024
1. Updated CVE Patch LogoFAIL CVE-2023-39539 and CVE-2023-39538
2. Fixed previous BIOS chipset item not load default issue
2. Fixed previous BIOS chipset item not load default issue
Version : F07
17.32 MB
May 16, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Firmware
Description
Version
Size
Date
BMC firmware with embedded GIGABYTE Management Console
(AST2600)
For NVIDIA Grace/ Grace Hopper platform
For NVIDIA Grace/ Grace Hopper platform
Version : 13.99.09
114.4 MB
Mar 29, 2024
English
Manual
Description
Version
Size
Date
Description
Version
Size
Date
OS Support List
Version : 1.0
0.02 MB
Mar 28, 2024
NVIDIA Grace/ Grace Hopper OS Support List
RESOURCES
Articles
News
eBrochure

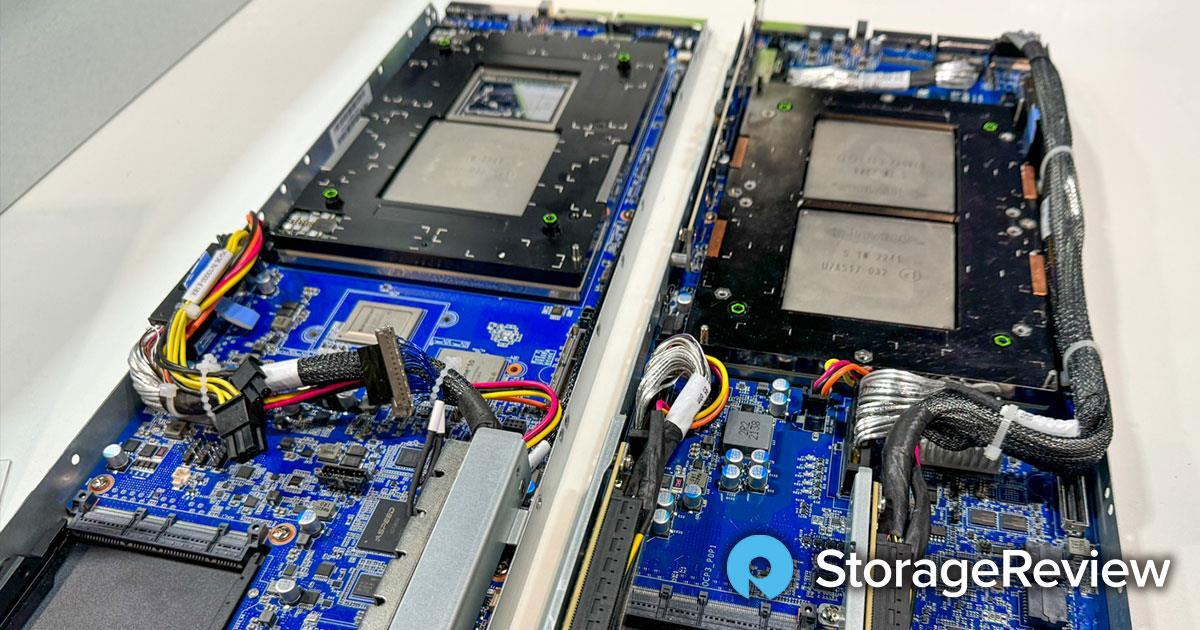

Media Review
Others
Back to H223-V10-AAW1
