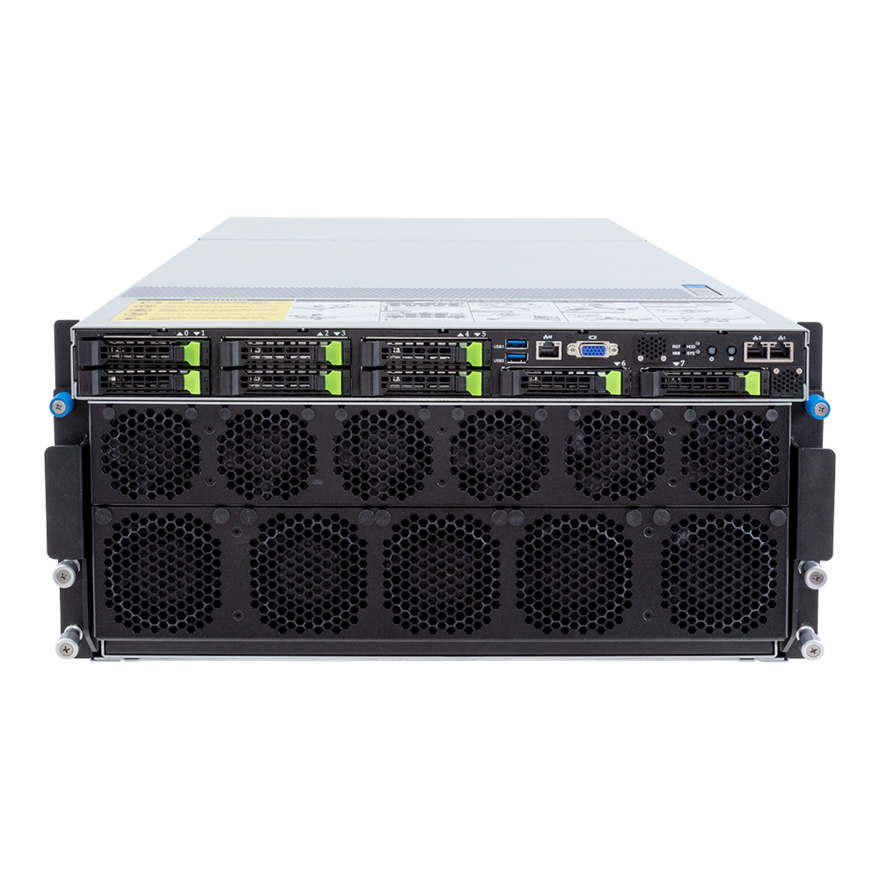

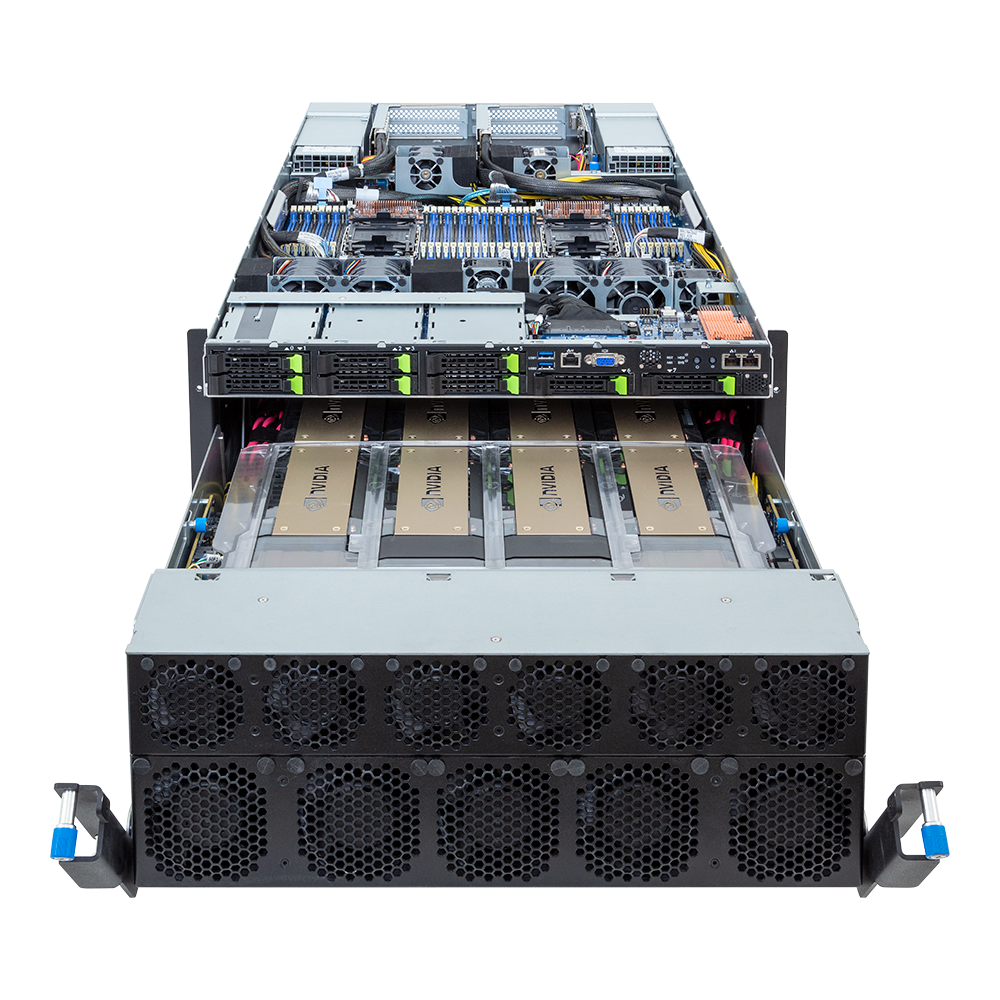

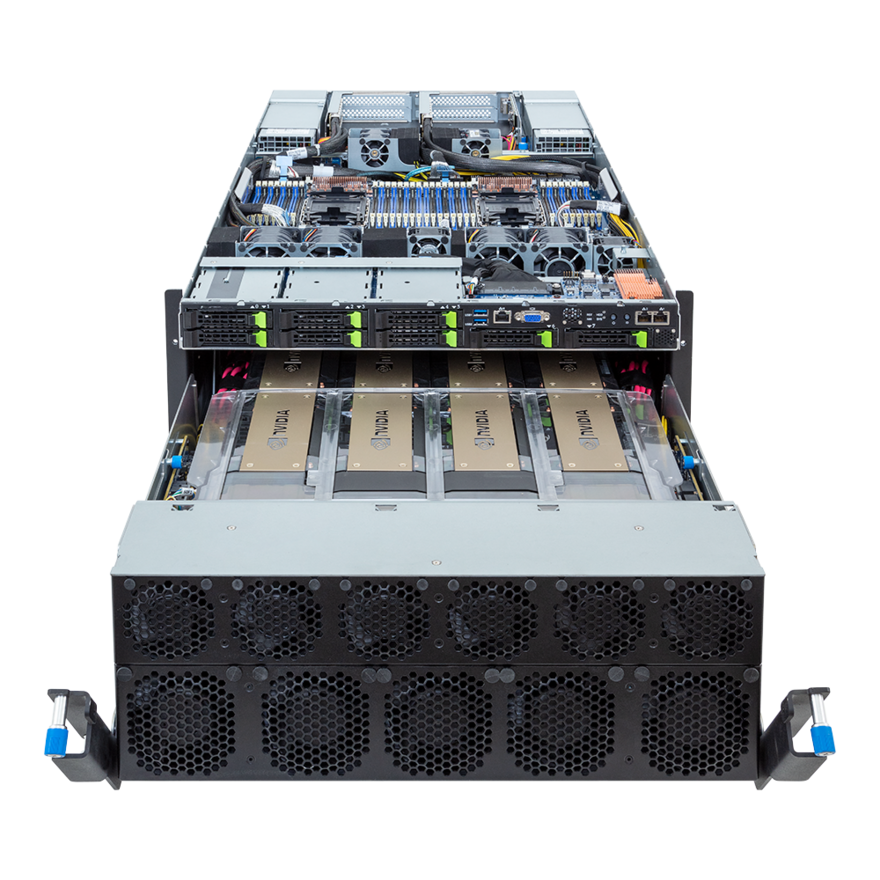

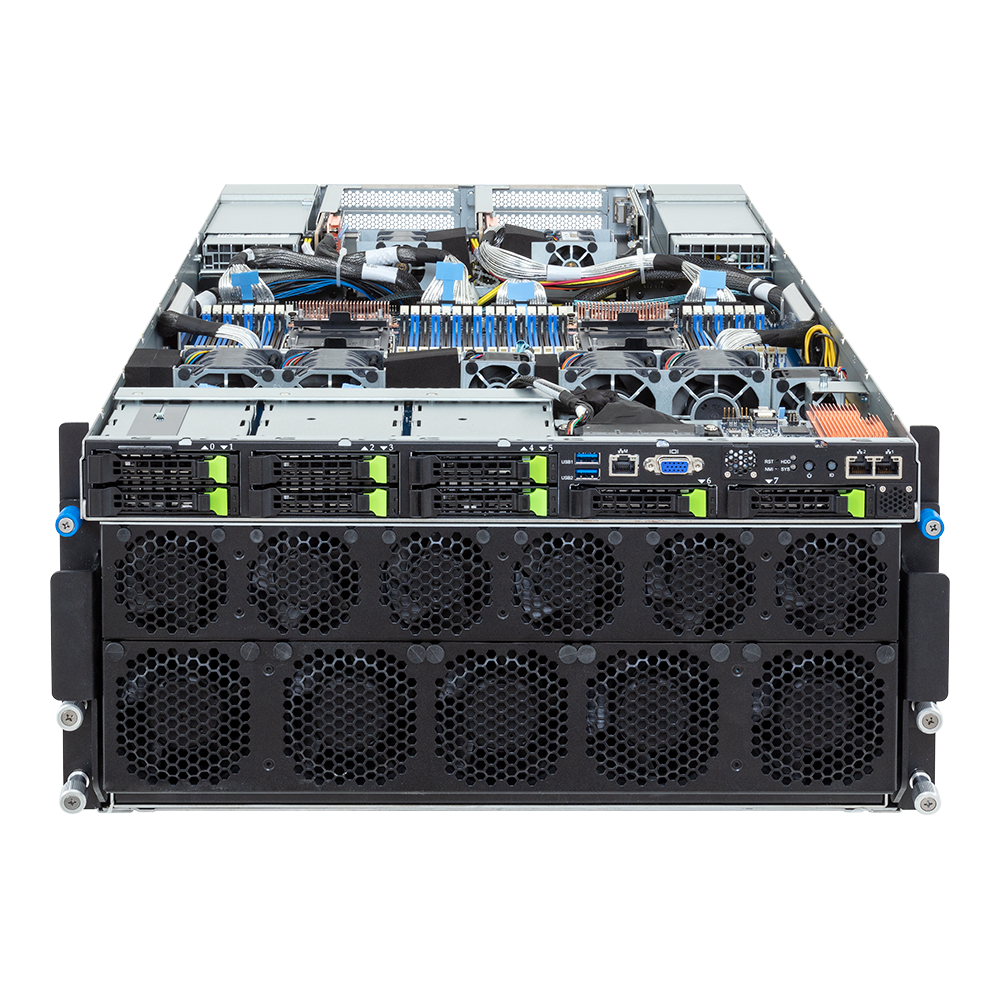

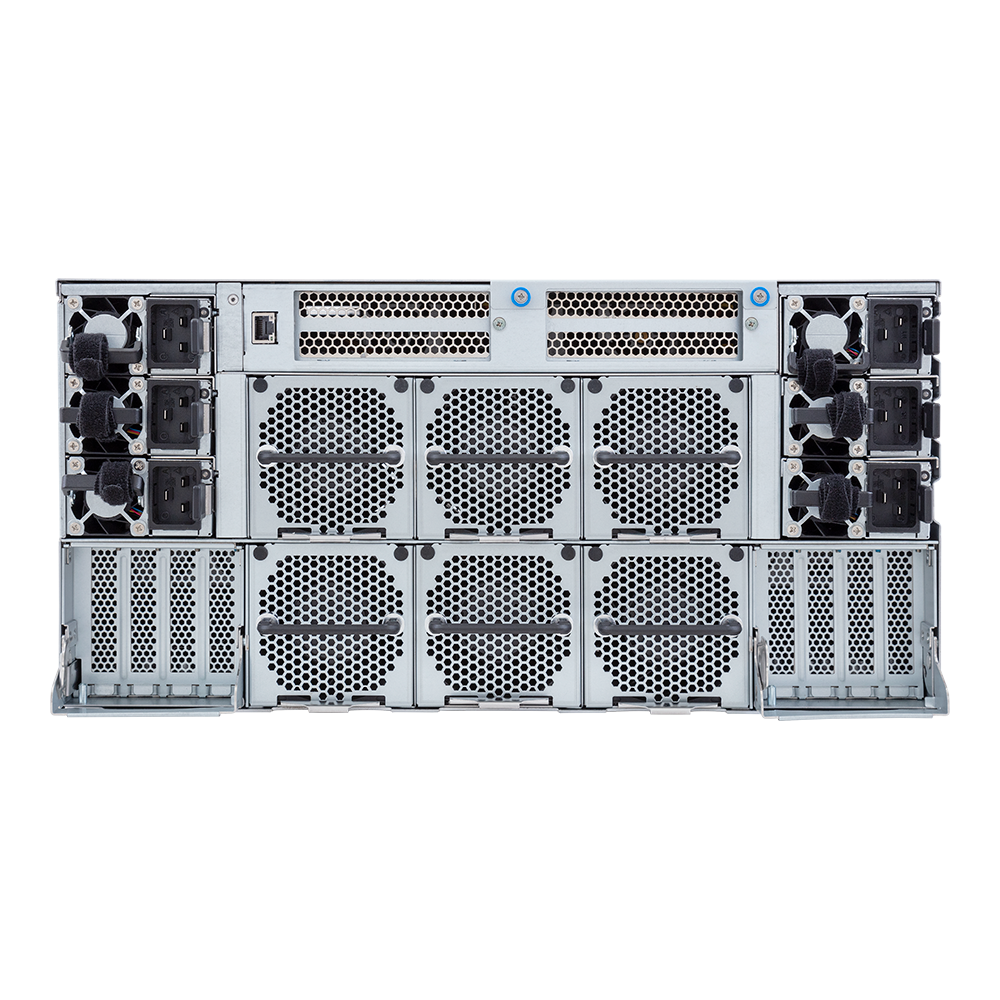

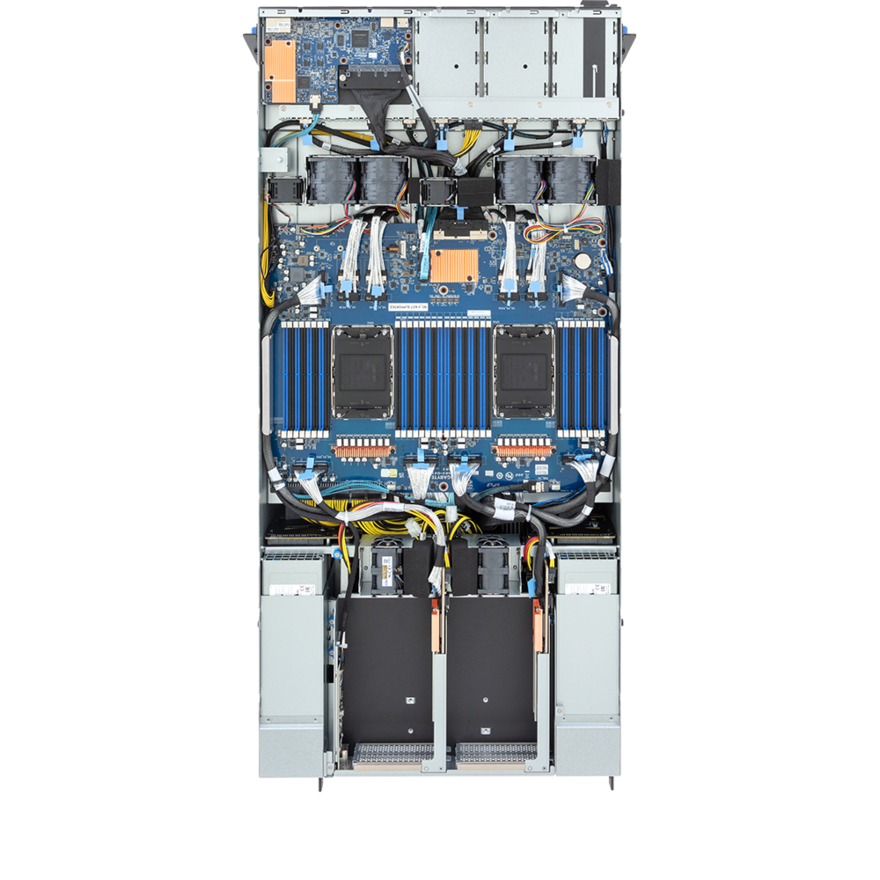

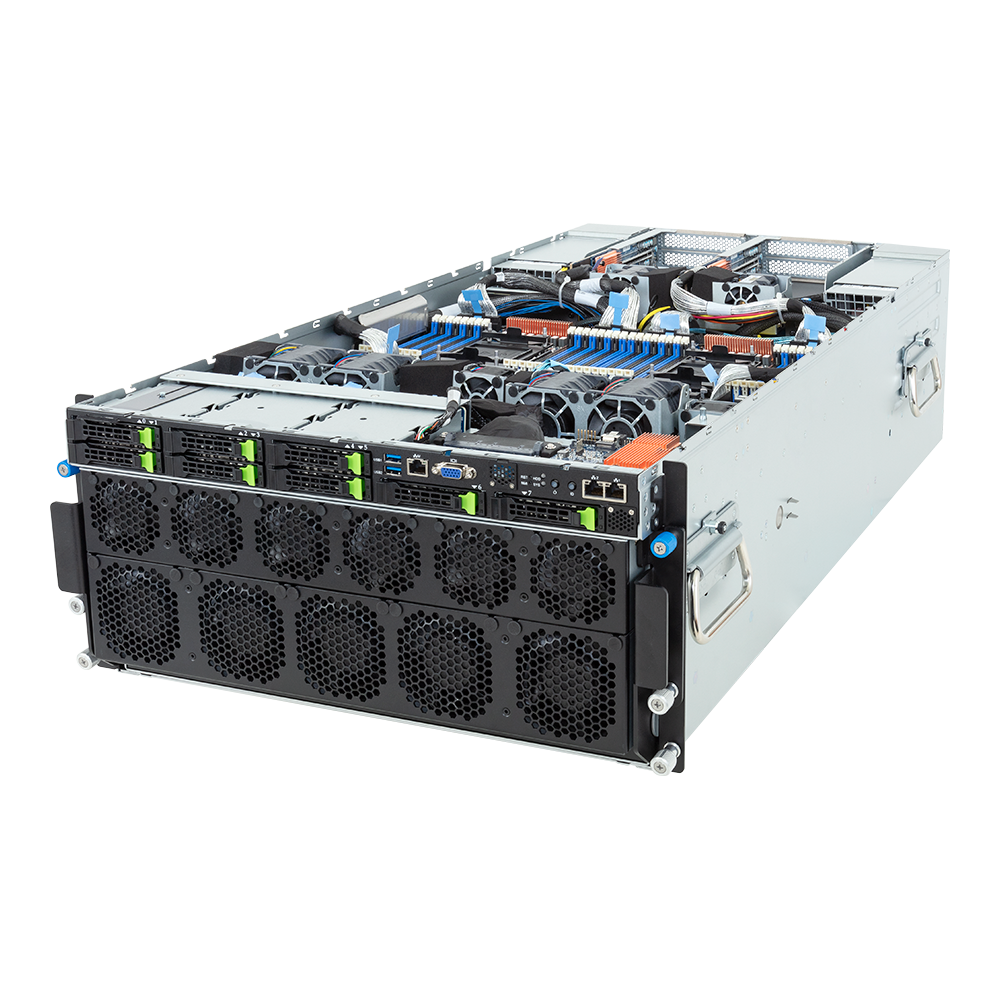

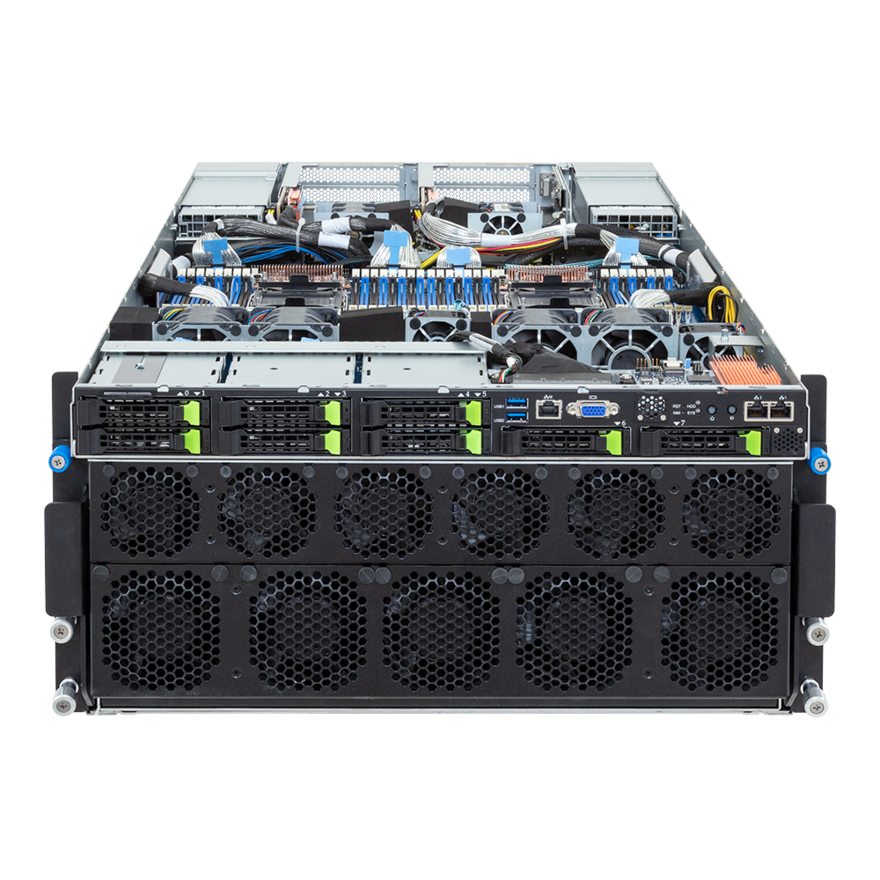

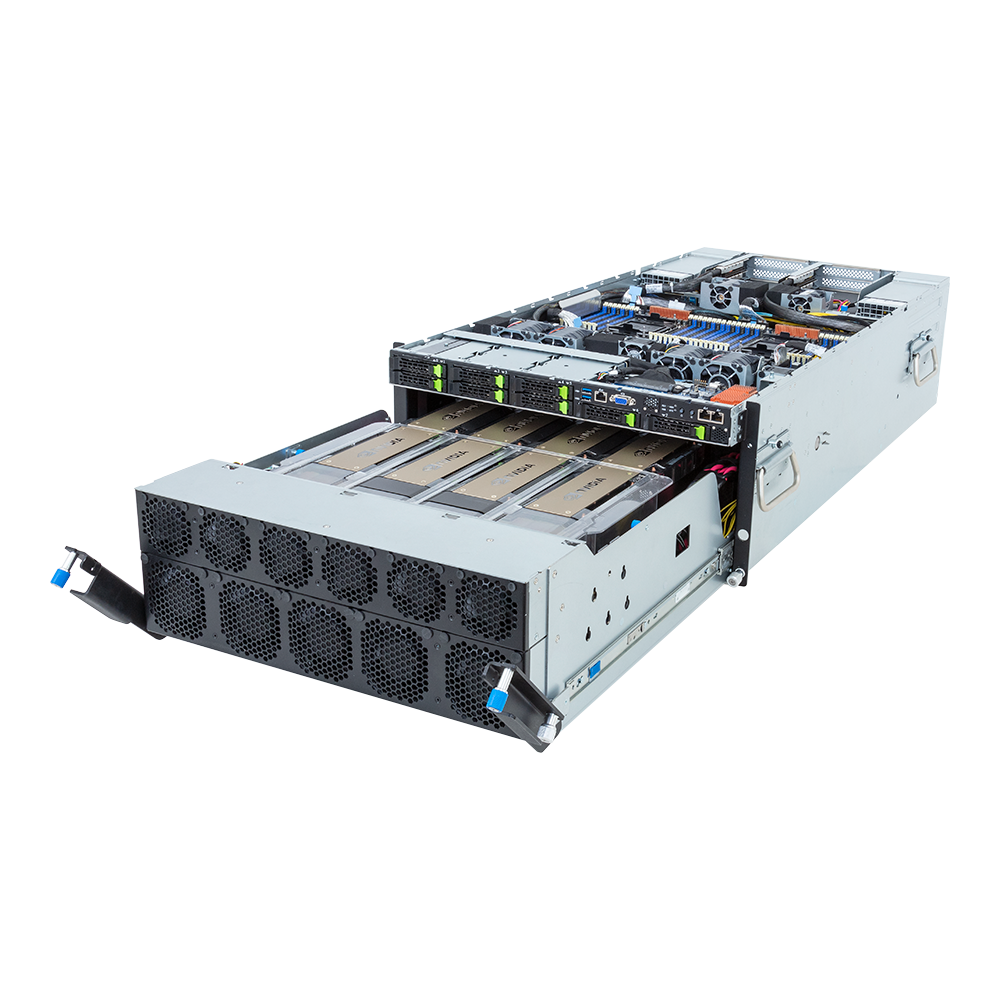

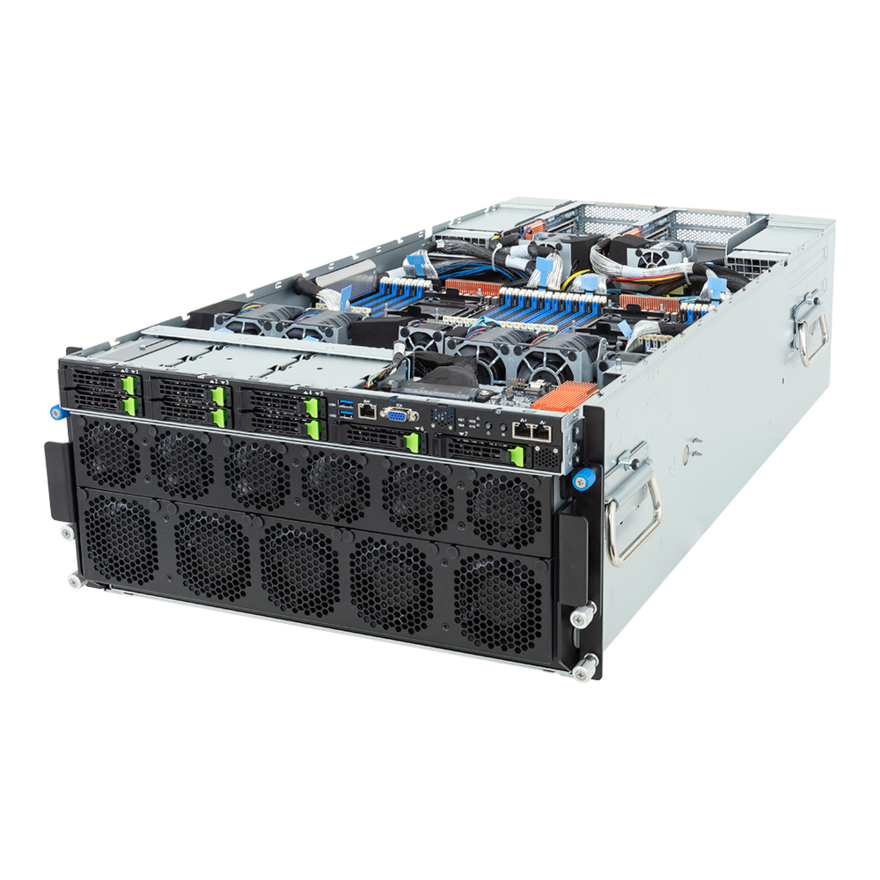

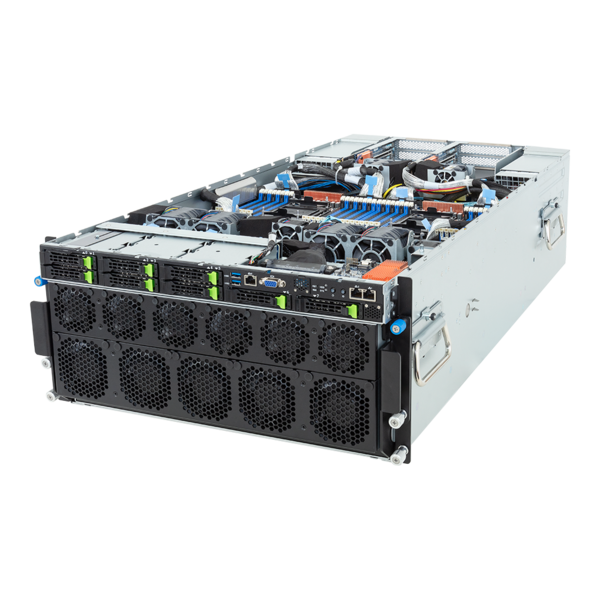

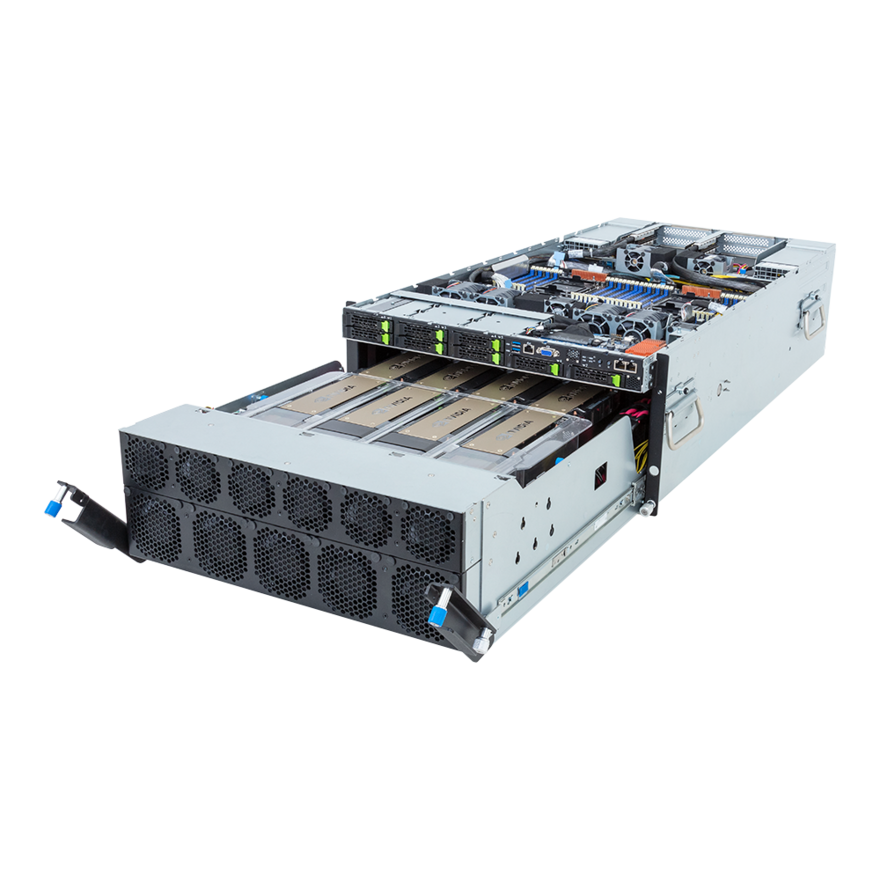

- G593-SD1-AAX3
G593-SD1- AAX3
HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 5U DP NVIDIA HGX™ H200 8-GPU
- NVIDIA HGX™ H200 8-GPU
- 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- Compatible with NVIDIA BlueField®-3 DPUs/SuperNICs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- 4 x FHHL PCIe Gen5 x16 slots
- 8 x LP PCIe Gen5 x16 slots
- 4+2 3000W 80 PLUS Titanium redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
5U
447 x 219.7 x 945
447 x 219.7 x 945

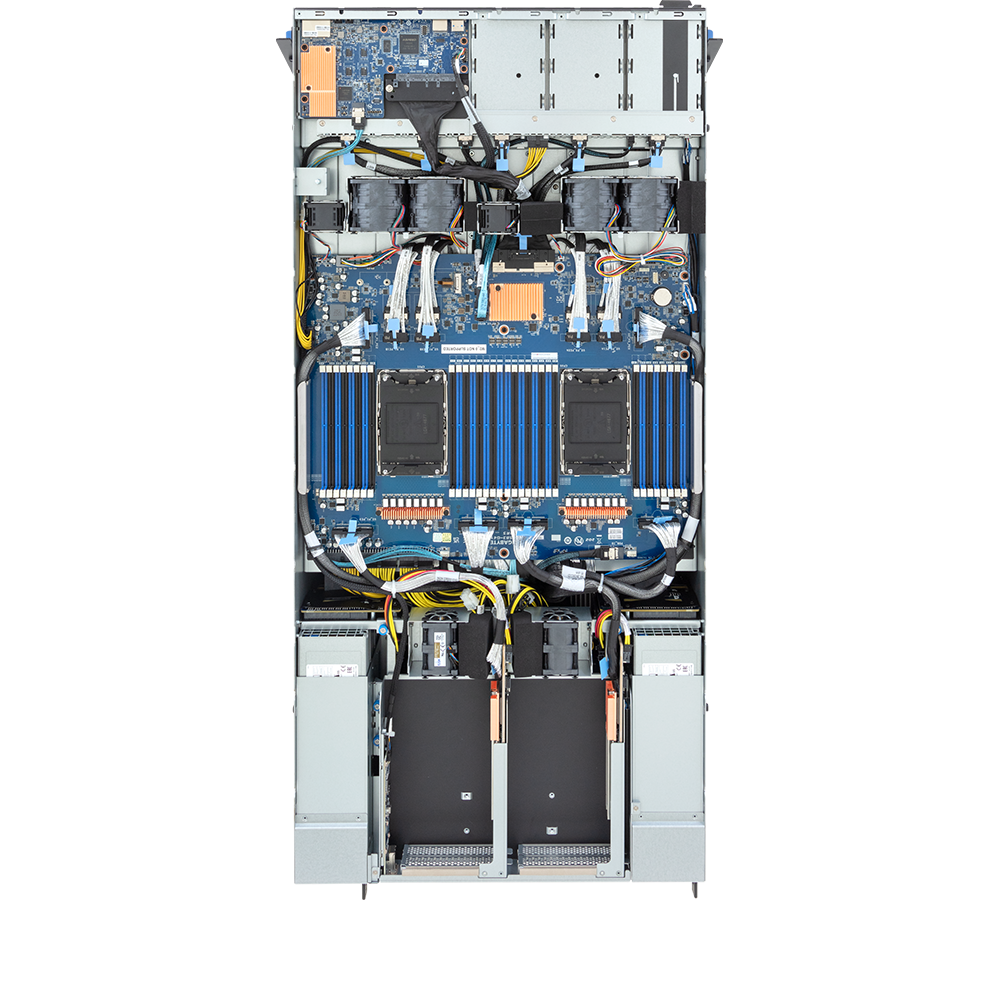

Motherboard
MSB3-G41
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
LAN
Front side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear side:
1 x 10/100/1000 Mbps Management LAN
Notice: When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear side:
1 x 10/100/1000 Mbps Management LAN
Notice: When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
8 x 2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays, NVMe from PEX89104
*SAS card is required to support SAS drives.
8 x 2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays, NVMe from PEX89104
*SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards
Support optional RAID add-in cards
Expansion Slots
NVIDIA HGX™ H200 with 8 x SXM GPUs
Extension Board CPBG044 x 2:
- 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
Riser Card CPBGD20 x 2:
- 4 x PCIe x16 (Gen5 x16) FHHL slots, from PEX89048
Extension Board CPBG044 x 2:
- 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
Riser Card CPBGD20 x 2:
- 4 x PCIe x16 (Gen5 x16) FHHL slots, from PEX89048
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector

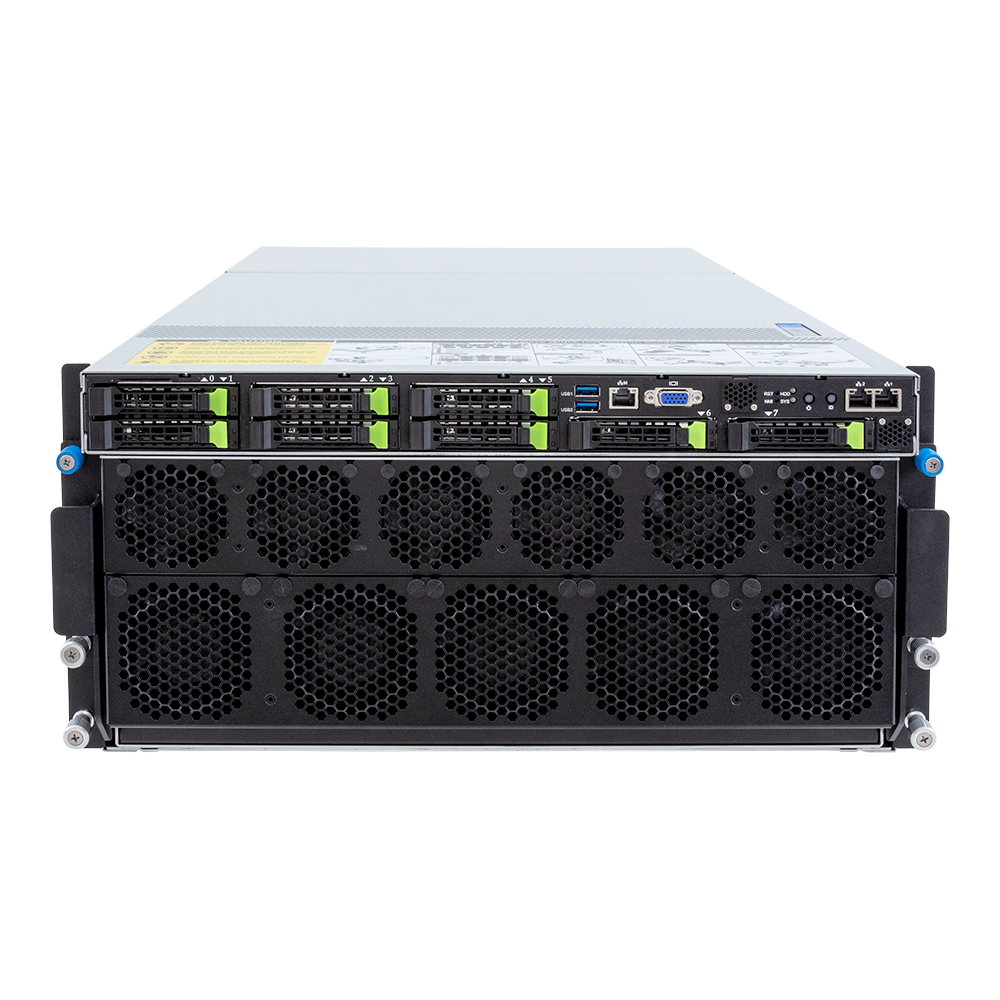

Front I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

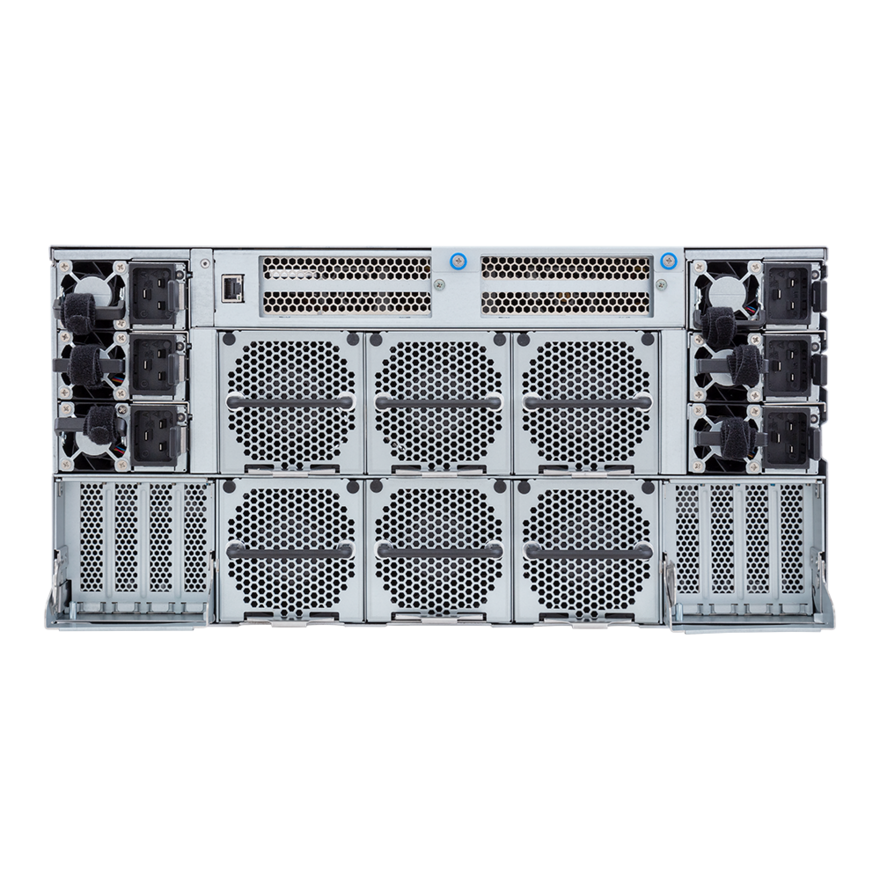

Rear I/O
1 x MLAN
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
4+2 3000W 80 PLUS Titanium redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
Motherboard:
2 x 40x40x28mm (25,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)
GPU tray:
6 x 60x60x76mm (21,700rpm)
11 x 80x80x80mm (17,000rpm)
2 x 40x40x28mm (25,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)
GPU tray:
6 x 60x60x76mm (21,700rpm)
11 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1200 x 890 x 700 mm
Packaging Content
1 x G593-SD1-AAX3
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone w/ NVIDIA module: 6NG593SD1DR000ABX3*
- Motherboard: 9MSB3G41NR-000
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-24320H-M1R
- Backplane board - CBPG680: 9CBPG680NR-00
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562M-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 60x60x76mm: 25ST2-667630-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- Riser card - CPBGD20: 9CPBGD20NR-00
- I/O board - CDB66: 9CDB66NR-00
- PCIe extension board - CPBG044: 9CPBG044NR-00
- PCIe switch board - CPBG903: 9CPBG903NR-00
- G-SCM board - CDCG120: 9CDCG120UR-00
- Power supply: 25EP0-23000J-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- Motherboard: 9MSB3G41NR-000
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-24320H-M1R
- Backplane board - CBPG680: 9CBPG680NR-00
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562M-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 60x60x76mm: 25ST2-667630-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- Riser card - CPBGD20: 9CPBGD20NR-00
- I/O board - CDB66: 9CDB66NR-00
- PCIe extension board - CPBG044: 9CPBG044NR-00
- PCIe switch board - CPBG903: 9CPBG903NR-00
- G-SCM board - CDCG120: 9CDCG120UR-00
- Power supply: 25EP0-23000J-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
