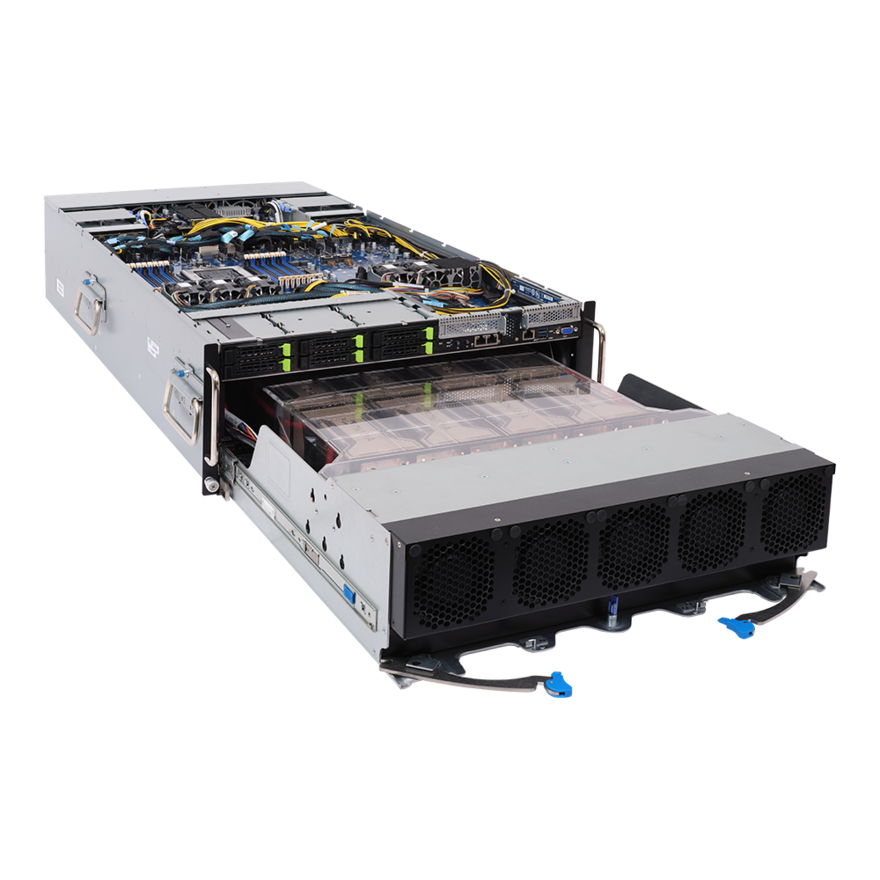

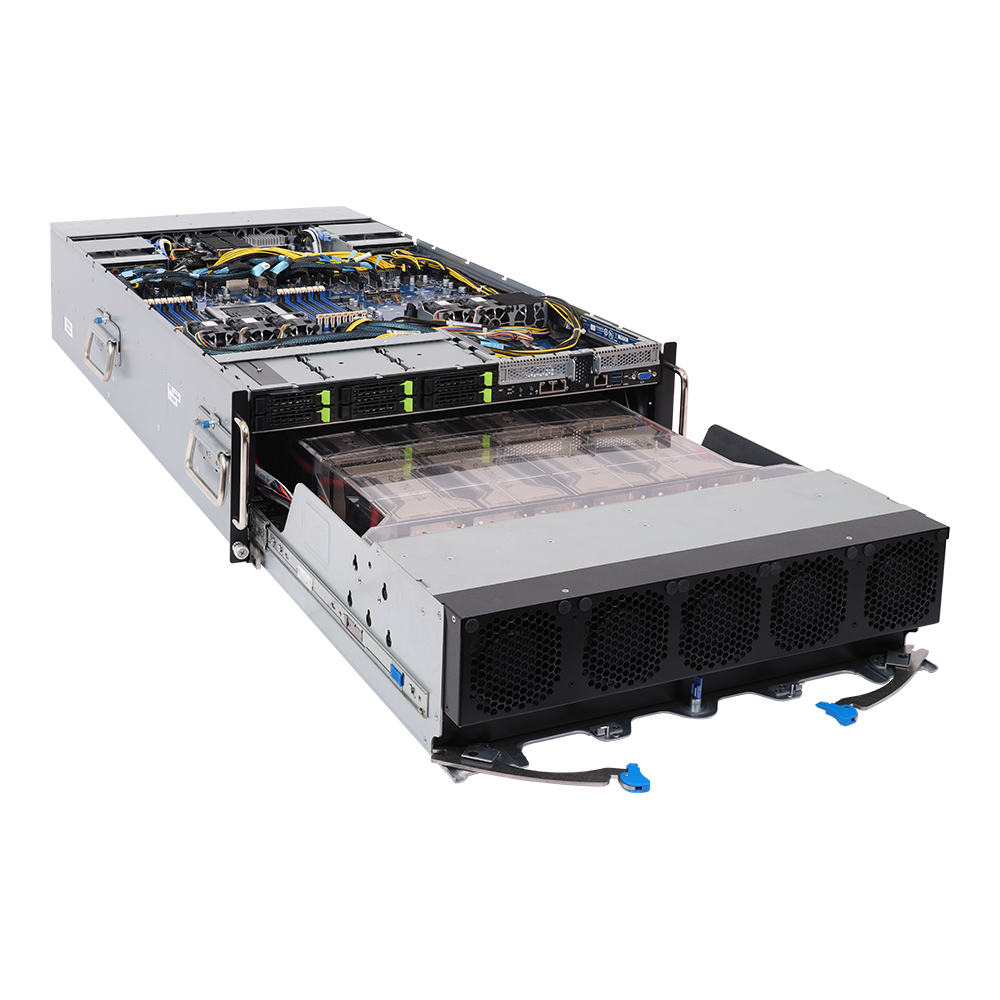

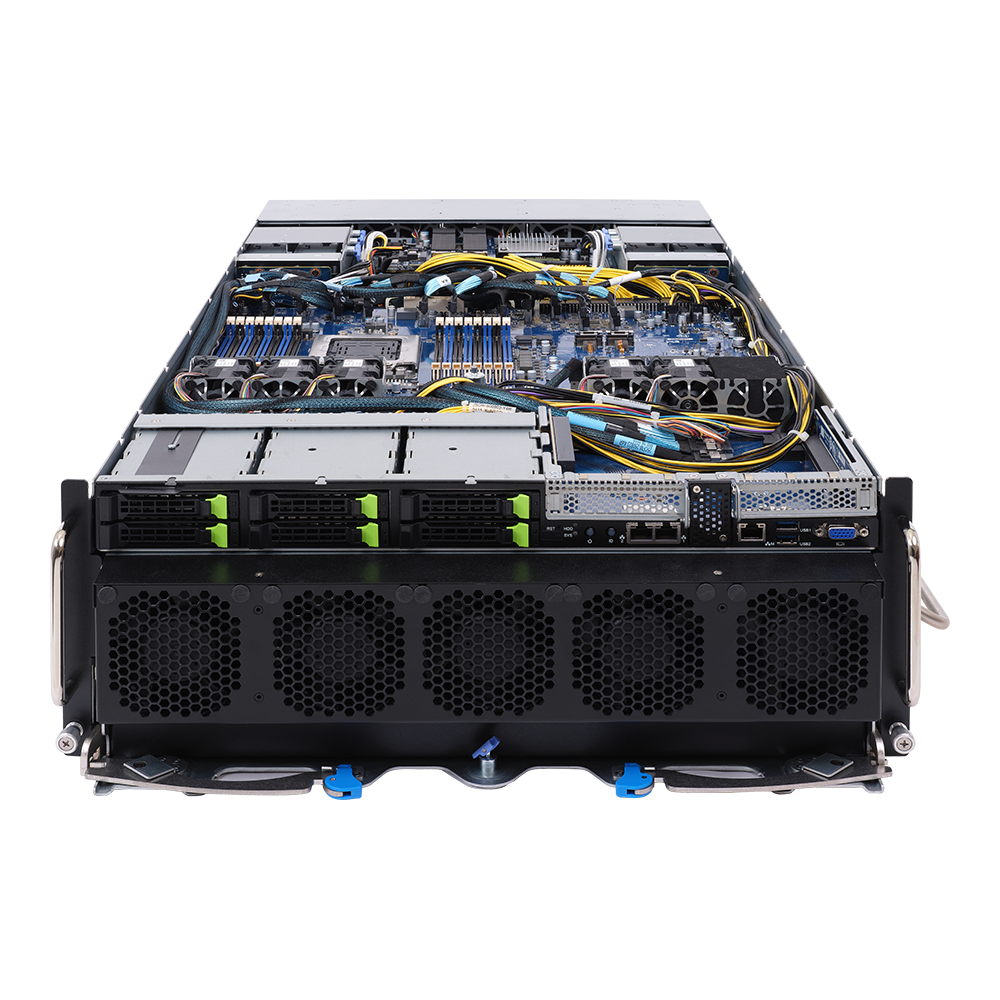

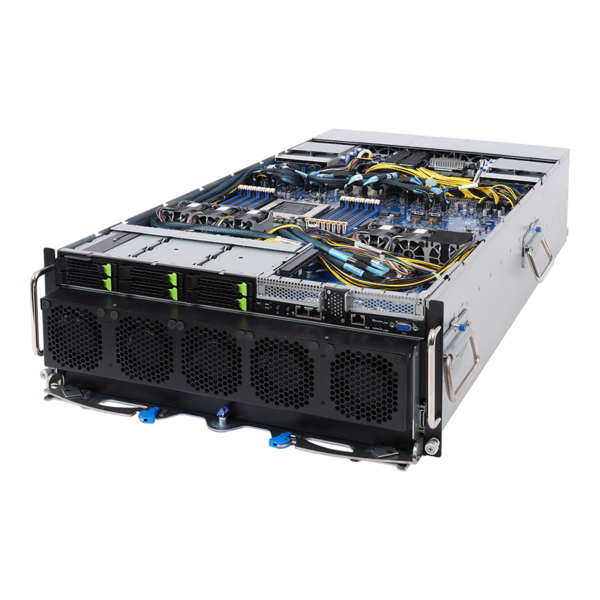

G492-PD0
Discontinued
HPC/AI Arm Server - Ampere® Altra® Max - 4U UP HGX™ A100 8-GPU
- Hardware-level root of trust support
- Supports NVIDIA HGX™ A100 with 8 x SXM4 GPUs
- Supports NVIDIA® NVLink® and NVSwitch™ technology
- Up to 600GB/s GPU to GPU interconnection
- Ampere® Altra® Processor
- Ampere® Altra® Max Processor
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 6 x 2.5" Gen4 NVMe hot-swappable bays
- 4 x M.2 slots with PCIe Gen4 x4 interface
- 10 x LP PCIe Gen4 x16 slots
- 3+1 3000W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
447 x 175.2 x 900
447 x 175.2 x 900

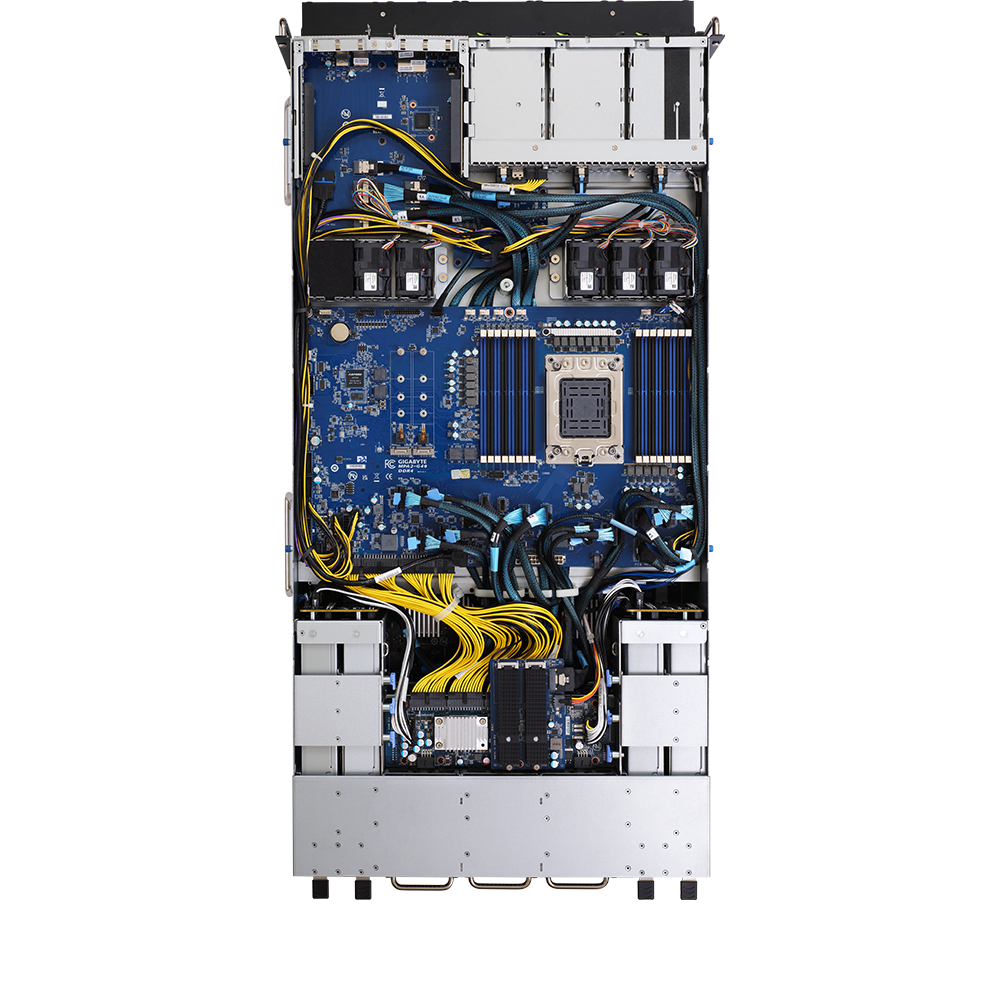

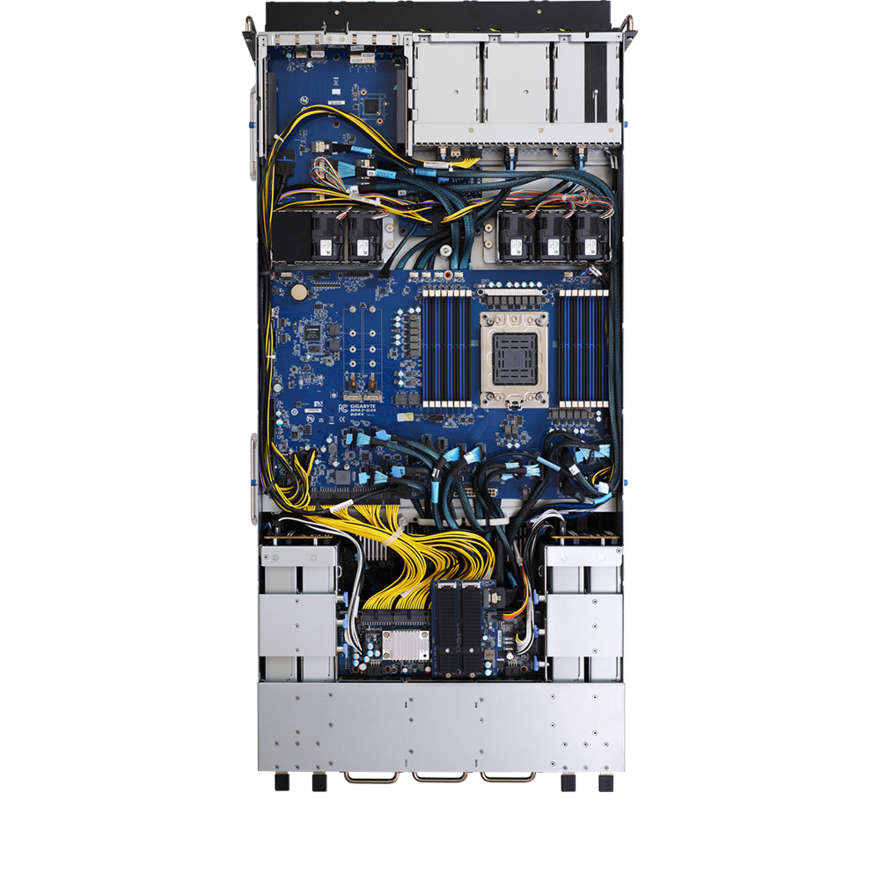

Motherboard
MPA2-G40
CPU
Ampere® Altra® Processor
Ampere® Altra® Max Processor
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W
Ampere® Altra® Max Processor
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W
Socket
1 x LGA 4926
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
LAN
Front side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
6 x 2.5" Gen4 NVMe hot-swappable bays, from PEX88096
6 x 2.5" Gen4 NVMe hot-swappable bays, from PEX88096
SAS
N/A
RAID
N/A
Expansion Slots

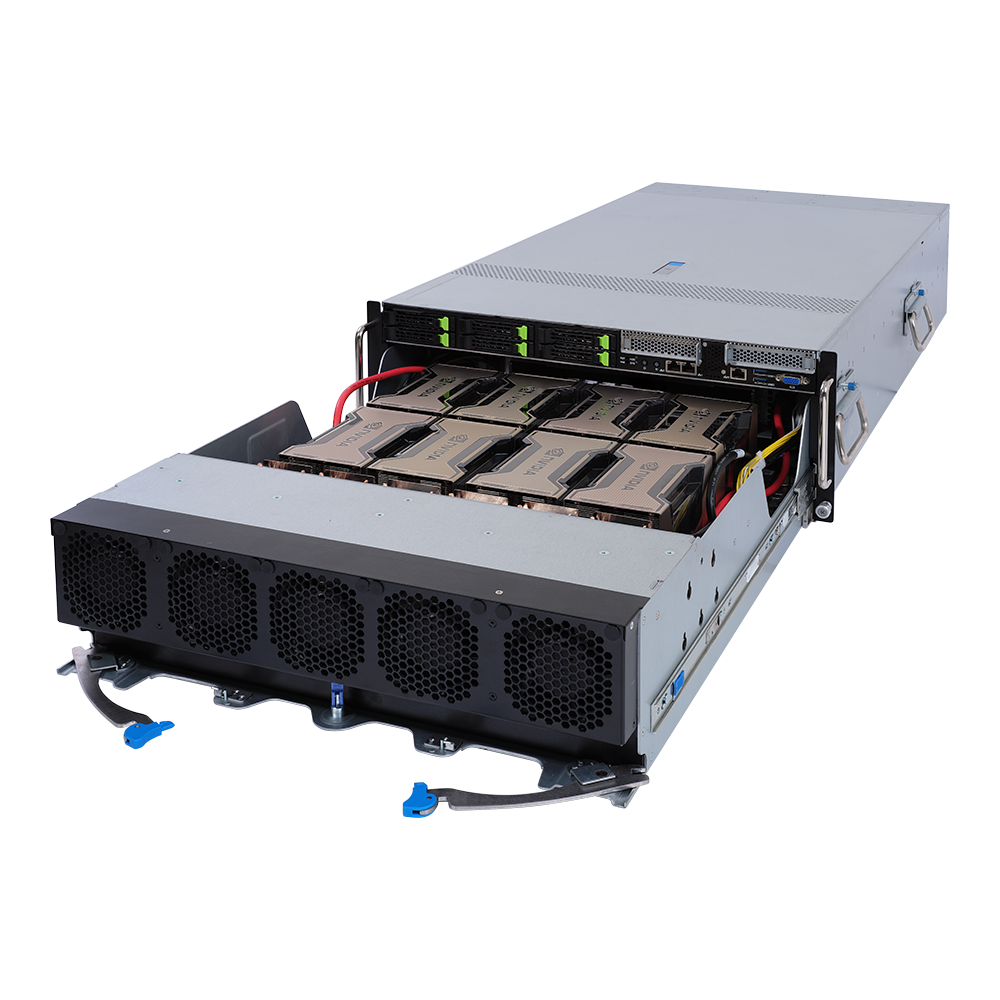

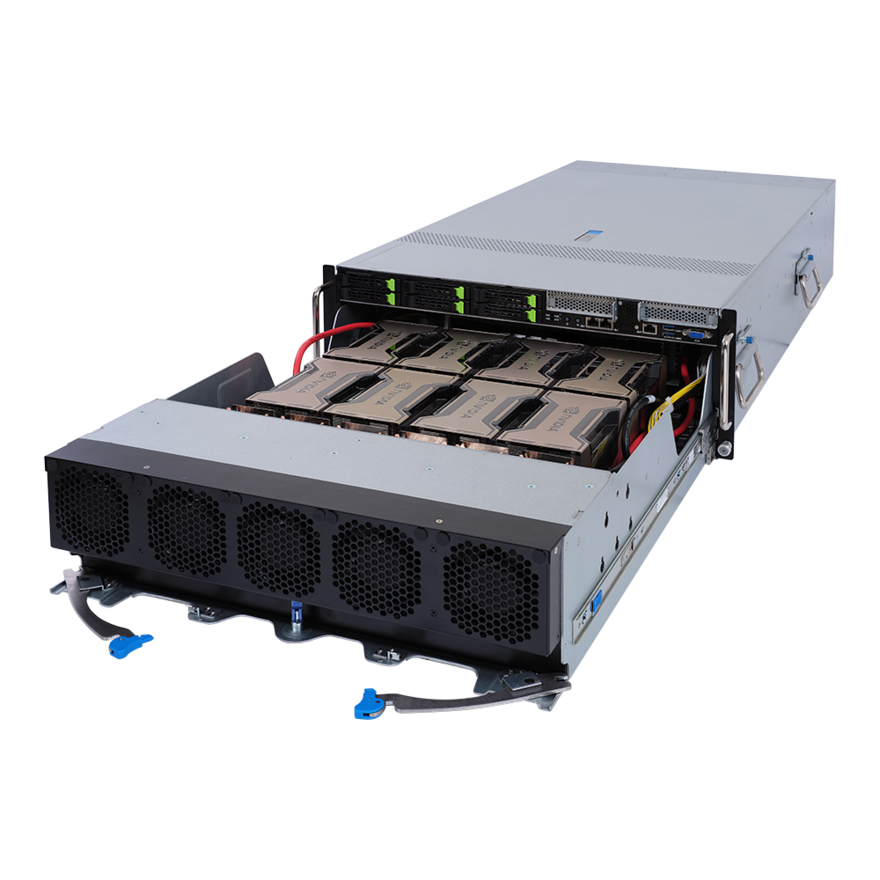

Supports NVIDIA HGX™ A100 with 8 x SXM4 GPUs
8 x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096
Riser Card CRSG01D:
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from PEX88096
Riser Card CRSG01E:
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from PEX88096
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2242/2260/2280/22110 cards
2 x M.2 slots (CMTP063):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2280/22110 cards
8 x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096
Riser Card CRSG01D:
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from PEX88096
Riser Card CRSG01E:
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from PEX88096
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2242/2260/2280/22110 cards
2 x M.2 slots (CMTP063):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED

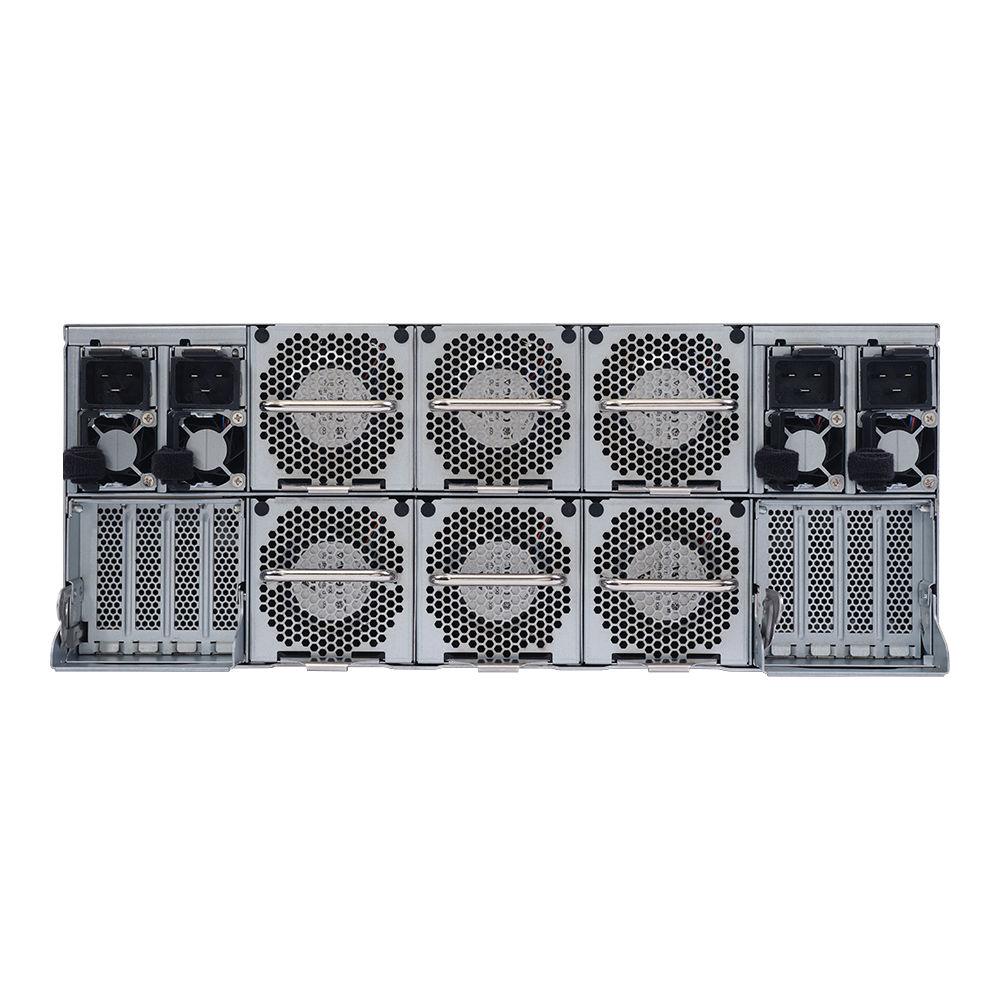

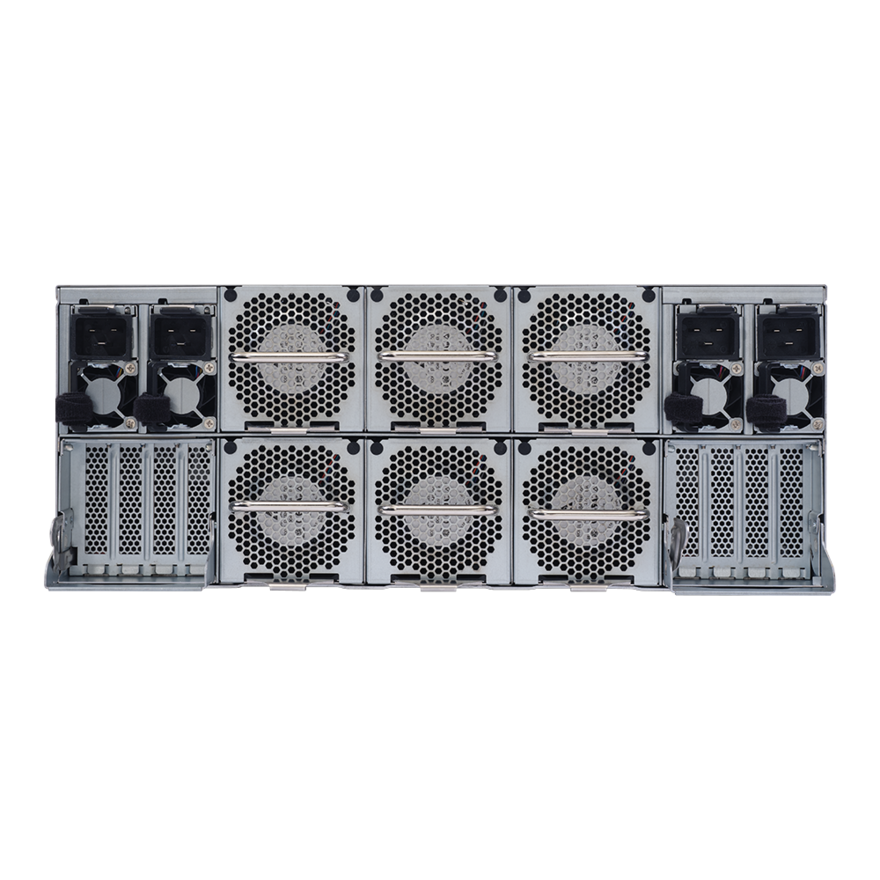

Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4
PCIe Gen4 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
3+1 3000W 80 PLUS Platinum redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A + 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A + 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Ubuntu 20.04.1 LTS (aarch64), kernel version 5.8.045
System Fans
11 x 80x80x80mm (17,000rpm)
4 x 40x40x28mm (25,000rpm)
5 x 40x40x56mm (31,000rpm)
4 x 40x40x28mm (25,000rpm)
5 x 40x40x56mm (31,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1176 x 782 x 822 mm
Packaging Content
1 x G492-PD0
1 x CPU heatsink
1 x L-shape Rail kit
1 x CPU heatsink
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG492PD0MR-00-1*
- Motherboard: 9MPA2G40NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- CPU heatsink: 25ST1-45320B-A3R
- GPU fan duct: 25HA8-G49205-S5R
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module: 25ST2-808036-S1R
- Fan module: 25ST2-808037-S1R
- Fan module: 25ST2-44282D-D0R
- Fan module: 25ST2-405629-N2R
- M.2 bridge card - CMTP063: 9CMTP063NR-00
- PCIe bridge card - CPBG040: 9CPBG040NR-00
- PCIe extension board - CPBG704: 9CPBG704NR-00
- Riser card - CRSG01D: 9CRSG01DNR-00
- Riser card - CRSG01E: 9CRSG01ENR-00
- Power supply: 25EP0-230003-D0S
- Motherboard: 9MPA2G40NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- CPU heatsink: 25ST1-45320B-A3R
- GPU fan duct: 25HA8-G49205-S5R
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module: 25ST2-808036-S1R
- Fan module: 25ST2-808037-S1R
- Fan module: 25ST2-44282D-D0R
- Fan module: 25ST2-405629-N2R
- M.2 bridge card - CMTP063: 9CMTP063NR-00
- PCIe bridge card - CPBG040: 9CPBG040NR-00
- PCIe extension board - CPBG704: 9CPBG704NR-00
- Riser card - CRSG01D: 9CRSG01DNR-00
- Riser card - CRSG01E: 9CRSG01ENR-00
- Power supply: 25EP0-230003-D0S
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
