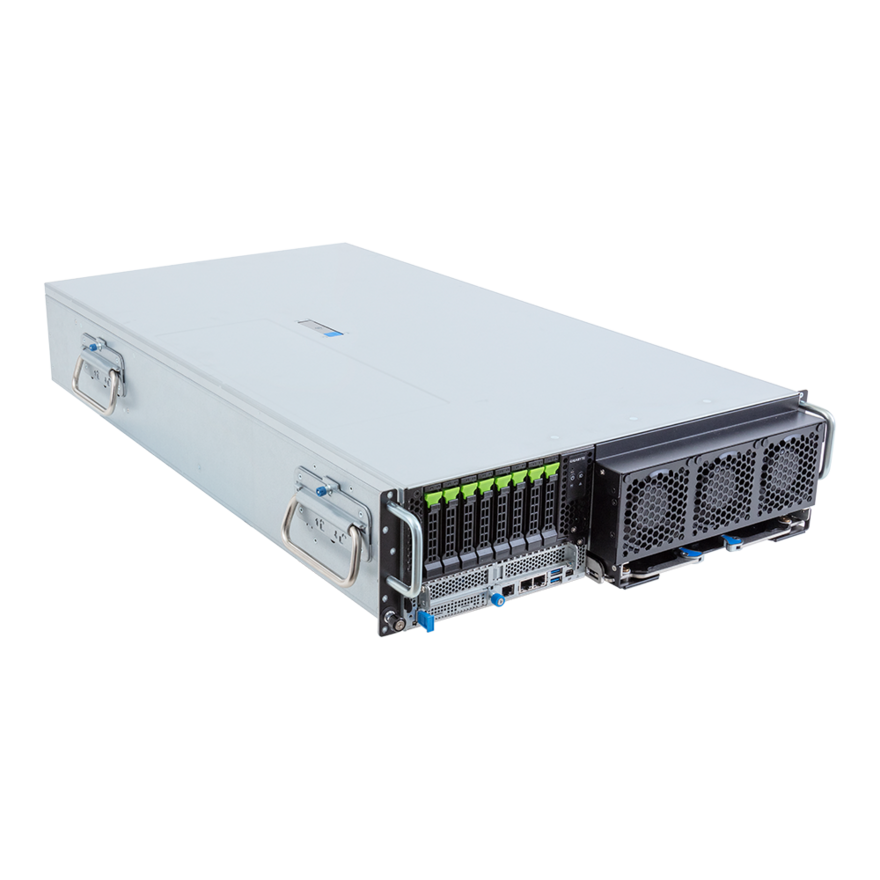

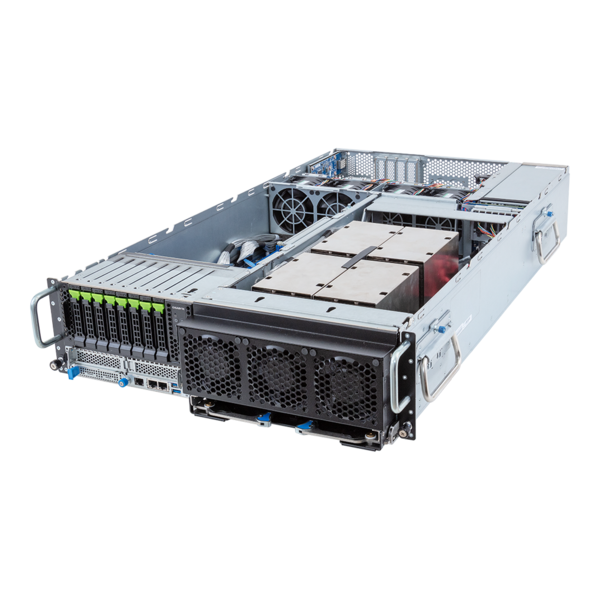

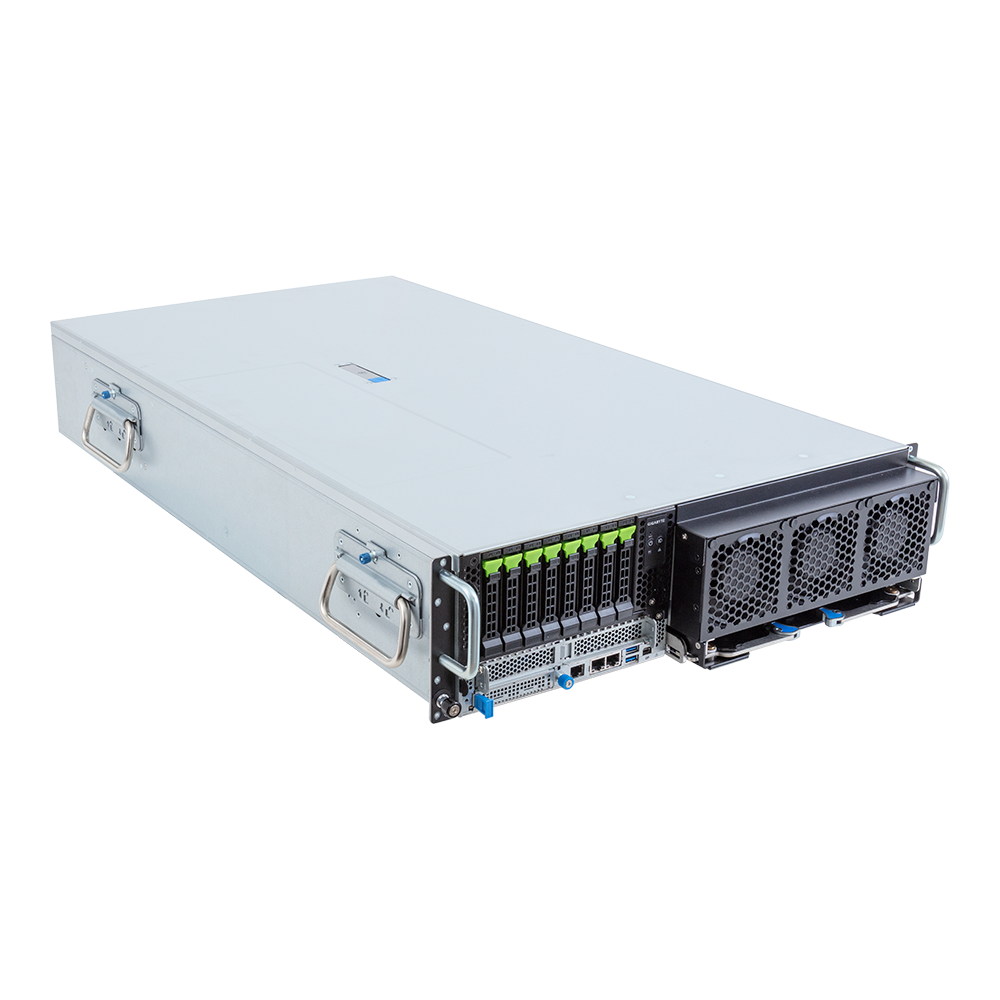

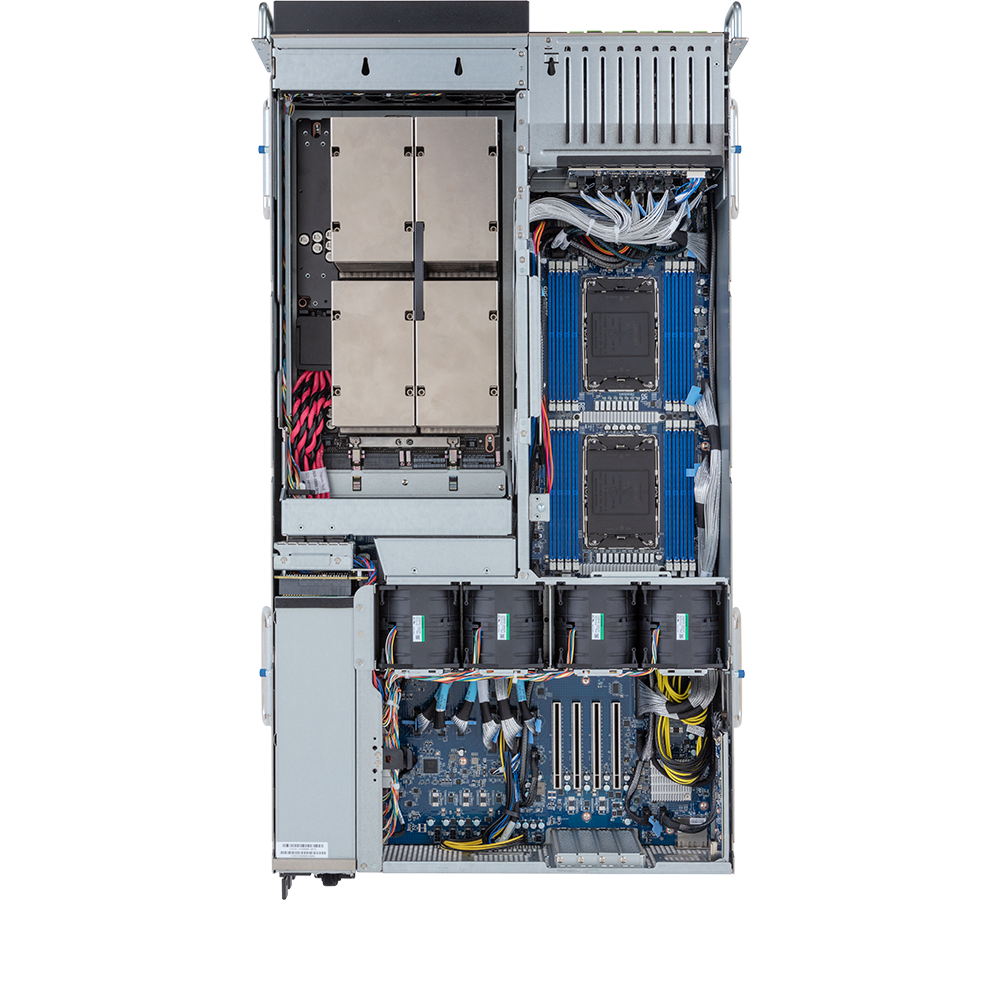

G363-SR0- AAX1
HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 3U DP HGX™ H100 4-GPU
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA HGX™ H100 with 4 x SXM5 GPUs
- 4th-generation NVIDIA® NVLink® 900GB/s
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 16 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 6 x LP PCIe Gen5 x16 slots
- 2+1 3000W 80 PLUS Titanium redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
3U
448 x 130 x 800
448 x 130 x 800
Motherboard
MS63-HD2
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
LAN
Front side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
Notice: When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
Notice: When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
8 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays, NVMe from PEX89144
*SAS card is required to support SAS drives.
8 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays, NVMe from PEX89144
*SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards
Support optional RAID add-in cards
Expansion Slots
NVIDIA HGX™ H100 with 4 x SXM5 GPUs
Front side:
Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
Rear side:
4 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144, support RDMA
(Equipped with full-height brackets)
1 x OCP 3.0 slot on the front side, disabled, from CPU_0
1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Front side:
Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
Rear side:
4 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144, support RDMA
(Equipped with full-height brackets)
1 x OCP 3.0 slot on the front side, disabled, from CPU_0
1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector

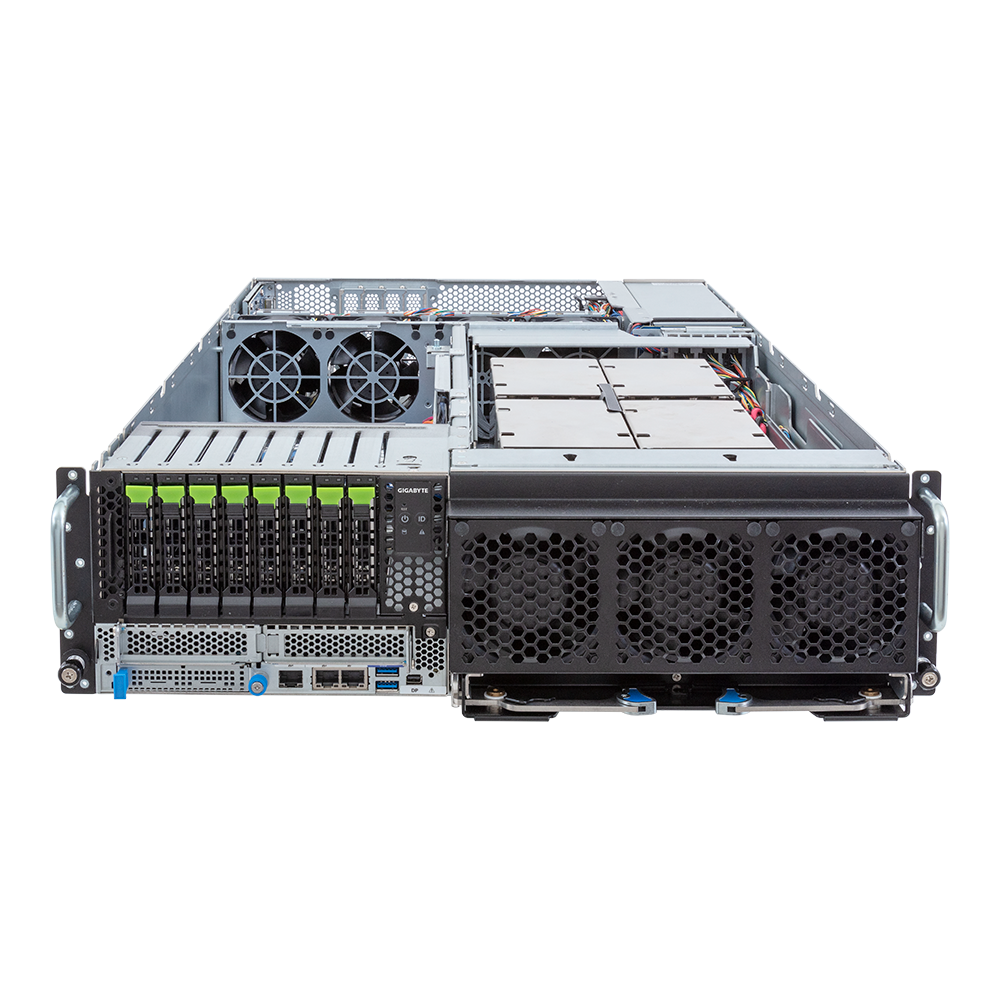

Front I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45 (Intel I350)
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x Mini-DP
2 x RJ45 (Intel I350)
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED

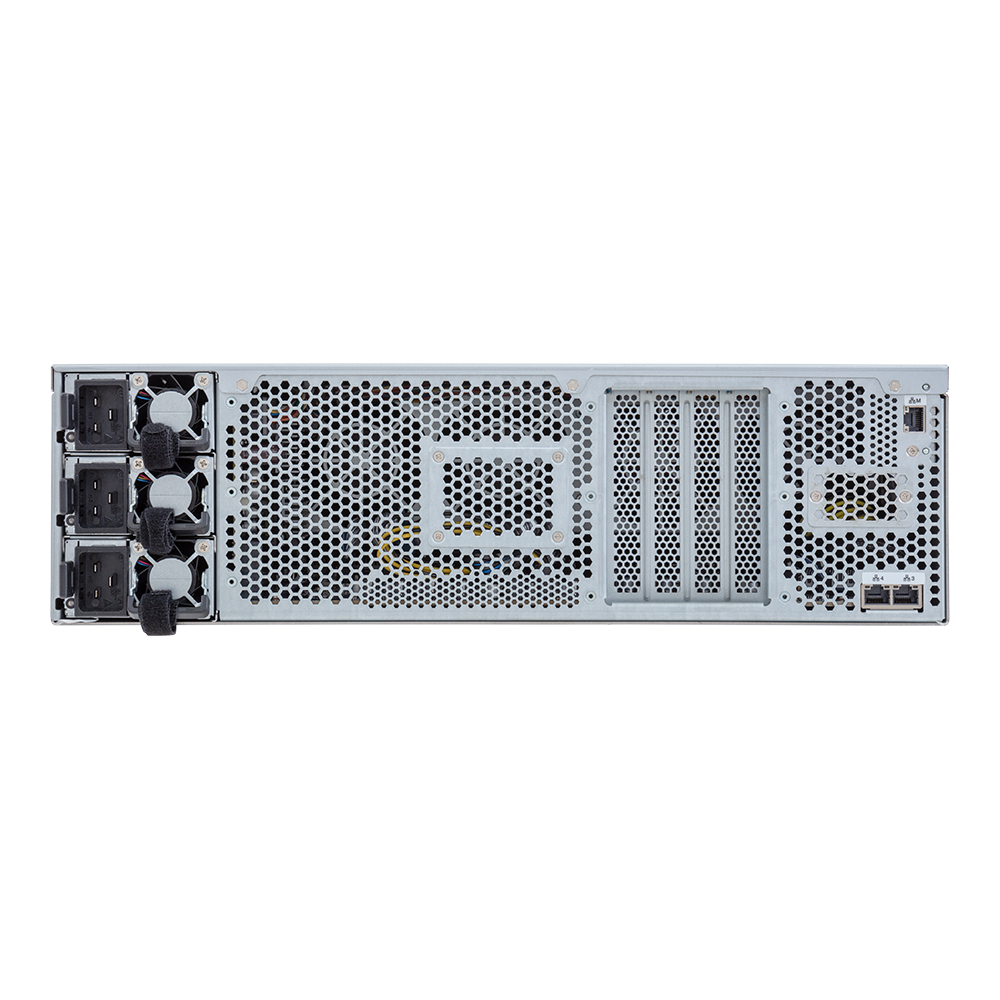

Rear I/O
2 x RJ45 (Broadcom BCM57416)
1 x MLAN
1 x MLAN
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
2+1 3000W 80 PLUS Titanium redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
System Fans
7 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 34.2 kg
Gross Weight: 70.8 kg
Gross Weight: 70.8 kg
Packaging Dimensions
1176 x 782 x 295 mm
Packaging Content
1 x G363-SR0-AAX1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x L-shape Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone w/ Nvidia module (5th/4th Gen): 6NG363SR0DR000ABX1*
- Barebone w/ Nvidia module (4th Gen): 6NG363SR0DR000AAX1*
- Barebone w/ Nvidia module (RoT): 6NG363SR0MR000ABX1*/AAX1*
- Motherboard: 9MS63HD2UR-000
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-353401-M1R
- GPU heatsink: 25ST1-3332G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBP2081: 9CBP2081NR-00
- Fan module: 25ST2-808035-S1R
- Fan module: 25ST2-888030-S1R
- Fan module: 25ST2-888031-S1R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- Riser card - CRSH01R: 9CRSH01RNR-00
- OCP card - CNVC171: 9CNVC171NR-00
- Front I/O board (incl. I350-AM2) - CLBH160: 9CLBH160NR-00
- Rear I/O board (incl. MLAN chip) - CDB66: 9CLBH160NR-00
- PCIe switch board - CPBG901: 9CPBG901NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000A-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG363SR0SR-RMA-A100
- Barebone w/ Nvidia module (4th Gen): 6NG363SR0DR000AAX1*
- Barebone w/ Nvidia module (RoT): 6NG363SR0MR000ABX1*/AAX1*
- Motherboard: 9MS63HD2UR-000
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-353401-M1R
- GPU heatsink: 25ST1-3332G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBP2081: 9CBP2081NR-00
- Fan module: 25ST2-808035-S1R
- Fan module: 25ST2-888030-S1R
- Fan module: 25ST2-888031-S1R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- Riser card - CRSH01R: 9CRSH01RNR-00
- OCP card - CNVC171: 9CNVC171NR-00
- Front I/O board (incl. I350-AM2) - CLBH160: 9CLBH160NR-00
- Rear I/O board (incl. MLAN chip) - CDB66: 9CLBH160NR-00
- PCIe switch board - CPBG901: 9CPBG901NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000A-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG363SR0SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
Intel® Chipset Driver
Version : 10.1.19485.8386
3.81 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
LAN
RAID
RAID
Version
Size
Date
Intel® VROC
Intel® SATA RAID and Utility
Intel® SATA RAID and Utility
Version : 8.5.0.1593
99.21 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
Utility
BIOS
Description
Version
Size
Date
Include AMI SA50248 (CWE-119), and multiple feature updates.
Version : R07
29.41 MB
May 15, 2024
Include INTEL-TA-01036 (CVE-2023-45745/CVE-2023-47855); AMI SA50232 (CVE-2023-45236/CVE-2023-45237), and multiple feature updates.
Version : R06
29.48 MB
Apr 12, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
OS Support List
Version : R12
0.22 MB
Jul 15, 2024
4th Generation Intel® Xeon® Scalable Processors
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
RESOURCES
Articles
Solutions
Others
Back to G363-SR0-AAX1
